Product End of Life (EOL) Notification

THIS PRODUCT IS ON THE PHASE-OUT LIST. BCM is accepting last time buy (LTB) orders through February 26, 2021. At BCM’s discretion, last time by orders may be scheduled to ship through August 31, 2021 with a non-cancellable and non-returnable (NCNR) PO. For a replacement product please consider MX310H, MX310HD, MX370QD, EMX-C246P, RX110H, RX370Q, BC370Q, BC246C, MX310H, ESM-CFH series (for customers requiring Windows 7 support please consider our Intel Skylake series of products). For detail, please CLICK HERE to read the official release.

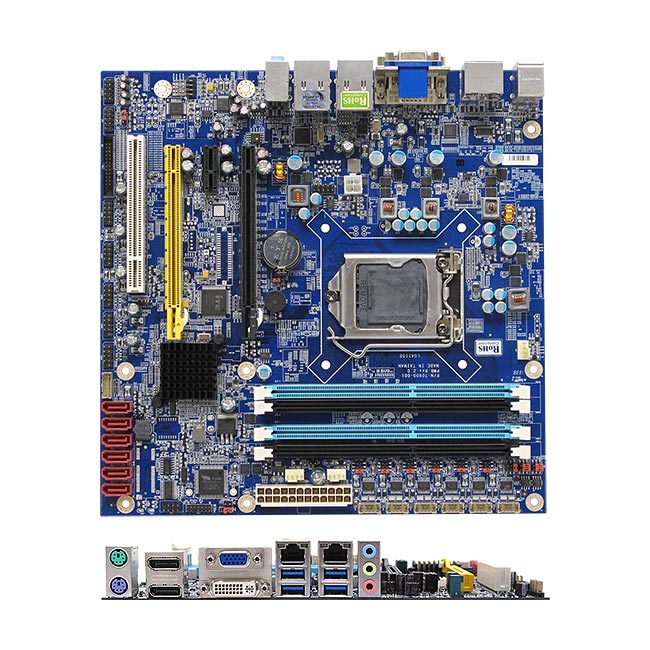

RX87Q Intel Q87 Micro ATX Motherboard Haswell Platform

RX87Q

Intel Q87 Micro ATX Motherboard

  • Intel® Haswell Platform supports 4th generation Intel® Core™ i7/i5/i3 processors
  • Supports 3 onboard independent display
  • Video interfaces: 2 x DisplayPort, DVI and VGA
  • 4 x USB 3.0
  • 10 x USB 2.0
  • 6 x SATA III RAID
  • 6 x COM Ports
  • Intel® Active Management Technology 9.0
  • Supports TPM 1.2

RX87Q industrial uATX motherboard is equipped with Intel® Q87 Chipset and LGA 1150 CPU socket supporting the 4th generation 22nm Intel® Core™ i7/i5/i3 desktop processors, codenamed “Haswell” and “Haswell Refresh”, with integrated HD graphics. The RX87Q features Multi-Monitor support via combinations of two DisplayPort, DVI and VGA outputs allowing the system to run three independent onboard graphics and up to six independent displays by adding an additional graphics card. The board provides rich I/O interfaces including six SATA III (6.0 Gb/s) with RAID, six COM ports, four USB 3.0 and ten USB 2.0 connectors as well as a few legacy connectors, LPT printer port and KB & Mouse, for supporting devices that still require older I/O technologies. The board provides scalable performance and wide range I/O capabilities to fulfill the needs of high-end intelligent computing systems such as medical imaging systems that require high performance, exceptional data transferring capabilities, and extraordinary natively onboard graphics.

SySTIUM® Certified Motherboard-Ready Platform
The RX87Q is SySTIUM® certified Motherboard Ready™ platform compatible with SySTIUM® Model 526E/526EX chassis providing a solid building-block foundation for OEMs and system integrators looking to shave development costs and time-to-market with the 4th generation 22nm Intel® Core™ i7/i5/i3 technology.

System
CPU Socket LGA1150 supports Intel® Haswell Core™ i7, Core™ i5, Core™ i3 and Pentium® Processors up to 95W TDP
System Chipset Intel® Q87 PCH Chipset
System Memory Four DIMM slots support up to 32 GB Dual Channel DDR3 1600 MHz system memory
Audio Realtek® ALC886 HD Audio Codec
Ethernet LAN1: Intel® i217-LM Gigabit Ethernet Controller
LAN2: Intel® i210-AT Gigabit Ethernet Controller
BIOS AMI® 64Mb SPI BIOS
I/O Chip Fintek® F81866AD-I
Expansion 1 x PCI Express x 16
1 x PCI Express x4 (x16 physical slot, yellow)
1 x PCI Express x1
1 x PCI
Watchdog Timer Reset: 1 sec. ~ 255min. and 1sec. or 1min./step
H/W Status Monitor Monitoring System Temperature, Voltage, with Auto Throttling Control
TPM Integrated TPM 1.2
Display
Graphics Engine Intel® Integrated Graphic
Display Interfaces 2 x DisplayPort, 1 x DVI-D, 1 x VGA
Display Capability Supports 3 Independent Onboard Display
External I/O
KB/MS 1 PS/2 Keyboard, 1 PS/2 Mouse
Audio 1 x 3 Jacks Audio
USB 4 x USB 3.0
LAN 2 x RJ45
VGA 1 x DB-15
DVI 1 x DVI-D
DisplpayPort 2 x DisplayPort
Internal I/O
USB 5 x USB 2.0 Connector ( 10 USB Ports)
COM (Serial Port) 6 x RS-232 Headers
SATA 6 x SATA III Connectors (Red)
MIO 1 x LPT, 1 x Front Audio, 1 x Amplifier er, 1 x Front Panel, 1 x 8-bit GPIO, 1 x 4 Pin CPU Fan, 1 x 4 Pin Chassis Fan, 1 x Socket Type CMOS Battery Holder, 2 x LAN Status LED Headers
Mechanical and Environment
Power Type 1 x 24-pin ATX Connector and 1 x 4-pin ATX 12 Connector
Operating Temperature 0 ～ 60°C （32 ～ 140°F）
Storage Temperature -20 ～ 80°C （-4 ～ 176°F）
Operating Humidity 0 ～ 90％ Relative Humidity, Non-condensing
Storage Humidity 0 ～ 90％ Relative Humidity, Non-condensing
Form Factor uATX (Micro ATX)
Dimensions (L) x (W) 9.6" (L) x 9.6" (W)
Weight 1.45 lbs

* All product specifications and product images are subject to change without notice. Last update: 2021/02/16

BCM RX87Q, 4th Gen. Intel® Core™ i7/i5/i3 uATX motherboard, is SySTIUM® certified motherboard-ready platform providing lower cost on regulatory lab certifications enabling quick time-to-market production for system integrators

BCM RX87Q, 4th Gen. Intel® Core™ i7/i5/i3 uATX motherboard, is SySTIUM® certified motherboard-ready platform providing lower cost on regulatory lab certifications enabling quick time-to-market production for system integrators

BCM introduces its RX87Q industrial uATX motherboard which is equipped with Intel® Q87 Chipset and LGA 1150 CPU socket supporting the 4th generation 22nm Intel® Core™ i7/i5/i3 desktop processors, codenamed “Haswell” and “Haswell Refresh”, with integrated HD graphics. The RX87Q features Multi-Monitor support via combinations of two DisplayPort, DVI and VGA outputs allowing the system to run three independent onboard graphics and up to six independent displays by adding an additional graphics card. The board provides rich I/O interfaces including six SATA III (6.0 Gb/s) with RAID, six COM ports, four USB 3.0 and ten USB 2.0 connectors as well as a few legacy connectors, LPT printer port and KB & Mouse, for supporting devices that still require older I/O technologies. The board provides scalable performance and wide range I/O capabilities to fulfill the needs of high-end intelligent computing systems such as medical imaging systems that require high performance, exceptional data transferring capabilities, and extraordinary natively onboard graphics.

BCM’s Haswell Q87 Series motherboards support RAID 0/1/5/10 with Intel® Rapid Storage Technology ideal for server applications or Intelligent systems that require performance intensive data transactions

BCM’s Haswell Q87 Series motherboards support RAID 0/1/5/10 with Intel® Rapid Storage Technology ideal for server applications or Intelligent systems that require performance intensive data transactions

In June this year, BCM introduced three Haswell Q87 series based industrial motherboards (IMB) spanning the top IMB form factors including BC87Q (ATX), RX87Q (uATX) and MX87QD (Mini ITX). Each motherboard is equipped with enterprise desktop Intel® Q87 chipset and LGA1150 socket supporting 4th generation Intel® Core™ i7, i5 and i3 processors. The motherboards are also equipped with multiple high-speed SATA III storage interfaces offering up to 6 Gb/s transfer rate to support next-generation SSD and traditional HDDs. With RAID functionality natively supported by the Intel® Q87 chipset and driven by Intel® Rapid Storage Technology, these motherboards are able to support RAID level 0, 1, 5 and 10 which not only optimizes data transferring performance but also provide failsafe backup protections against disk failure making these motherboards ideal for server applications or any intelligent computing system that handles massive data transactions in 24/7 non-stop operating environments such as transaction processing or data centers and hospital imaging systems.

BCM introduces four Intel® Q87 Haswell platform Series industrial motherboards

BCM introduces four Intel® Q87 Haswell platform Series industrial motherboards supporting the 4th generation Intel® Core™ i7/i5/i3 processors and multi-monitor features for gaming, retail, industrial and medical industries

BCM has introduced four new industrial motherboards based on the 4th generation Intel® Core™ i7/i5/i3 processors, code named Intel® Haswell, based on the Intel® embedded Q87 and H81 chipset available in various form factors including: BC87Q (ATX), RX87Q (uATX), MX87QD (Mini ITX) and MX81H (Mini ITX).

Platform Features The new Q87 Series motherboards come equipped with socket H3 LGA1150 supporting the 4th generation Intel® Core™ i7/i5/i3 22nm process technology with 3D Tri-Gate transistors as well as Pentium® or Celeron® desktop processors with a TDP ranging from 35W to 65W TDP for Mini ITX form factors and 95W TDP for uATX and ATX form factors providing scalable processing power to meet various performance requirements.

Document
Datasheet
Manual
BIOS Version Revision Note Download
V1.60 BIOS Update for Meltdown and Spectra Issue. For P/N: 70903
V1.30 RX87Q BIOS (Intel Security ME Update). For P/N: 70903
V1.20 RX87Q BIOS. For P/N: 70903
Driver Description
Chipset Intel(R) Chipset Device Software
Video Intel(R) Graphics Drivers
Ethernet Intel(R) Network Connections Software
Others Intel(R) Management Engine
  TPM Driver
  Intel(R) Rapid Storage Technology Driver
  Intel(R) USB 3.0 Driver
Date Description Download
02/16/2021 PCN for the RX87Q pertaining to the RX87Q motherboard audio codec.
04/17/2020 PCN for the RX87Q and BC87Q updating the bill of materials to remove the TPM 1.2 (Trusted Platform Module) due to the discontinuance of the part and no compatible replacement component. This change is scheduled to coincide with the 2/26/2021 discontinuance date of both affected products.

Change Notification#: E201401
04/06/2020 End of Life notification for multiple BCM products based on the Intel® Q87 Chipset, Intel® H81Chipset, Intel® C226 Chipset, Intel® QM87 Chipset, and Intel® HM86 Chipset (Haswell Series). In the EOL document you will find important information regarding the BCM model names to be discontinued as well as key last time order dates and last time delivery dates.

EOL Product List: MX87QD BI260-87QD MX81H BI360-81H RX87Q/ RX87Q-TK BC87Q ESM-QM87 Series RZ87Q RZ87Q2 BOX-RZ87QM PM87QES PM87QAS PM87QE PM87QA BOX-MX87QD-TD EMX-Q87R-A1-07R EMX-Q87R-A1R BOX-81H-3DCM (310547-03/ 31-1603) BOX-81H-SGCS 5170. Multi_Product_EOL_Haswell_Series_040320_(002).pdf
08/28/2018 PCN for including a warning insert into each carton in order to comply with California Proposition 65 regulations.
04/24/2018 BIOS change notification addressing the Meltdown and Spectre security issue previous communicated by BCM in a product security bulletin sent out in January of this year  http://www.bcmcom.com/download/PCN/BCM_Product_Security_Bulletin_Meltdown-Spectre_011818.pdf

Please contact your BCM representative with any questions pertaining to this PCN.
11/01/2017 RX87Q LAN firmware PCN to update the LAN firmware to address a known security issue as described in the PCN and published in the Intel® CVE‐2017‐5689 document.
8/30/2017 RX87Q, MX87QD, RX170Q, MX170QD PCN: To address an Intel® security advisory regarding a critical firmware vulnerability in certain systems that utilize Intel® Active Management Technology (AMT), Intel® Standard Manageability (ISM) or Intel® Small Business Technology (SBT). (Documented in Intel CVE-2017-5689).
05/05/2015 BIOS PCN for the RX87Q correcting a PS2 Keyboard function issue and adding SSD detection compatibility for a broader range of SSD types and manufacturers.
09/26/2014 BIOS PCN for the RX87Q to address a possible screen distortion issue when booting to a UEFI environment from a USB key as well as add compatibility with a broader range of PCIe cards
08/05/2014 PCN for the RX87Q micro ATX motherboard.  This is a minor PCB change to correct the line out left and right channels being reversed.
06/25/2014 Notice of Multi-Product BIOS Change for BC87Q, RX87Q, MX87QD and MX81H
01/23/2014 PCN for the BCM RX87Q micro-ATX industrial motherboard pre-releasing the AMI BIOS version for this product.
Model Name Description
RX87Q Intel® Q87 Micro ATX Motherboard
Accessory Included 1 x Dual COM Port Cable with Bracket, 1 x SATA Cable, 1 x I/O Shield
182000000044 2.00mm pitch 11.8” length Parallel cable w/ full height bracket
183000000006 2.00mm pitch 12” length Serial cable
182437200040 2.54mm pitch 14” length Dual port USB cable w/ full height bracket
