This is an OEM Only product.

This product is marked as "OEM Only". OEM products are designed for OEMs with ongoing and consistent order requirements and subject to minimum order quantities. Evaluation units are available without such restrictions. BCM has multiple stocking distributors that may be able to work with OEMs to streamline product deliveries. Please contact BCMSales@bcmcom.com Sales for more information.

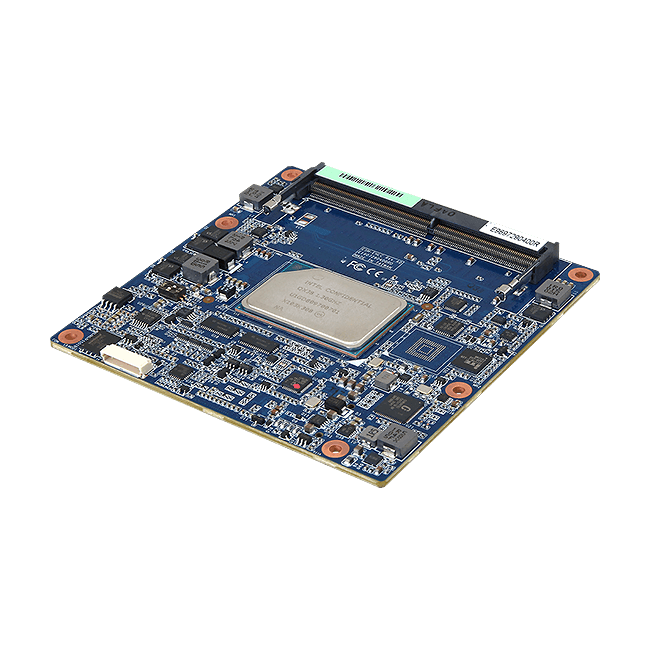

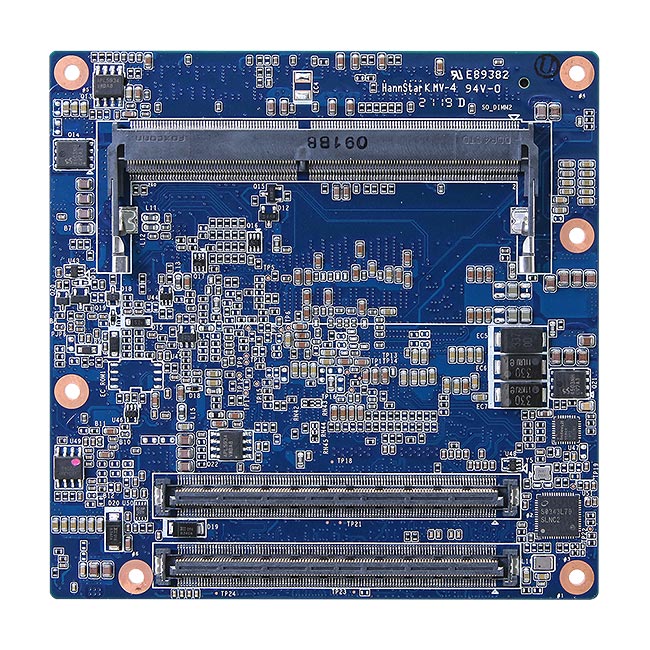

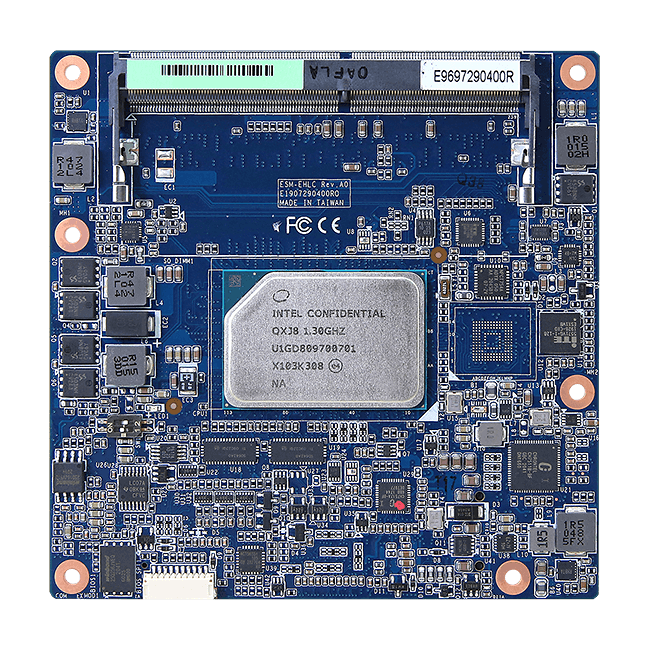

ESM-EHLC Wide Temp ESM-EHLC Wide Temp ESM-EHLC

ESM-EHLC

Intel® Atom® 6413E/6425RE (Elkhart Lake) Quad-core SoC BGA Type 6 COM Express Module

  • Intel® Atom™ 6413E/6425RE Quad-core 1.5/1.9GHz SoC BGA Processor Onboard
  • 2 x SODIMM slots support DDR4 3200 SDRAM up to 32GB, select SKUs support In-Band ECC memory protection
  • Supports 3 Independent Displays via DP 1.4, HDMI2.0b/1.4b, Dual Channel LVDS, VGA, eDP1.3 (Optional)
  • Intel® I225-IT Ethernet Controller, 2.5GbE
  • 8 x USB 2.0, 4 x USB 3.2 Gen2x1, 3 x Gen3 PCIe x1
  • 2 x SATA (6.0GB/s), 8-bit GPIO
  • HD Audio Interface
  • +9~+19V Wide Range Power Input
  • Type 6 Rev 3.0  Pin-out
  • Compact Size: 95x95mm
  • Optional TPM2.0
  • Optional eMMC 5.1 up to 128GB
System
CPU Intel® Atom® 6413E 4-Core 1.5 GHz/ 9W TDP onboard
Intel® Atom® 6425RE 4-Core 1.9 GHz/ 12W TDP onboard
Chipset Intel® Elkhart Lake SoC integrated
System Memory 2 x 260-pin SODIMM slots support DDR4 3200 SDRAM up to 32GB, select SKU support In-Band ECC memory protection
Audio Intel® HD Audio integrated in SoC
Ethernet 1 x Intel® I225-IT Ethernet Controller
1 x 10BASE-TE/100BASE-TX/1000BASE-T/2500BASE-T compatible Gigabit, above 70°C Tc, the recommended speed is 1G
BIOS AMI uEFI BIOS, 256 Mbit SPI Flash ROM
I/O Chip EC ITE IT5571
Expansion Suppoprts 3 x Gen3 PCIe x1 (8.0 GT/s)
Storage eMMC 5.1 up to 128GB (Optional)
Watchdog Timer H/W Reset, 1sec. ~ 65535sec. and 1sec./step
H/W Status Monitor Monitoring System Temperature, Voltage and FAN Status with Auto Throttling Control
TPM Optional TPM 2.0
OS Support Windows* 10 IoT Enterprise (64-bit)
Linux
Display
Chipset Intel® Elkhart Lake SoC Processor integrated Gen11 LP graphics
Resolution HDMI 1.4b/2.0b: 4096x2160 @60Hz
DP 1.4: 4096x2160 @60Hz
*Per Intel design guide, Redriver in the carrier board is needed for fine-tuning the DP 1.4 signal)
eDP 1.3b (Optional): 4096x2160 @60Hz (Only support 4 Lanes 2560x1440 & 2 Lanes 1920x1080)
LVDS (via eDP-to-LVDS): 1920x1080 @60Hz
VGA (via DP-to-VGA): 1920x1080 @60Hz
Multiple Display Supports 3 Independent Displays
I/O
USB Supports 8 x USB 2.0 and 4 x USB 3.2 Gen 2x1 (10Gbps)
COM Supports 2 x COM Ports (RX/TX only)
SATA Supports 2 x SATA III (6.0Gb/s)
DIO Supports 1 x 8-bit GPIO
Others Supports 1 x SMBus
1x LPC (via eSPI-to-LPC bridge), or optional 1 x eSPI (Only support 20MHz)
1 x I2C
Mechanical and Environment
Power Requirement +9~ +19V
ACPI Single power ATX Support S0, S4, S5
ACPI 6.0a Compliant
Power Mode AT/ATX
Operating Temperature Standard Temp: 0°C ~ 60°C with 0.2m/s air flow
Conditional Extended Temp: -40°C ~ 85°C with 0.5m/s air flow.
Note: Above 70°C Tc, the recommended ethernet speed is 1G.
Storage Temperature -40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Certification Information CE
FCC Class B
Form Factor Compact COM Express Module
Weight 0.44lbs (0.2kg)
Dimensions 3.74" x 3.74" (95mm x 95mm)

* All product specifications and product images are subject to change without notice. Last update: 12/27/2022

Document
Datasheet
User's Manual
Model Name Description
ESM-EHLC-X13E COMe Intel Atom® x6413E 1.5GHz 4 Core 2 x DDR4 SODIMM, eDP/LVDS, VGA, DP/HDMI, 1 x 2.5Gbps LAN, 95*95 mm Type 6
ESM-EHLC-X25RE COMe Intel Atom® x6425RE 4 Core 1.9GHz, 2 x DDR4 SODIMM, eDP/LVDS, VGA, DP/HDMI, 1 x 2.5Gbps LAN, 95*95 mm Type 6
EEV-EX16 Eval Carrier Board for ESM-EHLC/TGH in Micro ATX form factor
ACC-ESMEHLC-SD-1R CPU Heatspreader for ESM-EHLC H=11mm. For Standard Temp CPU
ACC-ESMEHLC-SD-2R CPU Heatspreader for ESM-EHLC H=11mm. For Wide Temp CPU
ACC-ESMEHLC-SK-1R CPU Heatsink for ESM-EHLC W/O Fan H=34mm. For Stantard Temp CPU
ACC-ESMEHLC-CL-1R CPU Cooler for ESM-EHLC with Fan H=60mm. For Wide Temp CPU
