BI360-610H Intel H610E mini-ITX Barebone Industrial Computer

BI360-610H

Intel® H610E Mini-ITX Barebone Computer Supports 12th/13th Gen Intel® Raptor Lake Intel® Core™ i9/i7/i5/i3 Processor

  • Motherboard: MX610H Mini-ITX Motherboard
  • LGA 1700 socket supports 12th Gen Intel® Alder Lake/13th Gen Intel® Raptor Lake Intel® Core™ i9/i7/i5/i3 Processor
  • Intel® Integrated UHD Graphic with Xe Architecture (CPU Dependent)
  • Intel® H610E PCH
  • 2 x SODIMM sockets support Dual Channel DDR5 4800MHz up to 64GB
  • Gen 4 PCIe x16, M.2 M-Key 2242/2280 NVMe, M.2 E-Key 2230 with CNVi Support
  • Display Interface: 1 x HDMI, 2 x DP++
  • 4 x USB 3.2 Gen 1x1 Ports, 2 x USB 2.0 Type A
  • 2 x COM, 3 x SATA III
  • Optional additional 2 x COM, Optional 2 x USB 2.0/3.0
  • ATX Power Input
  • TPM 2.0
Related Motherboard Inside
System
CPU LGA 1700 socket supports 12th Gen Intel® Alder Lake/13th Gen Intel® Raptor Lake Intel® Core™ i9/i7/i5/i3, Pentium, Celeron Processors
System Chipset Intel® H610E PCH
BIOS AMI uEFI BIOS, 256Mb SPI Flash ROM
System Memory 2 x SODIMM sockets support Dual Channel DDR5 4800MHz up to 64GB
Audio Codec Realtek HD Audio support 7.1 channel sound playback
Ethernet LAN 1: Intel® I219-V Ethernet Controller
LAN 2: Intel® I225-LM Ethernet Controller
Expansion 1 x Gen 4 PCIe x16
1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III)
1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 + USB 2.0)
System Fan 1 x 80mm
System Indicator 1 x Power LED, 1 x HDD LED, 1 x Momentary Switch
Storage 1 x 2.5” SSD/HDD Drive Bay
TPM Infineon® TPM 2.0
Supported OS Windows 10, Linux
Display
Chipset Intel® Integrated UHD Graphic with Xe Architecture (CPU Dependent)
Resolution 1 x HDMI 1.4b 4K@60Hz
1 x Dual Mode DisplayPort 1.4a 4K@60Hz
18/24-bits Dual Channel LVDS, optional eDP
Multi-Display Supports 3 Independent Displays
External I/O - Front
USB 2 x USB 2.0 or USB 3.0
Power 1 x Power Switch

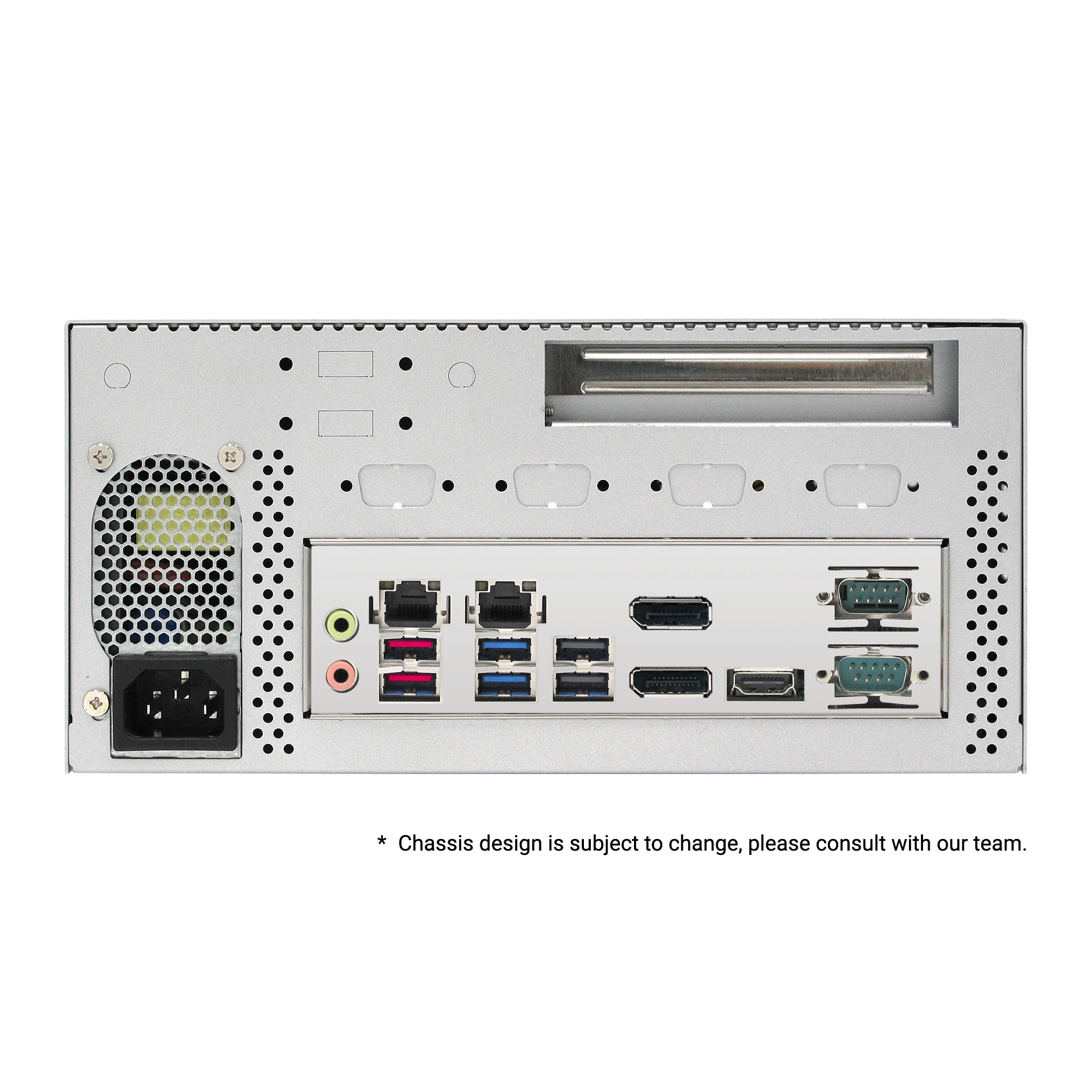

External I/O - Rear
Display 1 x HDMI
2 x DP++
USB 4 x USB 3.2 Gen 1x1 Ports
2 x USB 2.0 Type A
Optional: Additional 2 x USB 3.2 Gen 1x1 or 2 x USB 2.0
LAN 2 x RJ45
COM Port 2 x RS-232/422/485
Optional: Additional 2 x RS-232
Audio Line-out, Mic-in
Mechanical and Environment
Power Type ATX Power Input
Power Adapter Input: 100-240V, 4-2A, 60-50Hz
Output: 300W
Operating Temperature 0 ～ 40°C （32 ～ 104°F）
Storage Temperature -20 ～ 60°C （-4 ～ 140°F）
Exterior Color Silver
Dimensions 8.00” L x 9.335” W x 4.493” H (203.20mm L x 237.11mm W x 114.13mm H)
Certification Information CE, FCC Class A
Weight 7.50 lbs

* All product specifications and product images are subject to change without notice. Last update: 05/16/2023

Document
Datasheet
Driver Description
Note The BI360-610H is equipped with the MX610H mini-ITX motherboard inside. Please check MX610H product page for drivers and manual.
Date Description Download
Note The BI360-610H is equipped with the MX610H Mini-ITX motherboard inside. Please check MX610H product page for Product Change Notice.
Model Name Description
BI360-610H Intel® H610E Barebone Computer. CPU, memory and HDD are not included.
