Fanless & Ready for the Edge: Meet BCM’s All-in-One NUC-AR3588RK System Powered by Rockchip® RK3588
As edge AI and multimedia applications rapidly expand, system developers are seeking powerful, compact, and easy-to-deploy hardware. BCM’s new NUC-AR3588RKembedded system meets that need—with a fanless design, triple display support, integrated HDMI input, and the high-performance Rockchip® RK3588 SoC built right in.
💡 Why It Matters:
The NUC-AR3588RK is engineered to solve multiple embedded challenges:
- Delivering AI inference without a discrete GPU
- Handling 4K multimedia workloads
- Supporting multi-screen control and interaction
- Integrating quickly into space-constrained or industrial environments
Whether for smart retail, edge computing, digital signage, or industrial automation, this system offers a ready-to-deploy solution that simplifies integration while maximizing performance.
🔍 Highlights & Applications
🔹Powered by Rockchip® RK3588 – A Next-Gen ARM Platform
The Rockchip® RK3588advanced SoC features an 8-core CPU (4x Cortex-A76 + 4x Cortex-A55), Mali-G610 MP4 GPU, and a built-in 6 TOPS NPU for edge AI acceleration. It’s capable of 4K/8K multimedia processing and real-time inference—ideal for camera-based vision, object detection, or content streaming.
🎯 Applications: AI vision, AV systems, robotics, kiosks, surveillance
🧠 Onboard 6 TOPS NPU – Efficient AI at the Edge
The Rockchip RK3588’s integrated Neural Processing Unit delivers up to 6 TOPS, enabling low-latency, power-efficient AI inference on edge devices—without needing a discrete accelerator.
This NPU is optimized for:
- Image classification and object detection
- Speech recognition and wake-word detection
- Natural language understanding and lightweight NLP (Natural language processing)
- Real-time data processing with minimal external dependencies
🎯 While 6 TOPS may be considered entry-level for AI, it’s well-matched to the needs of embedded vision, automation, and intelligent edge computing, where power, space, and latency matter most.
🔍 HDMI Input – Rare Feature, Real Use
Unlike most embedded platforms, the NUC-AR3588RK includes an HDMI input—enabling video capture from external devices such as media players, cameras, or PCs. Use it for overlay, live switching, or AI-based video analysis.
🎯 Use cases: Interactive signage, live retail display, AV conference terminals
🔍 All-in-One Integration – CPU, RAM & Storage Included
With 8GB LPDDR4 RAM and 64GB eMMC onboard, this system is truly plug-and-play. No need to source or configure extra components—ideal for scaling OEM designs efficiently.

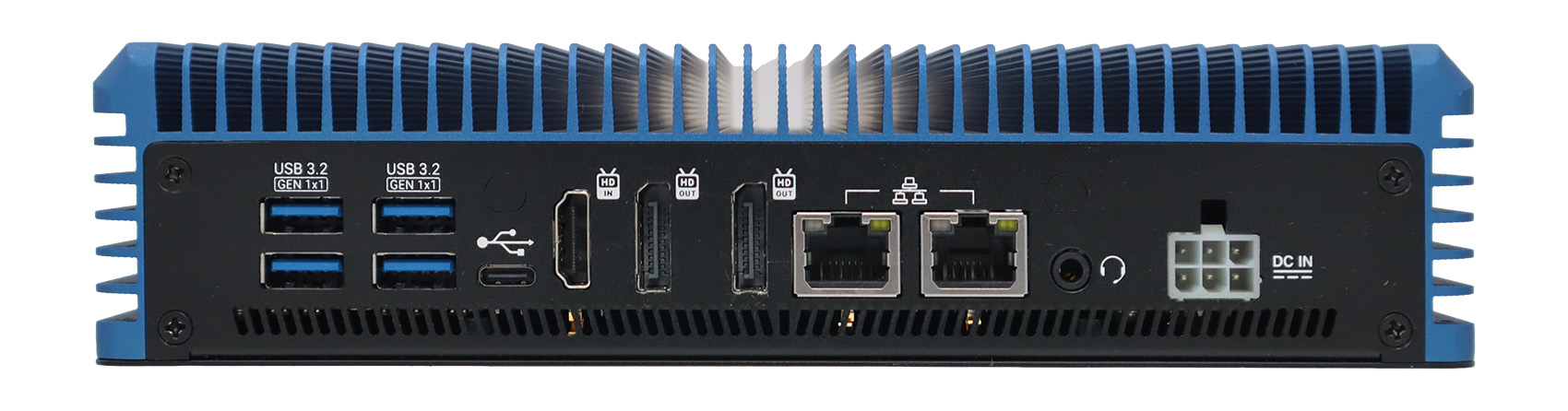

🔍 Triple Display & Peripheral-Rich I/O
- 2 x DisplayPort (4K@60Hz) + HDMI Input
- 4 x USB 3.2 + 1 x USB Type-C OTG
- Dual GbE LAN, M.2 for NVMe, M.2 E-Key, MicroSD
🎯Designed for high-I/O edge workloads such as vision AI, automation controllers, or media hubs.
🔍 Industrial-Grade Design – Fanless, Secure, and Mount-Ready
- Fanless aluminum chassis for silent operation
- 6-pin terminal block DC-in for rugged deployments
- VESA mounting support + optional DIN rail kit
🔧 Built for Developers. Designed for Deployment.
BCM’s NUC-AR3588RK is more than a dev board—it's a complete, production-ready embedded system designed for OEMs. From software development to field integration, it minimizes friction and shortens time-to-market.
📩 Ready to Evaluate?
This system is now available for OEM sampling and custom integration projects.
