HPS-RX880W2A
2U Rackmount Barebone Computer, RX880W inside supports Intel® Core™ Ultra processors (Series 2) 5/7/9 up to 125W TDP
- Motherboard inside: RX880W Micro ATX supports Intel® Core™ Ultra processors (Series 2)
- 2U Rackmount Chassis, compatible with EIA-RS310D standard 19" cabinets
- 4 x DIMMs support Dual Channel DDR5 5600MHz up to 192GB
- ECC UDIMM support (CPU dependent)
- Dual LAN, 2 x Intel® Ethernet Controller I226-LM (2.5GbE)
- 2 x DisplayPort++
- 10 x USB 3.2 Type-A, 2 x USB Type C Thunderbolt 4.0
- 2 x M.2 M-Key, 1 x M.2 E-Key
- Low profile PCIe slots
- Optional drive bay: 3 x 2.5” external, 4 x 3.5” internal
- 500W, 2U redundant 550W Power Supply
Motherboard Inside

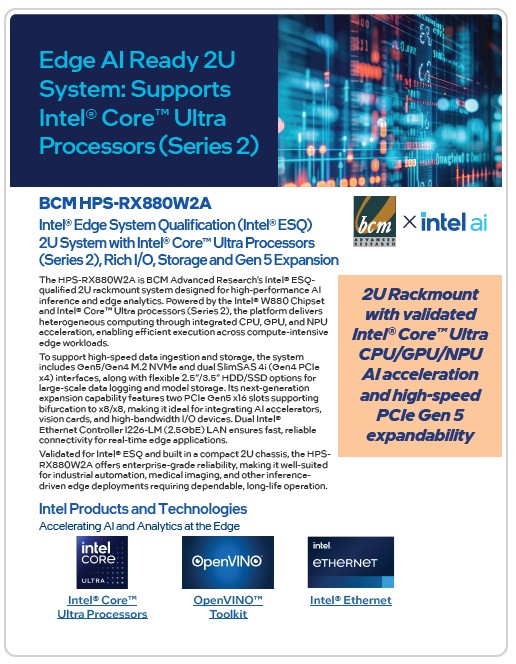

HPS-RX880W2A_Intel_Edge_AI_Showcase_2025
The BCM HPS-RX880W2A is featured in Intel’s Edge AI Partner Showcase, highlighting edge AI platforms built on Intel® technologies and designed for real-world deployment.
This recognition reflects the system’s balanced design—combining a compact 2U rackmount form factor, high-bandwidth expansion, and scalable performance for data-intensive edge AI workloads.
Explore the HPS-RX880W2A on Intel Solution Hub →
Industrial 2U Edge AI Platform: Introducing the BCM HPS-RX880W2A
The HPS-RX880W2A is a compact 2U rackmount system engineered to deliver next-generation AI and analytics right where data is created—at the edge. Built on a Micro ATX platform, this system integrates Intel® Core™ Ultra processors (Series 2) to provide the scalable computing power essential for modern, high-stakes industrial deployments.
High-Performance Compact 2U Rackmount Edge Workstation
The RX880W Micro-ATX motherboard, powered by Intel® Core™ Ultra Series 2 (Arrow Lake-S) processors, delivers next-generation hybrid computing performance — combining high-efficiency and high-performance cores, integrated NPU for AI acceleration, and PCIe Gen5 connectivity.
When housed in a 2U rackmount chassis, it becomes a space-efficient yet powerful edge workstation for industrial, AI, and control applications.
Full Utilization of RX880W’s I/O Capability and Rich Storage
- Low profile PCIe slots supports Gen5 PCIe x16 or x8 Bifurcated, and/or Gen4 PCIe x4 cards
- M.2 NVMe (Gen4/Gen5) and SlimSAS for high-speed storage
- Dual 2.5GbE LAN and multiple USB 3.2 ports
