NUC-AR3588RK Sampling Now

Fanless Embedded System with Rockchip® RK3588 SoC Cortex-A76 & Cortex-A55 Quad Core Onboard

  • Compact and Fanless Design
  • Rockchip® RK3588 SoC
  • Quad Core Cortex-A76 & Quad Core Cortex-A55
  • 8GB LPDDR4 Memory Onboard
  • 64GB eMMC Onboard
  • Mali G610 MP4 Integrated Graphic
  • 2 x DisplayPort 1.3 4K@60Hz
  • 1 x HDMI Input
  • USB Type C OTG
  • 4 x USB 3.1, 2 x USB 2.0
  • Dual LAN Ports
  • 2 x SMA Jacks
  • 12V-24V DC-in, Locking Barrel Type DC Jack
  • 100mm x 100mm VESA Mount Integrated

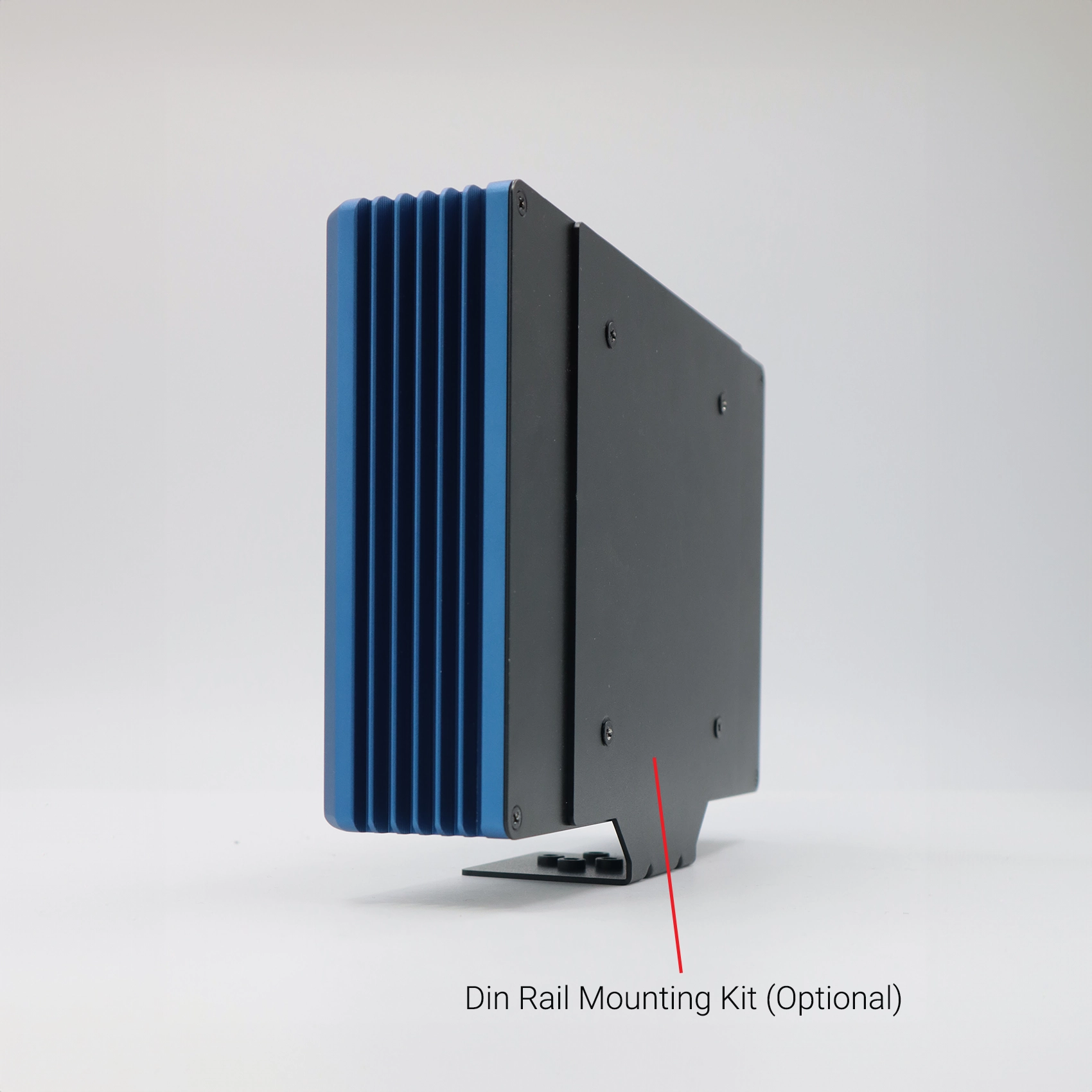

  • Din Rail Mounting Kit (Optional)
Related Products

System
Motherboard AR3588RK
CPU Rockchip® RK3588 SoC
Quad Core Cortex-A76 & Quad Core Cortex-A55
System Memory 8GB LPDDR4 Memory Onboard
Display Mali G610 MP4 Integrated Graphic
Vulkan 1.2, OpenGL ES 3.2, OpenCL 2.2, 4K 60fps Encoding, 4K 90fps Decoding, HEVC/H.264
1 x HDMI Input up to 4k 60Hz
2 x DisplayPort 1.3 4K@60Hz
Ethernet 1 x Realtek® RTL8211F
1 x Realtek® RTL8111H
Audio HD Audio Codec
Expansion 1 x M.2 M-Key 2280 NVMe (PCIe Gen3 x4 Singal)
1 x M.2 E-Key 2230 (PCIe x1 + USB 2.0 Signal)
1 x MicroSD Socket
Storage 64GB eMMC Onboard
System Fan Fanless
OS Support Linux

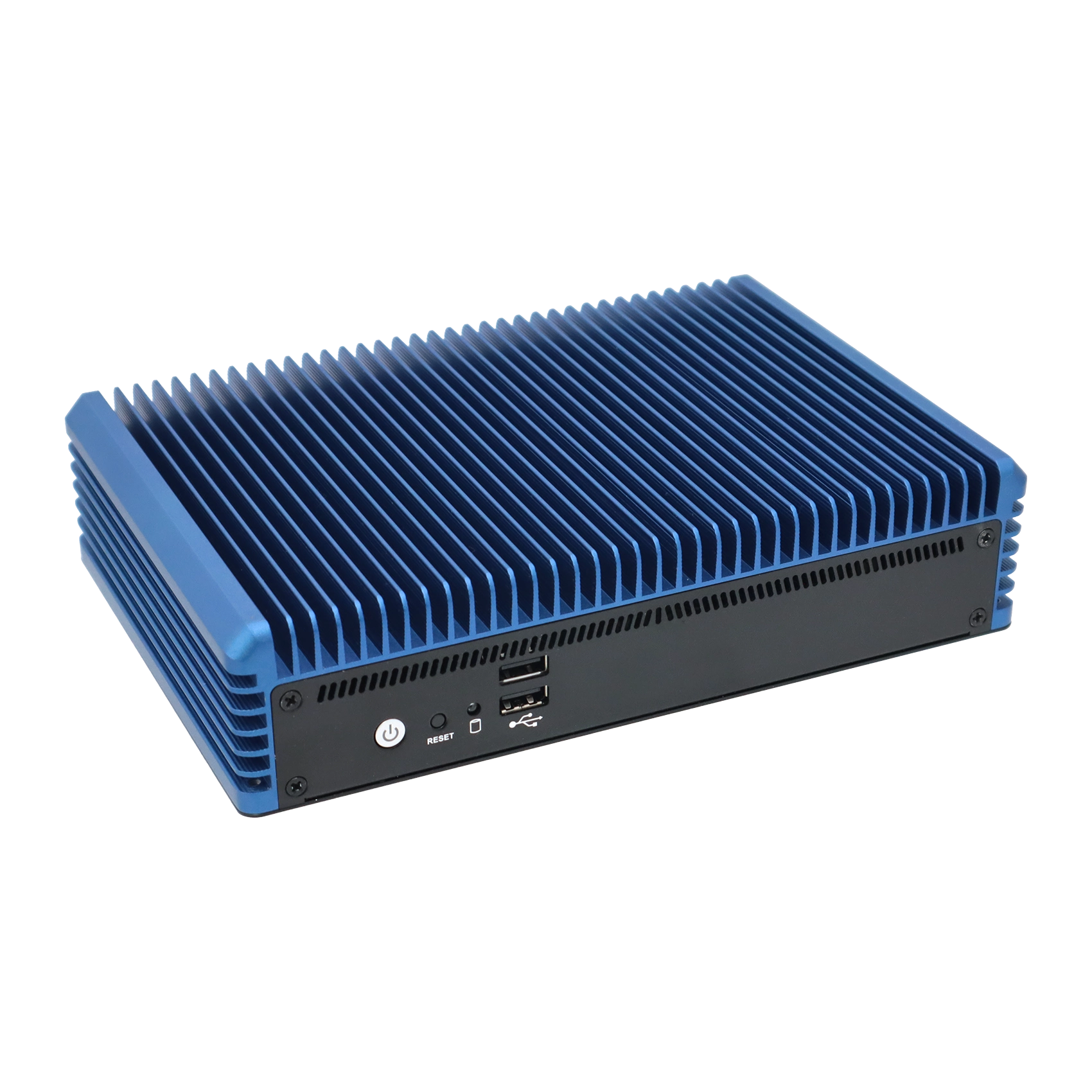

I/O - Front
USB 2 x USB 2.0
Power 1 x Power Button
Reset 1 x Reset Switch
LED 1 x HDD LED

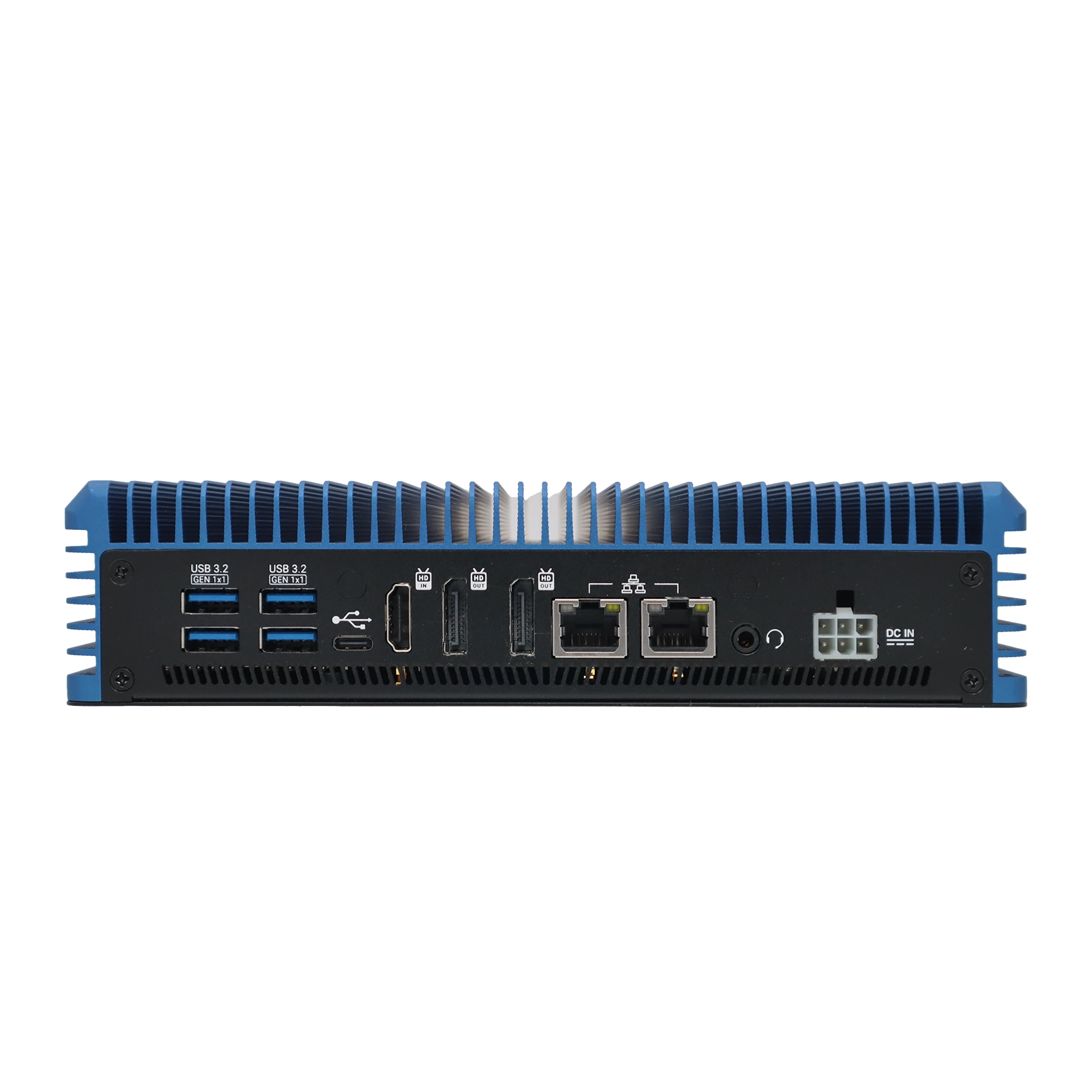

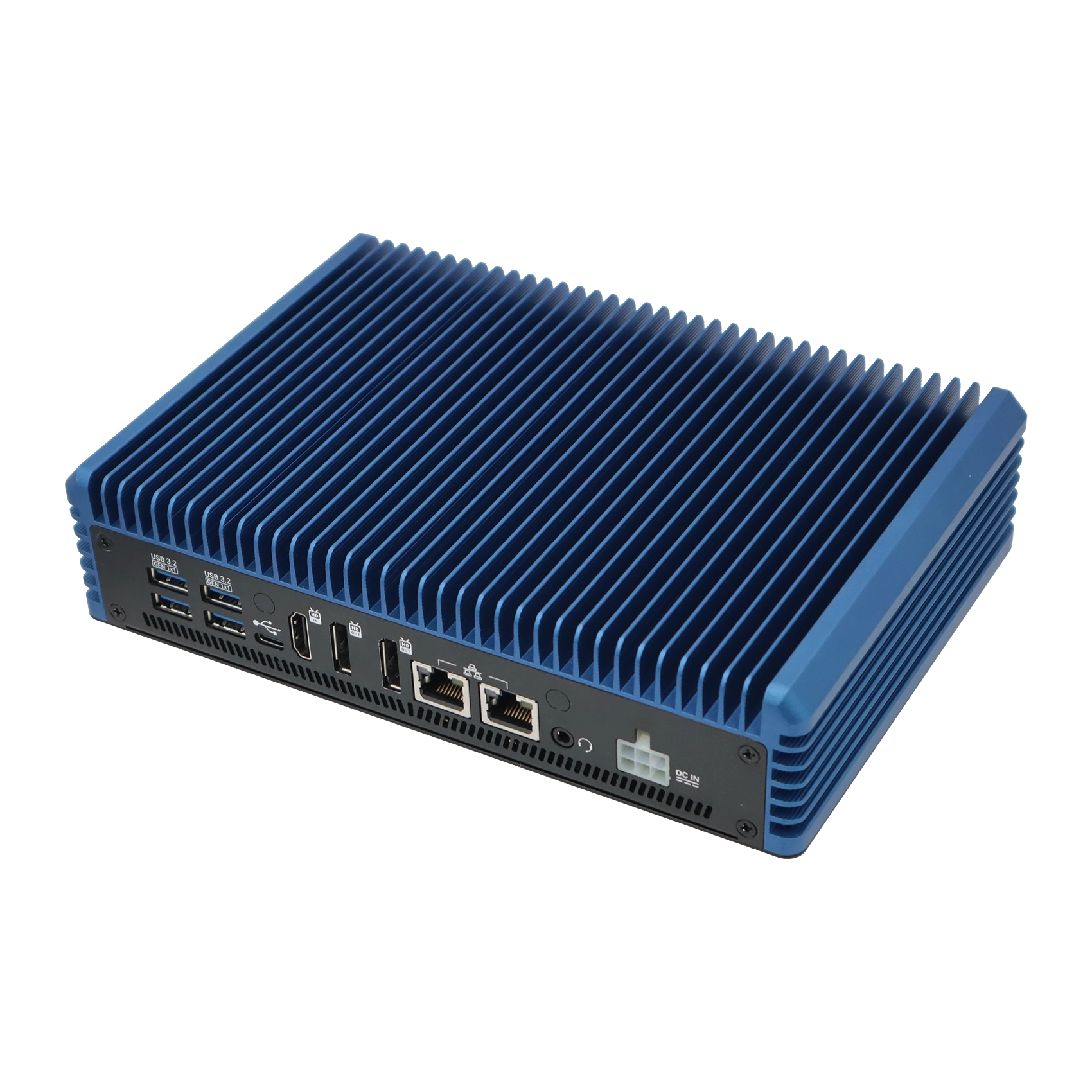

I/O - Rear
Display 2 x DisplayPort
1 x HDMI Input
USB 4 x USB 3.2 Gen1x1Type A
1 x USB 2.0 Type C OTG
LAN 2 x RJ45
Audio 1 x Line-out
DC 1 x 6-Pin DC-in Connector
SMA 2 x Knockout for SMA Connectors
Mechanical and Environment
Power Type 12V-24V Wide Range DC-In
Operating Temperature 0° ~ 50°C (32° ~ 122°F)
Storage Temperature -20° C ~ 75° C (-14°F ~ 167°F)
Operating Humidity 5% ~ 85% Relative Humidity, Non-condensing
Cooling Fanless through Aluminum Fin
Mounting 100mm x 100mm VESA Mount Integrated
Din Rail Mounting Kit (Optional)
Certification Information CE, FCC Class B, RoHS, REACH, Conflict Mineral, UL Compliance (Designed to Comply Only)
Dimensions 8.50" x 5.75" x 1.96"
Weight approx 4 lbs (1.8 kgs)

* All product specifications and product images are subject to change without notice. Last update: 05/01/2025

Document
Datasheet
BIOS Description
Note This product is equipped with the AR3588RK ARM motherboard inside. Please check AR3588RK product page for BIOS.
Driver Description
Note This product is equipped with the AR3588RK ARM motherboard inside. Please check AR3588RK product page for drivers and manual.
Date Description Download
Note This product is equipped with the AR3588RK ARM motherboard inside. Please check AR3588RK product page for Product Change Notice.
Model Name Description
NUC-AR3588RK Fanless Compact Embedded System, Rockchip® RK3588 SoC Cortex-A76 & Cortex-A55 Quad Core Onboard
