OFT for Video Conferencing System Console
10.1 inch flat touch screen, supports Win, Android and Linux OS. Fanless design, quiet operation. Custom enclosure design, easy mounting integration, faster time-to-market solution.

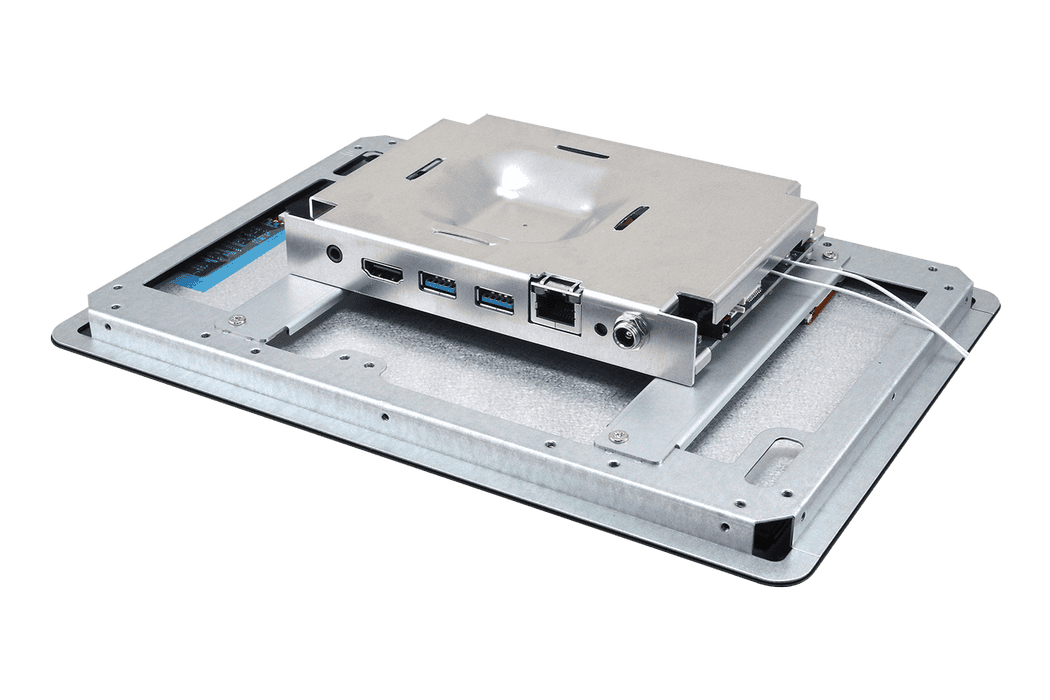

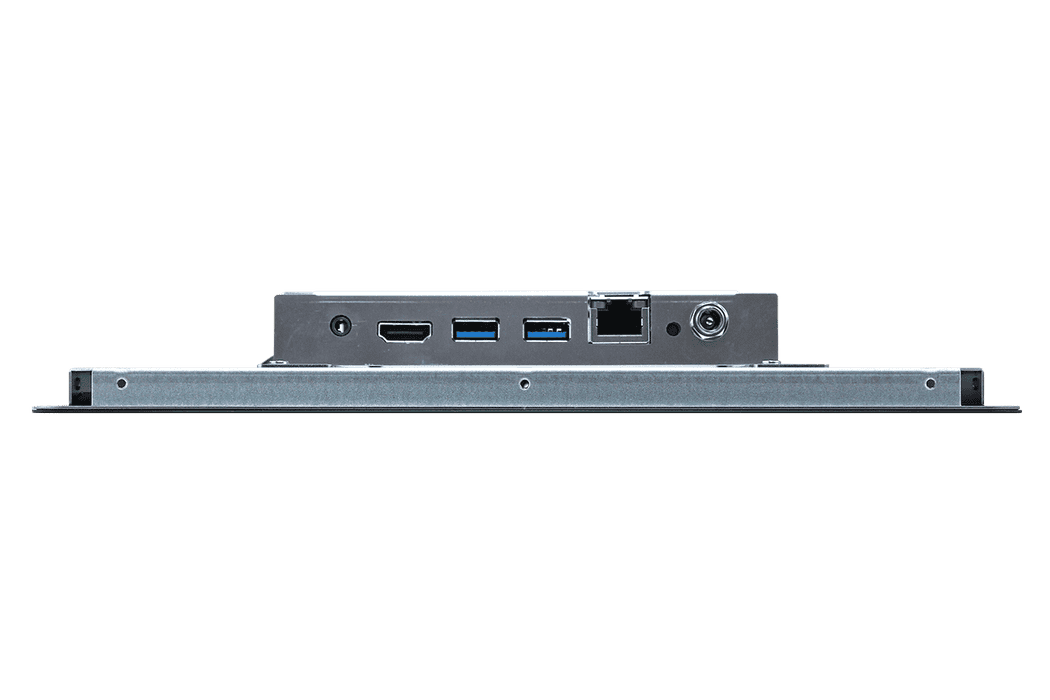

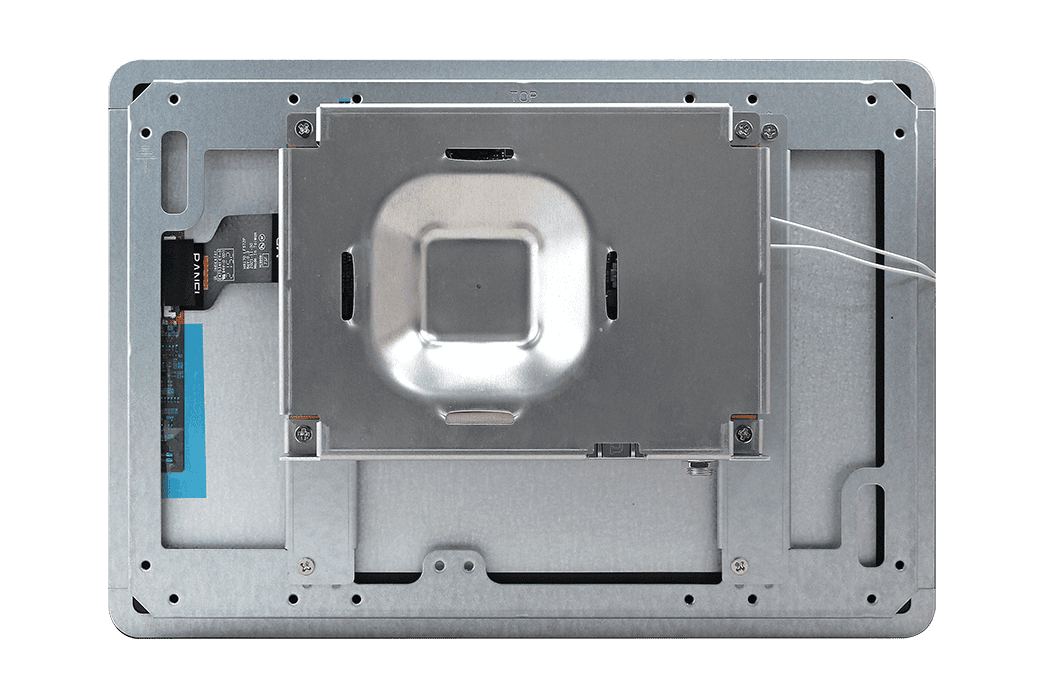

OFT-10WR2
10.1" Open Frame Tablet, Rockchip RK3568 ARM Quad-core Cortex-A55 CPU Onboard
- 10.1" 800 x 1280 Open Frame Table with PCAP touch
- Rockchip RK3568 ARM Quad-core Cortex-A55 CPU onboard, up to 2.0GHz
- 2GB DDR4 Onboard
- 32GB eMMC
- Fanless operation from 0°C ~ 40°C
- DC 12V~24V
- 1 x HDMI 1.4 Out, 2 x USB 3.0 Type A, 1 x LAN port, 1 x Headphone Jack
- 1 x M.2 3042 B-Key for Wi-Fi/BT module
- 1 x microSD card slot
- Supports Android 11, Debian 11
Slim and Touch Interface
Rockchip RK3568 quad-core processor with integrated GPU and NPU onboard. Optimized for tablet computing. High performance with cost effective solution. Plug-in and play. Slim, lightweight, and fanless operation design.

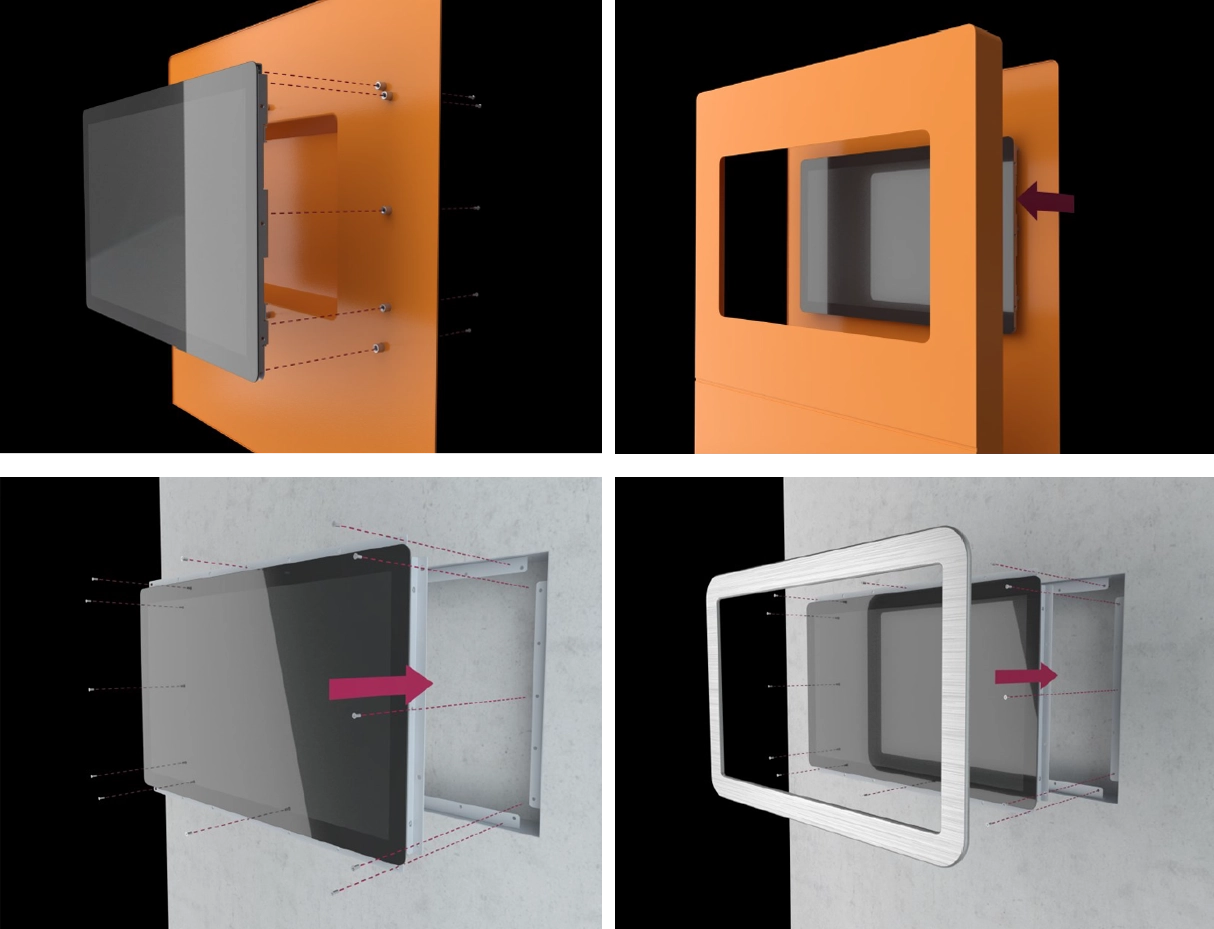

Easy Mounting Integration
A faster Time-to-Market solution for almost all types of applications that requires touch screen, CPU, memory, storage in one unit. Panel mount or wall mount speed up enclosure integration just in a few steps. If a back cover is required, our ODM services is availabe. Please contact BCMSales@bcmcom.com for more information.
7"/10.1" OFT for Automated Vending Machines
Company A develops commercial coffee vending solutions. They are modernizing and revitalizing their system by replacing their traditional mechanical interface and single color display with a digital touch screen. The new machine is expected to accommodate a wider range of product options and higher value specialty drinks, both hot and iced, in addition to the typical coffee or cocoa, strong or light, sugar or cream, merchandise selections.
These new vending machines will be placed in public areas such as work place break rooms, public cafeterias, auto dealer waiting rooms, hotel lobbies, shopping centers, train stations, airports, and other public venues. This next generation automated vending machine offers customers vivid images of the various product options along with a user-friendly PCAP touch interface similar to the customers tablets or smartphones making purchases a simple and pleasant experience.
For the vendor, adding this technology to their machines may help to expand same-store sales by delivering meaningful and attractive product information and providing a platform for delivering promotional content on the screens.
7"/10.1" OFT for Next Gen Beverage Dispenser
The next generation beverage dispenser in restaurant or fast food stores implemented with 7 or 10 inch touch screen panel computer provide dine in consumers or dispenser operators with new user experiences.
The OFT-10WR2 open frame tablet is a all-in-one deployment-ready falness panel computer built-in with Rockchip RK3568 quad core processor. It is also equipped with onboard memory as well as PCAP touch. Wi-Fi and Bluetooth are optional. All these features enable beverage dispenser suppliers easier implementation and shorten product development time and cost.

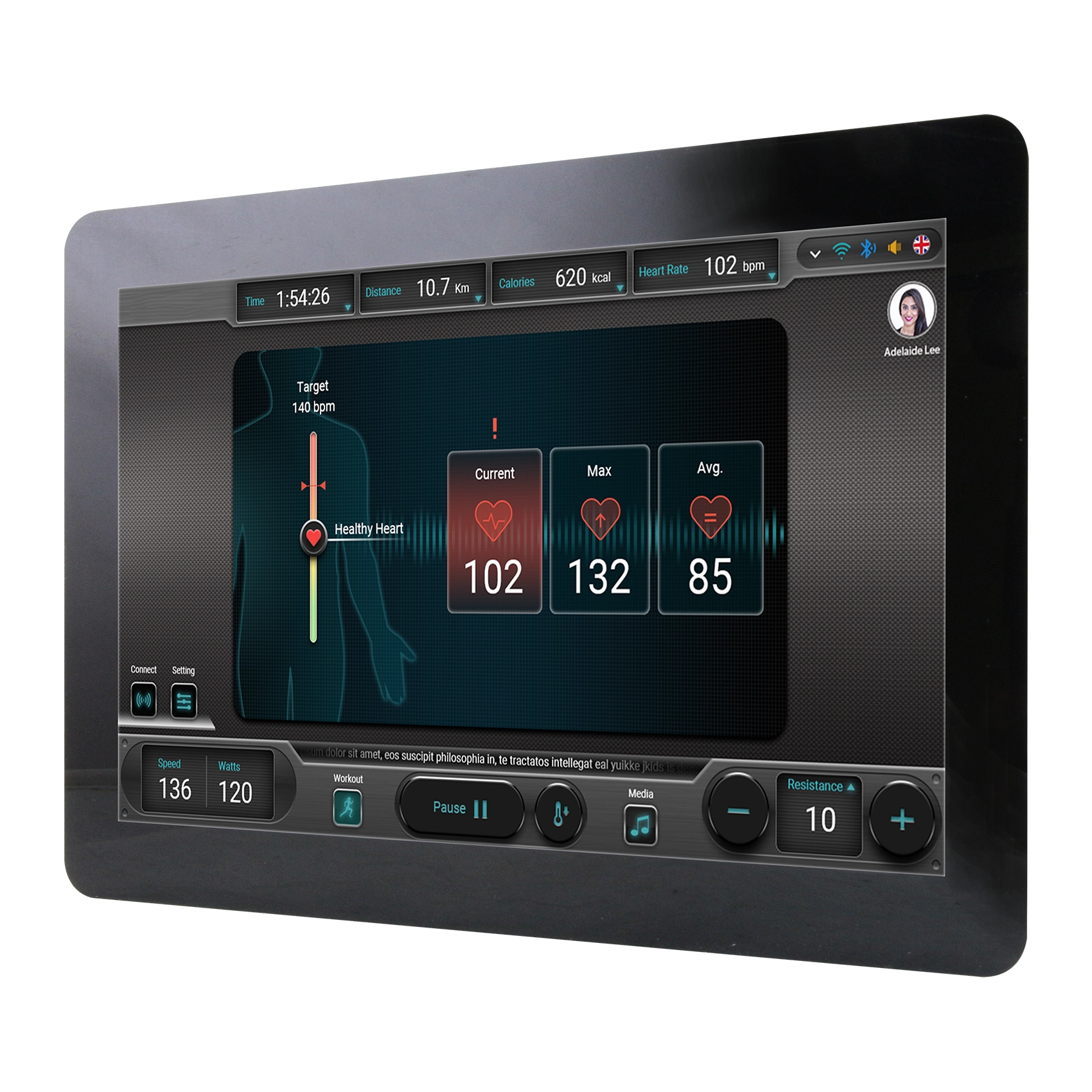

OFT for Medical Analysis Devices
7/10 inch flat screen with PCAP touch. Fanless design, quiet operation. Supports Win, Android and Linux OS. Custom enclosure design. DC-in power.
OFT for Smart Office/Building Control Console
7/10 inch flat screen with PCAP touch. Fanless design, quiet operation. Easy mounting integration, low power consumption, easy software integration. Capabilities of adding camera and speakers.
