NUC-TGU
11th Gen Intel® Tiger Lake UP3 Fanless NUC Slim System
- 11th Gen Intel® Tiger Lake-U i7/i5i3 Processor Onboard, supports extended temp.
- Intel® UHD Graphics
- Memory supports up to 32GB DDR4 3200MTs SDRAM
- Supports Dual Displays, 2 x HDMI 2.0b
- Dual Intel® Gigabit Ethernet: Intel® I225-LM 2.5GbE and Intel® I219-LM 1GbE
- 3 x M.2 Sockets: E/B/M-Key for Wi-Fi, LTE, SSD, and I/O modules
- 2 x COM Ports
- 4 x USB 3.2 Gen.2 (10Gbp/s) (Rear I/O) + 2 x USB 2.0 (Front I/O)
- Kensington Lock
- TPM 2.0
- IP40 Rating
- Mounting Kit: Table Stand, Din Rail Mount, or VESA Mount

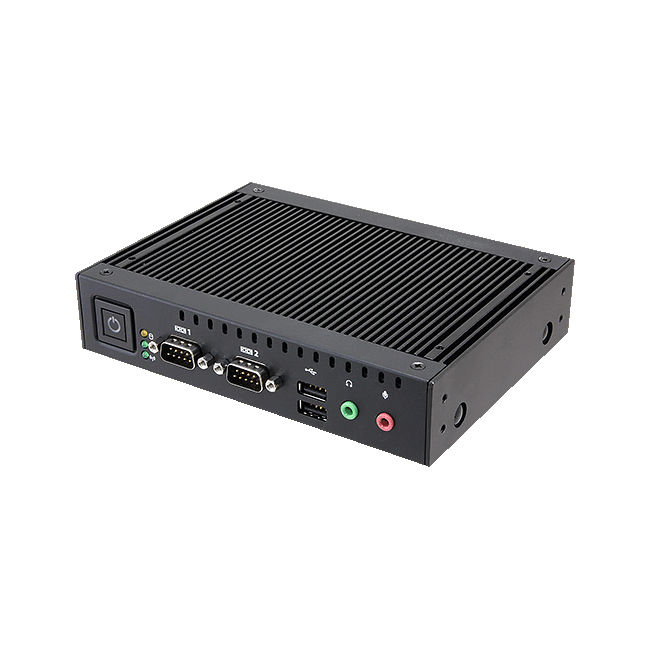

NUC-TGU, a Slim and Compact NUC PC/NUC Computer. Built with 11th Gen Intel® Tiger Lake UP3 i7/i5/i3 processor onboard and provides rich external I/O interfaces.
Slim, Fanless and Powerful
The NUC-TGU is a slim and compact industrial barebone computer designed with the 11th Gen. Intel® Tiger Lake UP3 i7/i5/i3 processor onboard. Standard SKU includes 8GB DDR4 memory, upgradeable up to 32GB DDR4 3200MTs SDRAM. Measuring only 6.69” x 4.92” x 1.42”, CE, FCC Class B certified, this thin computer has many features that differentiates it from the many other similar NUC-type products in the market. These features include 100% fanless operation, TPM 2.0, 2 serial ports, 2 HDMI 2.0b, a lockable DC jack, and operating temperature up to 50°C.
Robust External I/O

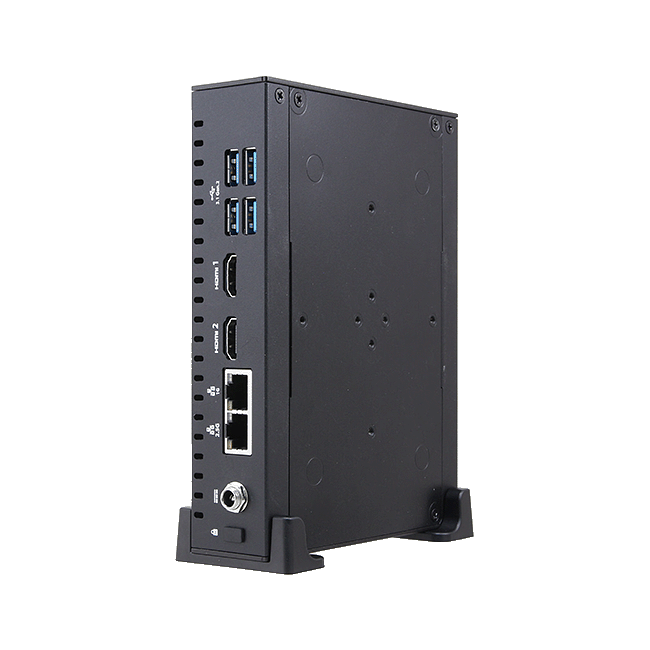

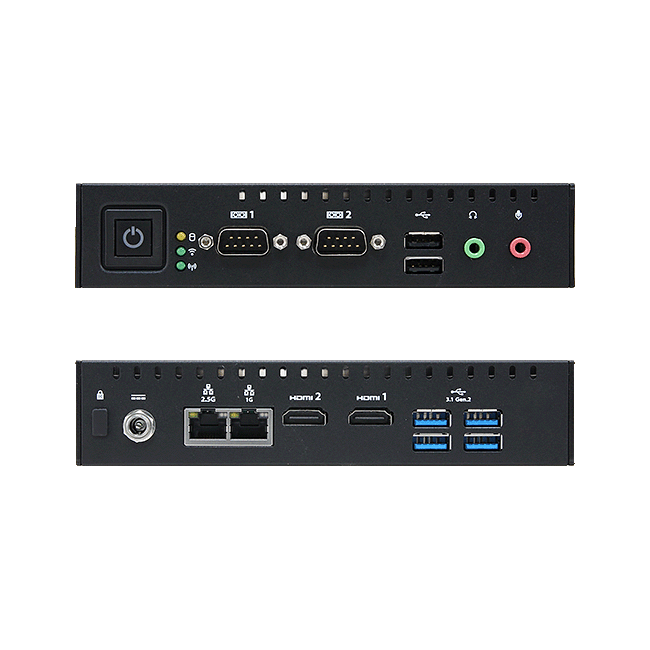

The NUC-TGU I/O interfaces include two COM ports, two LAN ports with one 2.5GbE speed, four USB 3.2 Gen.2 (10Gbp/s), two HDMI 2.0b, a Kensington Lock for security, four antenna mounting holes, Mic-in, Line-out audio jacks, and a screw-locking 12V DC-in jack.
Multiple Mounting Options
The NUC-TGU has multiple mounting options including VESA mount, Din Rail mount, and the Table Stand kit. It also features a Kensington lock for system equipment protection.
Applications
Indoor Digital Signage systems, Interactive Kiosk/POS systems, Automated Vending Machines, semi-industrial applications
The NUC-TGU is an ideal solution for a variety of applications, including Indoor Digital Signage systems, Interactive Kiosk/POS systems, Automated Vending Machines, and semi-industrial applications. It addresses several challenges commonly encountered in these domains, such as space constraints, performance limitations for AI-enabled machines, and insufficient device connectivity. With its ability to optimize space, enhance performance, and expand I/O interfaces, the NUC-TGU provides a comprehensive solution to overcome these obstacles and deliver efficient and effective results in the specified use cases.
