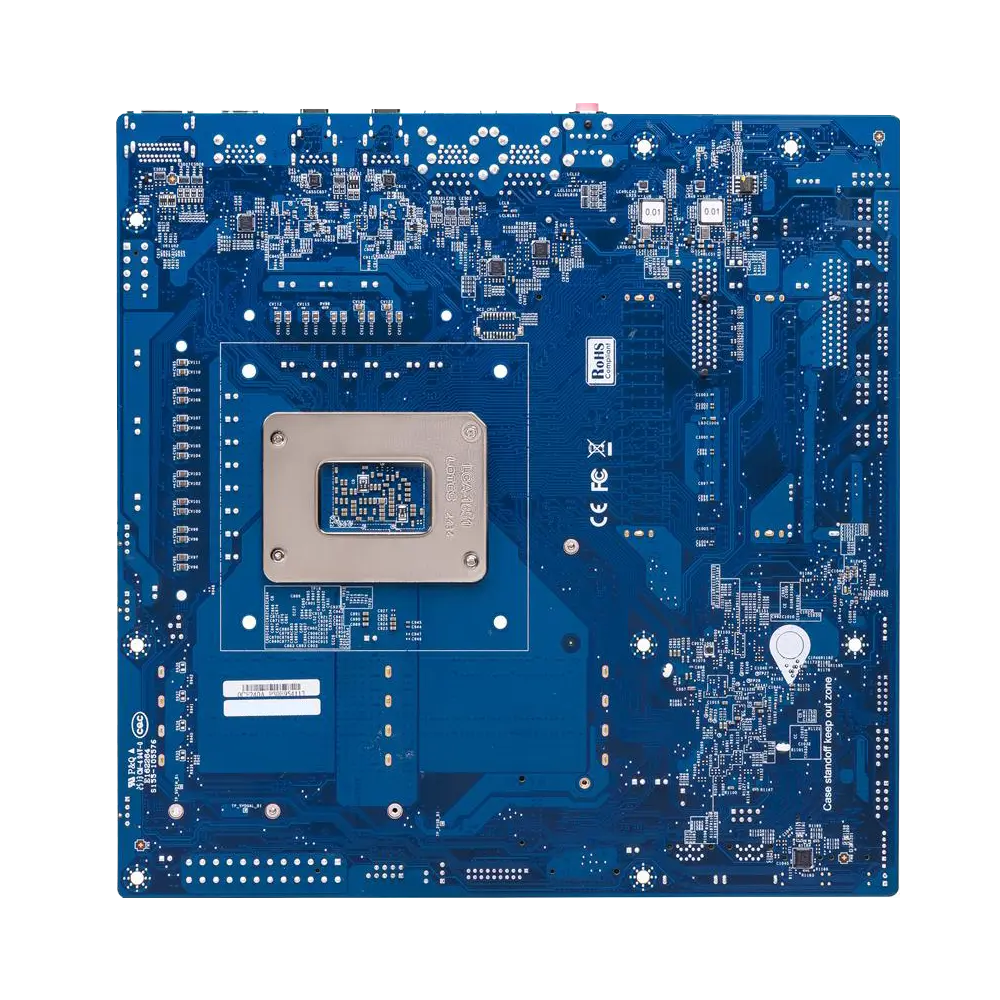

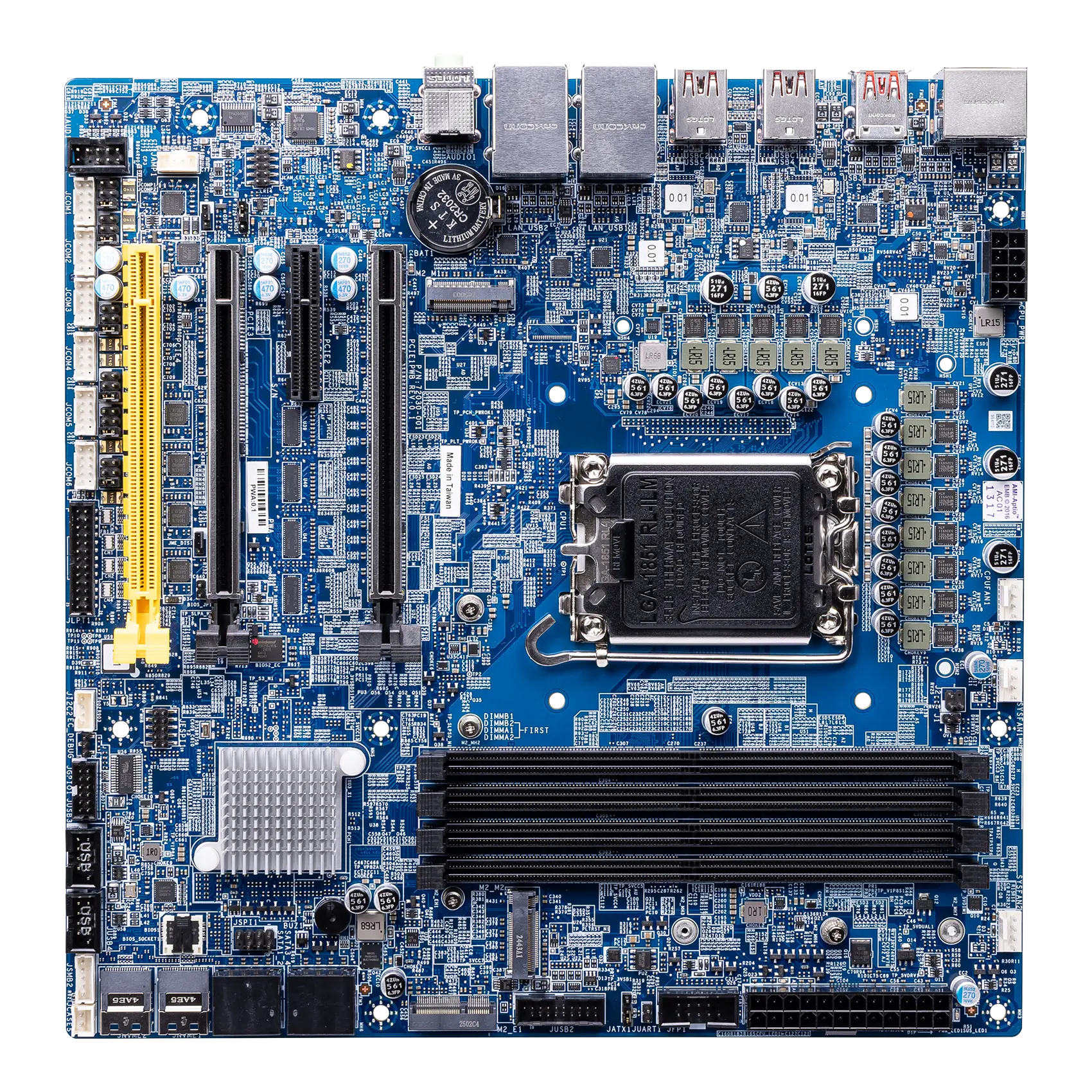

RX880W Coming Soon

Micro ATX, LGA1851 supports Intel® Core™ Ultra processors (Series 2) 5/7/9 up to 125W TDP

• LGA1851 supports Intel® Core™ Ultra processors (Series 2) 5/7/9 up to 125W TDP, formerly Arrow Lake S/Arrow Lake S Refresh
• Intel® W880 PCH
• 4 x DIMMs support Dual Channel DDR5 5600MHz up to 192GB
• With ECC support
• Intel® Integrated Xe LPG Architecture (CPU Dependent)
• Supports 4 Independent Displays (via 2 x DP and 2 x Thunderbolt 4.0)
• 1 x PCIe Gen5 x16, 1 x PCIe Gen5 x8, 2 x PCIe Gen4 x8
• 2 x M.2 M-Key NVMe, 1 x M.2 E-Key
• 2 x SlimSAS 4i Connector(SFF-8654) (Gen 4 PCIe x4)

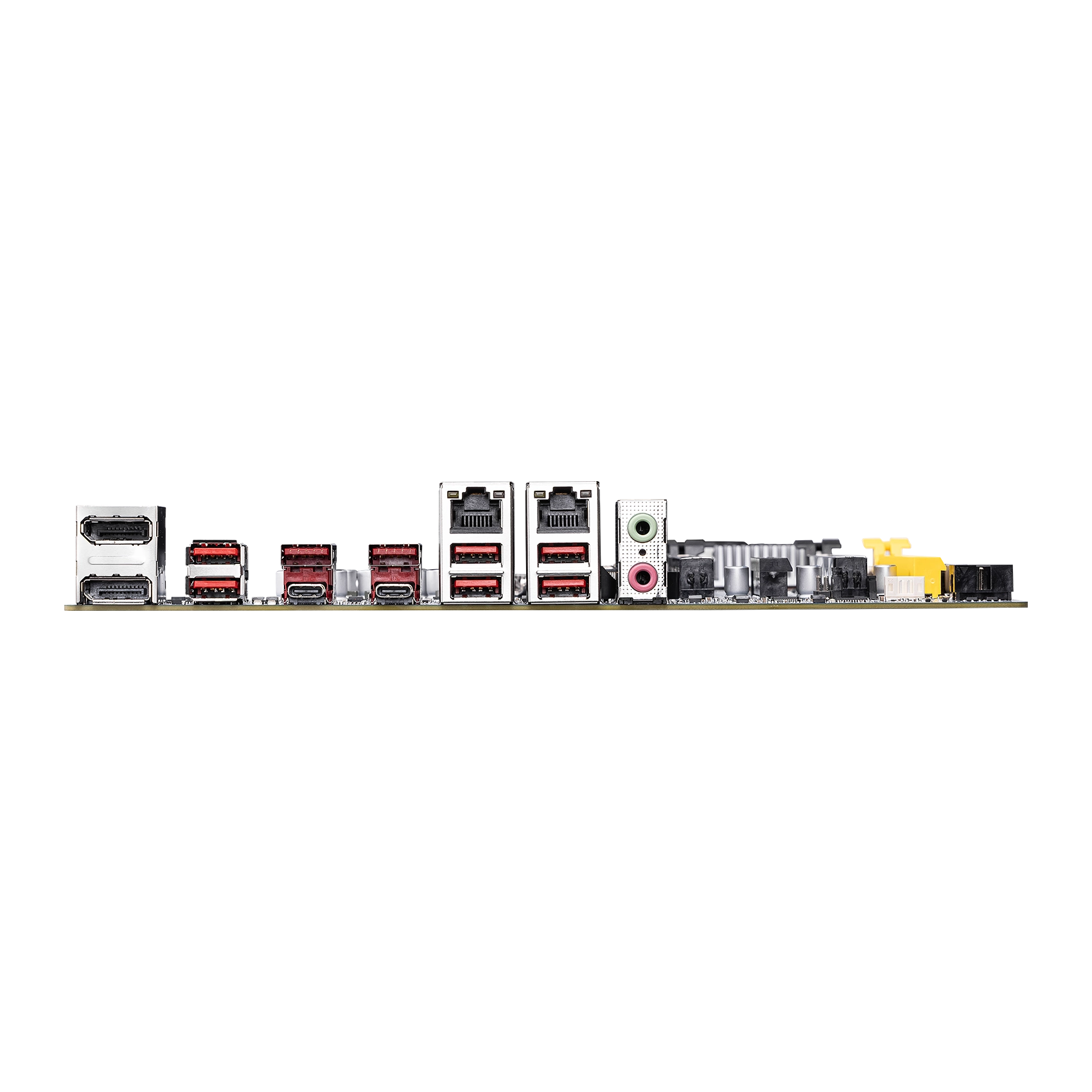

• Rear I/O: 8 x USB 3.2 Gen 2x1 Type-A, 2 x USB Type C Thunderbolt 4.0, 2 x DP++, 2 x LAN (2.5GbE)
• 1 x USB 3.2 Gen 1x1 Header with Shroud (2 Ports on Header)
• 3 x USB 2.0 Headers with Shroud (6 Ports on Header)
• 6 x COM Ports
• Intel® AMT 19, ME 19
