HPS-ERSU4A
19" 4U Rackmount Barebone, supports single 5th Gen. Intel® Xeon® SP Processor
- Extended Lifecycle Server-grade Workstation

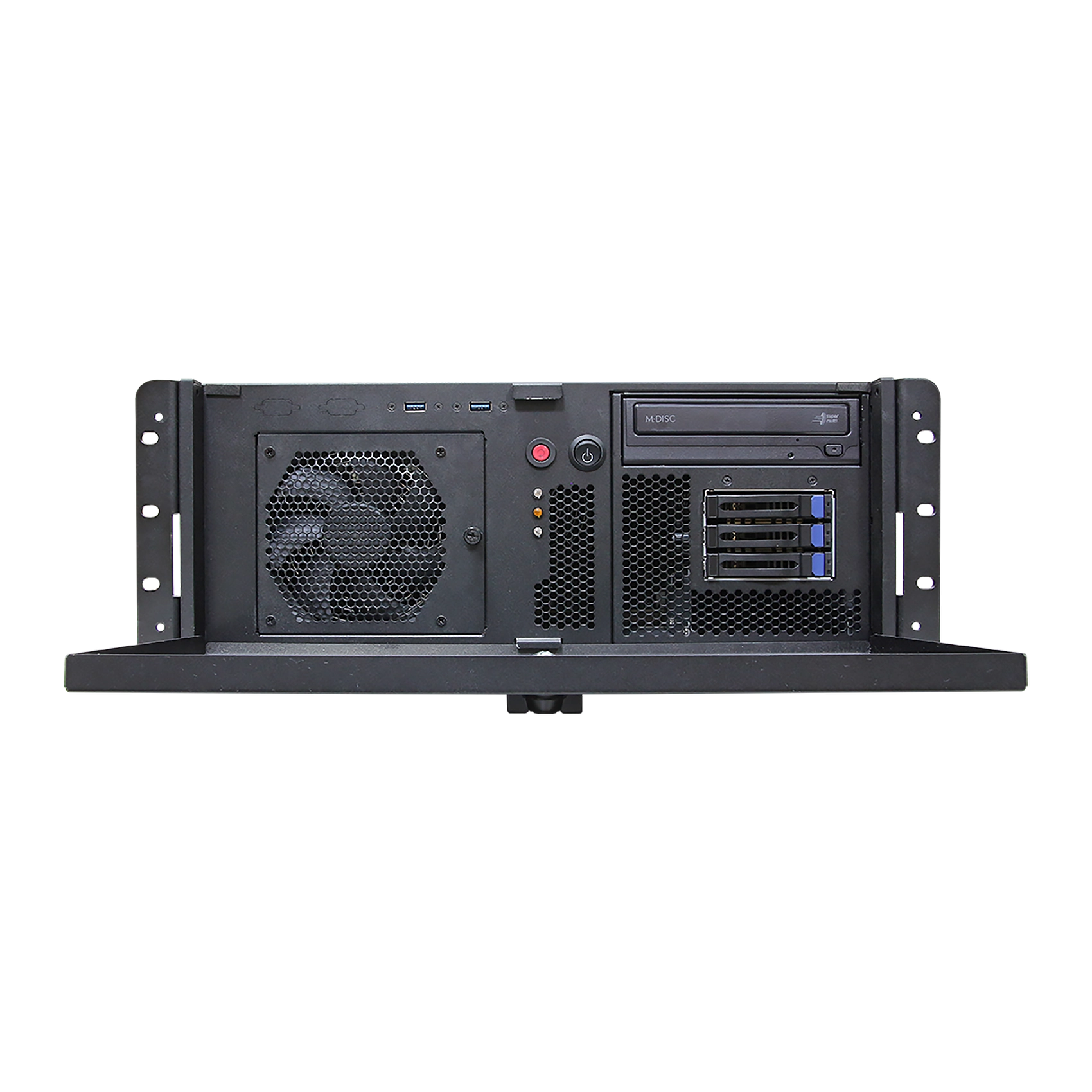

- Lockable Front Cover
- Intel® LGA4677 Socket supports 5th Gen. Intel® Xeon Scalable Processors (Max. TDP at 270W)
- Intel® C741 Chipset
- Supports 6 x DDR5 5600MT/s RDIMM up to 1.5TB
- 4 x PCIe Gen5 x16 Slots, and 3 x PCIe Gen5 x4 Slots
- 1 x 1300W PS2 ATX PSU
- 3 x Front Accessible 2.5” storage bay
- 1 x Intel® X550-AT2 10GbE Ethernet Controller supports 2 x RJ45 LAN ports, 10GbE each port
- 5 x RJ45 LAN Ports: 4 x LAN plus 1 x Management LAN shared with IPMI Port
- 4 x USB 3.2 Gen 1 port & 2 x USB 2.0 port at Edge I/O
- 1 x VGA, 1 x COM Port
- Supports IPMI 2.0 with AST 2600 BMC Controller Onboard
- TPM 2.0 Onboard
- 19" 4U Chassis
- L6 Barebone only
- L10 Fully Integrated System available through OEM/ODM
- Custom configurations: Redundant Power Supply
Related Motherboard Inside
Scalable Enterprise Computing for AI and Medical Imaging
The HPS-ERSU4A is a 4U rackmount workstation powered by BCM’s HPM-ERSUA industrial motherboard, supporting 5th Gen Intel® Xeon® Scalable processors, offering up to 1.5TB of DDR5 memory. This 4U rackmount workstation is designed to support compute-intensive functions in regulated medical environments.
Whether you are tackling complex AI algorithms or processing sensitive medical data, the HPS-ERSU4A delivers the speed, reliability, and security you need.
delivers the speed, reliability, & security
-
High-Speed Throughput: Up to 1.5TB DDR5 memory and multi-core Xeon® processors deliver lightning-fast processing speeds, accelerating throughput.
-
Ultra-Fast Data Transfers: Dual Intel® X550-AT2 Ethernet Controllers (10GbE) LAN ports provide seamless, high-speed data transfers, eliminating data bottlenecks and perfect for large hospital or enterprise networks.
-
Maximum Reliability: IPMI 2.0 + AST 2600 BMC controller enables secure remote management, power cycling, fan/temp monitoring, and BIOS updates, ensuring 24/7 uptime.
-
Security Compliance: Integrated TPM 2.0. Meets healthcare data security and patient privacy compliance requirements.
19" 4U Rackmount Barebone Mechanical Overview
Multiple PCIe Gen5 Slots – Power Your Medical AI and Imaging
Equipped with multiple PCIe Gen5 slots, the HPS-ERSU4A gives medical OEMs and system integrators the scalability to meet demanding AI and imaging workloads—supporting additional GPUs, NVMe storage, and high-speed networking for smooth data flow across clinical environments. Its future-ready design ensures long-term adaptability as healthcare applications evolve toward more advanced AI and data-intensive processing.
IPMI Support
The IPMI (Intelligent Platform Management Interface) is a set of industry-standard specifications for hardware-based subsystems that provide management and monitoring capabilities independently of the host system's CPU, firmware, and operating system. Used together with a BMC (Baseboard Management Controller), IPMI allows a system administrator to perform many different monitoring and management tasks remotely without having to be physically located next to and connected to the system – such as power cycling a server, installing BIOS or firmware updates, and monitoring fan speeds and temperatures. BCM HPC solutions have built-in onboard BMC/IPMI technology with real-time system monitoring and provide preventive maintenance to minimize system downtime and field service cost.
IPMI Advantages:
- Reducing high cost for downtime and repair
- Reducing TTM and development cost for platform management
- Enabling “Always Accessible” management
- Enabling cross-platform manageability across server classes
- Enabling secure remote management
- Multi-OS Support
IPMI Features:
- Server Hardware Monitoring
- Remote Power Control
- Remote Control
- Out Of Band (OOB) BIOS & Firmware Updates
- Asset Tracking
