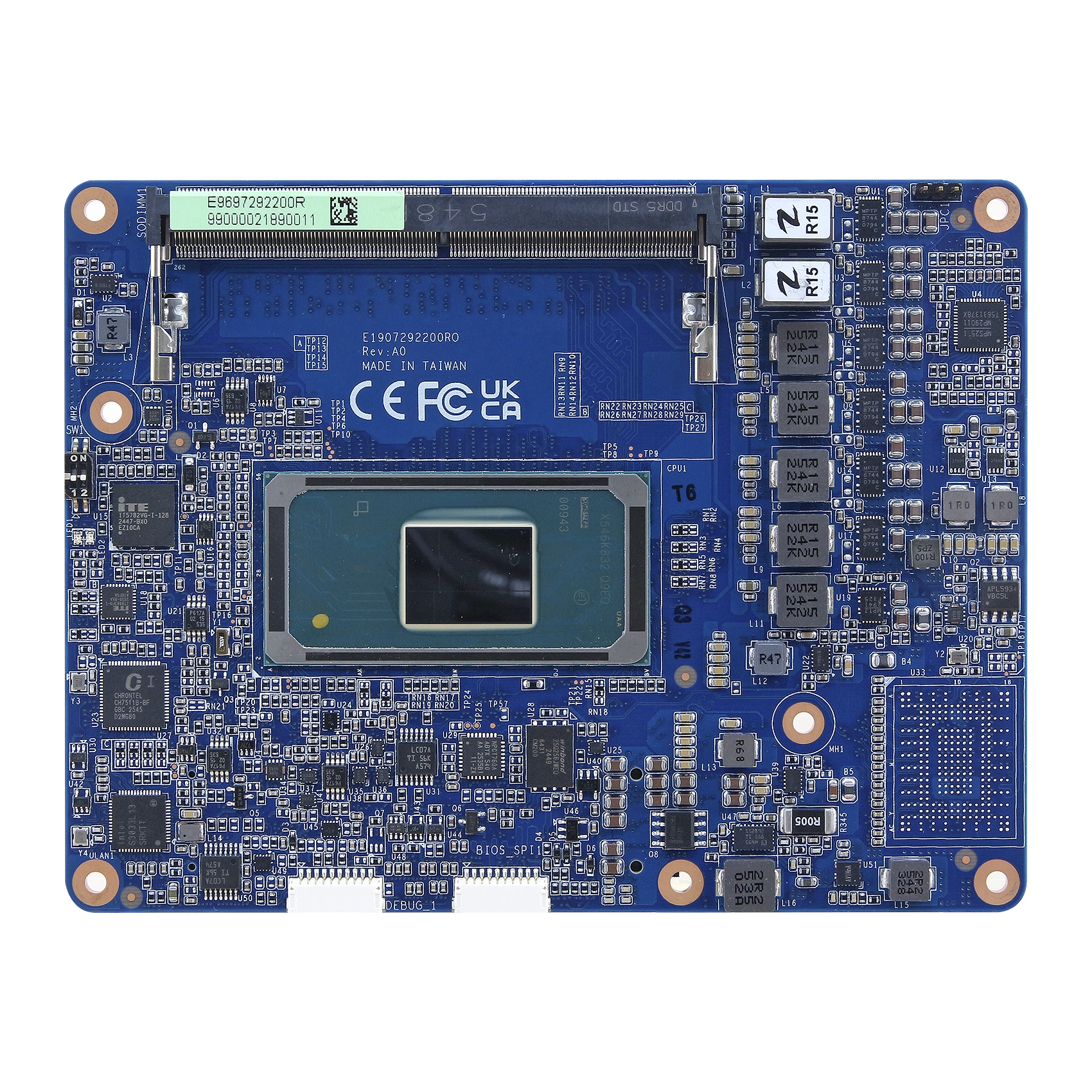

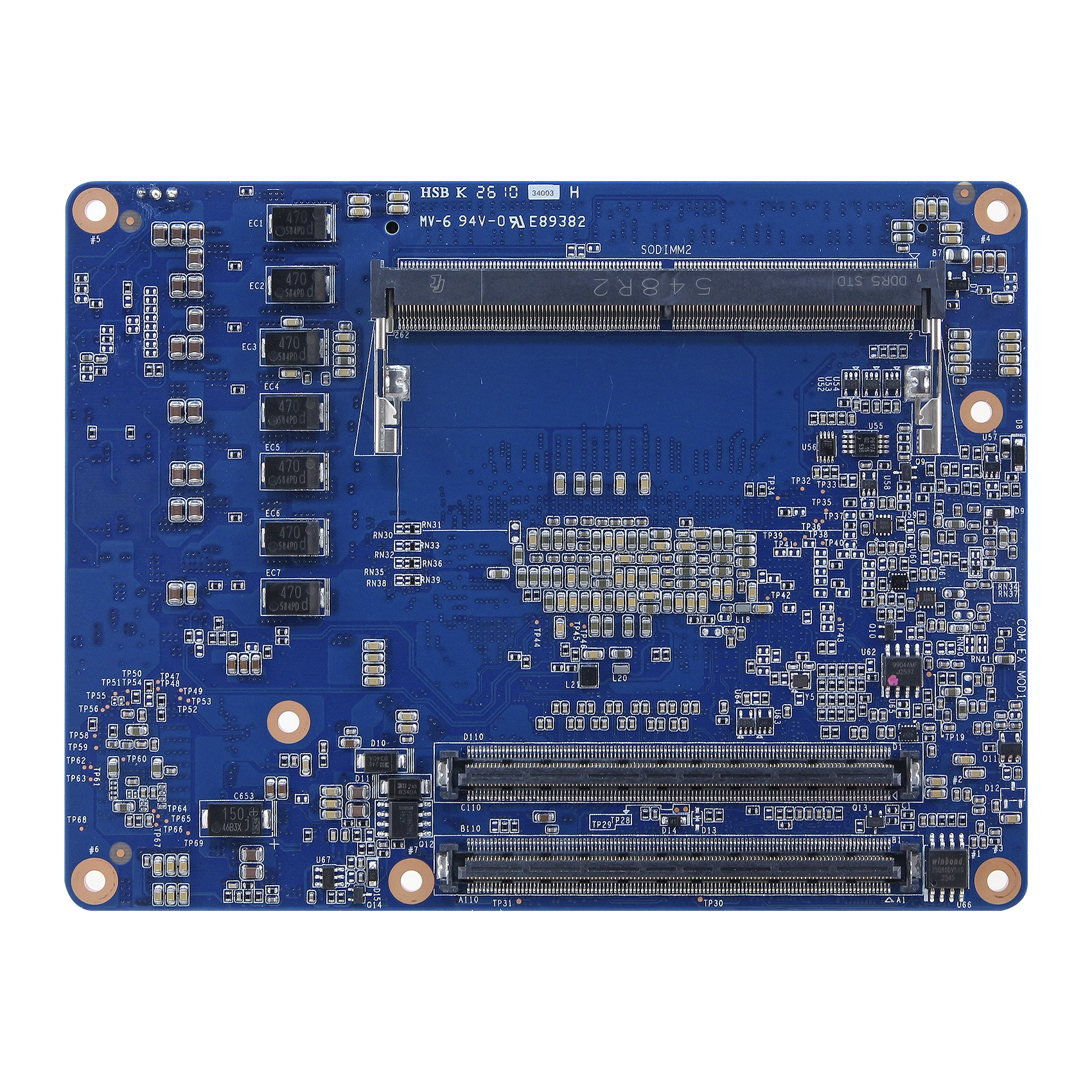

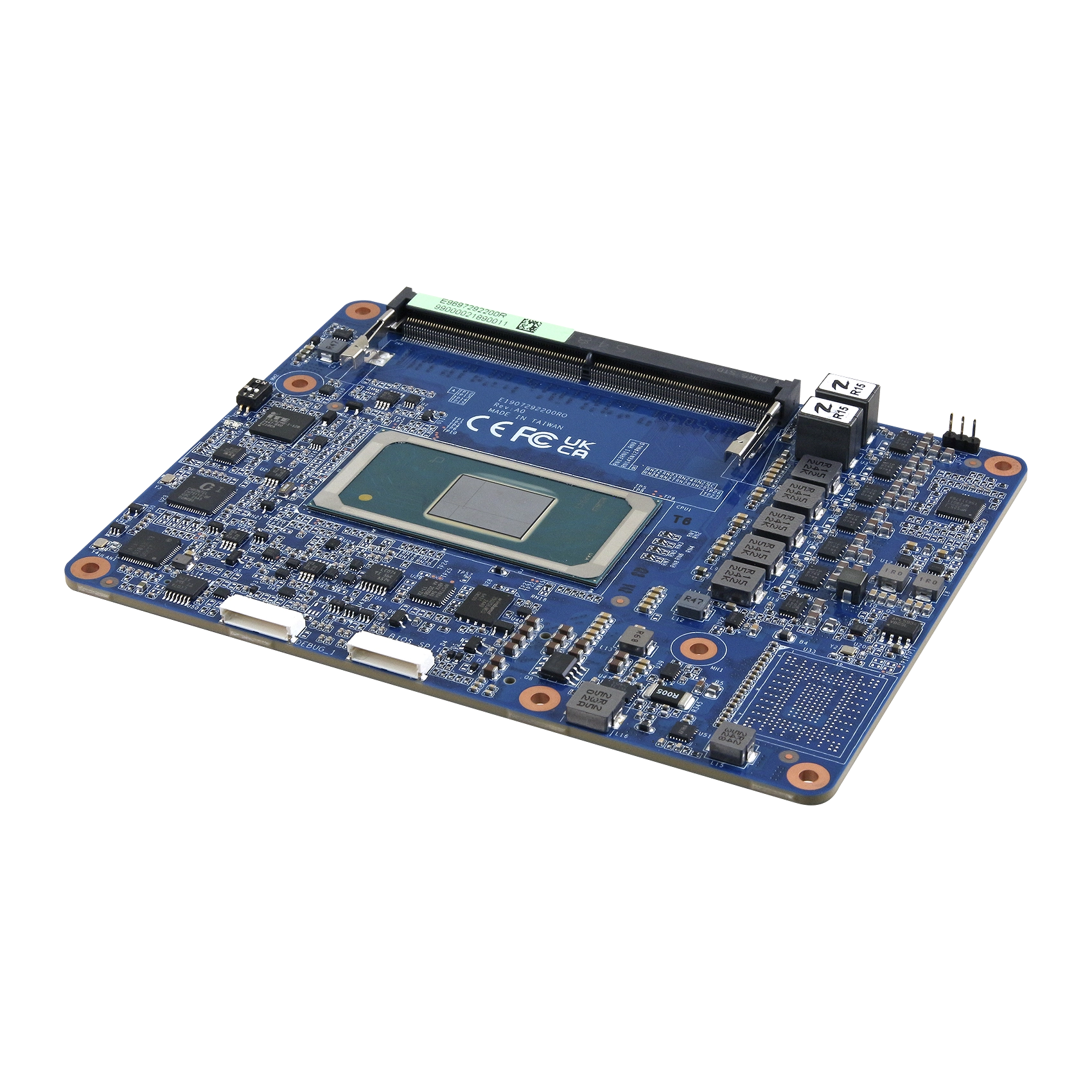

ESM-PTL Intel Panther Lake COMe Module ESM-PTL Intel Panther Lake COMe Module ESM-PTL Intel Panther Lake COMe Module

ESM-PTL Coming Soon

Type 6 COM Express Module built with Intel® Core™ Ultra Series 3 Processor

  • Onboard Intel® Core™ Ultra Series 3 Processors (formerly Panther Lake-H/U platform), up to 16 Cores, 4.8 GHz (15W to 45W Base Power)
  • Integrated Intel® AI Boost NPU for advanced edge AI workloads
  • Form Factor: COM Express Rev. 3.1 Type 6 Basic
  • Dual-Channel DDR5 SO-DIMM up to 96GB (7200MHz / 6400MHz)
  • Intel® Xe LPG Graphics (up to 128EUs) supporting Quad Independent Displays and 8K resolution
  • Expansion: Flexible PCIe Gen 4 bifurcation (up to PEG x8 or 2x x4) with NVMe and Intel® VMD support
  • High-Speed I/O: Up to 2x USB4, 3x USB 3.2 Gen 2, and Intel® I226-LM 2.5GbE LAN
  • Security & Management: Onboard TPM 2.0 with Intel® vPro and iAMT 12.0 support (select SKU)
  • Rugged Design: +9V~+19V wide power input; Extended Temperature SKUs available (-40°C to 85°C)
  • Product coming soon, subject to change without notice
Carrier Board for COMe
System
CPU

Onboard Intel® Core™ Ultra Series 3 Processors (formerly Panther Lake-H/U platform)
Integrated Intel® AI Boost NPU for advanced edge AI workloads

H-Series (Intel® Core™ Ultra H484) – 16 Cores, High Performance:
Intel® Core™ Ultra 7 Processor 366H: vPro Supported | 18M Cache | 2.0 GHz Base, up to 4.80 GHz
Intel® Core™ Ultra 7 Processor 356H: Non-vPro | 18M Cache | 1.9 GHz Base, up to 4.70 GHz
Intel® Core™ Ultra 5 Processor 336H: vPro Supported | 18M Cache | 1.9 GHz Base, up to 4.60 GHz

U-Series (Intel® Core™ Ultra H404) – 8 Cores, Power Efficient:
Intel® Core™ Ultra 7 Processor 365: vPro Supported | 12M Cache | 2.4 GHz Base, up to 4.80 GHz
Intel® Core™ Ultra 7 Processor 355: Non-vPro | 12M Cache | 2.3 GHz Base, up to 4.70 GHz
Intel® Core™ Ultra 5 Processor 325: Non-vPro | 12M Cache | 2.1 GHz Base, up to 4.50 GHz
Note: Select SKUs require MOQ/BTO.
System Memory 2 x 262-Pin DDR5 SO-DIMM up to 96GB (7200/6400MHz for H404 SKU; 7200MHz for H484 SKU)
BIOS AMI uEFI BIOS, 256 Mbit SPI Flash ROM
I/O Chip EC iTE IT5782
Watchdog Timer H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step
H/W Status Monitor Monitoring System Temperature
Voltage and FAN Status with Auto Throttling Control
Expansion Interface PCIe: Up to 8 x PCIe Gen4 lanes (Configuration varies by SKU)
PEG: * Up to 1 x PEG x8 Gen4 (Configurable to 2 x4, H484 SKUs only)
1 x PEG x4 Gen4
Storage 1 x NVMe (Optional)
Security Onboard TPM 2.0
OS Support Windows 11 64-bit
Linux
Display
Chipset Intel® Xe LPG
Resolution Up to 3 x DDI Port Support Configurable HDMI/DisplayPort
1 x LVDS: 1920 x1200@60Hz (Default)
Or optional 1 x eDP 1.4b: up to 4K
Multi-Display Supports 4 Independent Displays
Ethernet
Chipset Standard Temperature SKU: Intel® I226-LM Ethernet Controller (2.5GbE)
Wide Temperature SKU: Intel® I226-IT Ethernet Controller (2.5GbE)
Interface 10/100/1000/2500 Base-Tx GbE compatible
Audio
Chipset Intel® HD Audio
I/O
USB Up to 2 x USB4 (shared with DDI), 3 x USB 3.2 Gen2, 8 x USB 2.0
Serial & I/O 2 x UART (TX/RX), 8-bit GPIO
Control Bus I2C, SMBus, SPI, LPC
Mechanical and Environment
Power Requirement +9V~+19V Wide Range Power Input
Power Mode AT/ATX
Operating Temperature Standard Temperature SKUs: 0°C ~ 60°C (32~140°F) with 0.5m/s Air Flow
Extend Temperature SKUs: -40°C ~ 85°C(-40~°185F) with 0.5m/s Air Flow for extend Temp CPU SKU
Storage Temperature -40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Form Factor COM Express Rev. 3.1 Type 6 COM Express Module
Certification Information Compliant to CE, FCC Class B, RoHS Compliant
Dimensions 4.92" x 3.74" (125mm x 95mm)
Weight 0.44lbs (0.2kg)

* All product specifications and product images are subject to change without notice. Last update: 06/02/2026

Document
Datasheet
Manual - Contact Tech Support
Drivers Download
Contact Tech Support for additional driver related questions
Date Description Download
Model Name Description
ESM-PTL series Product Coming Soon. Please contact BCMSales@bcmcom.com
