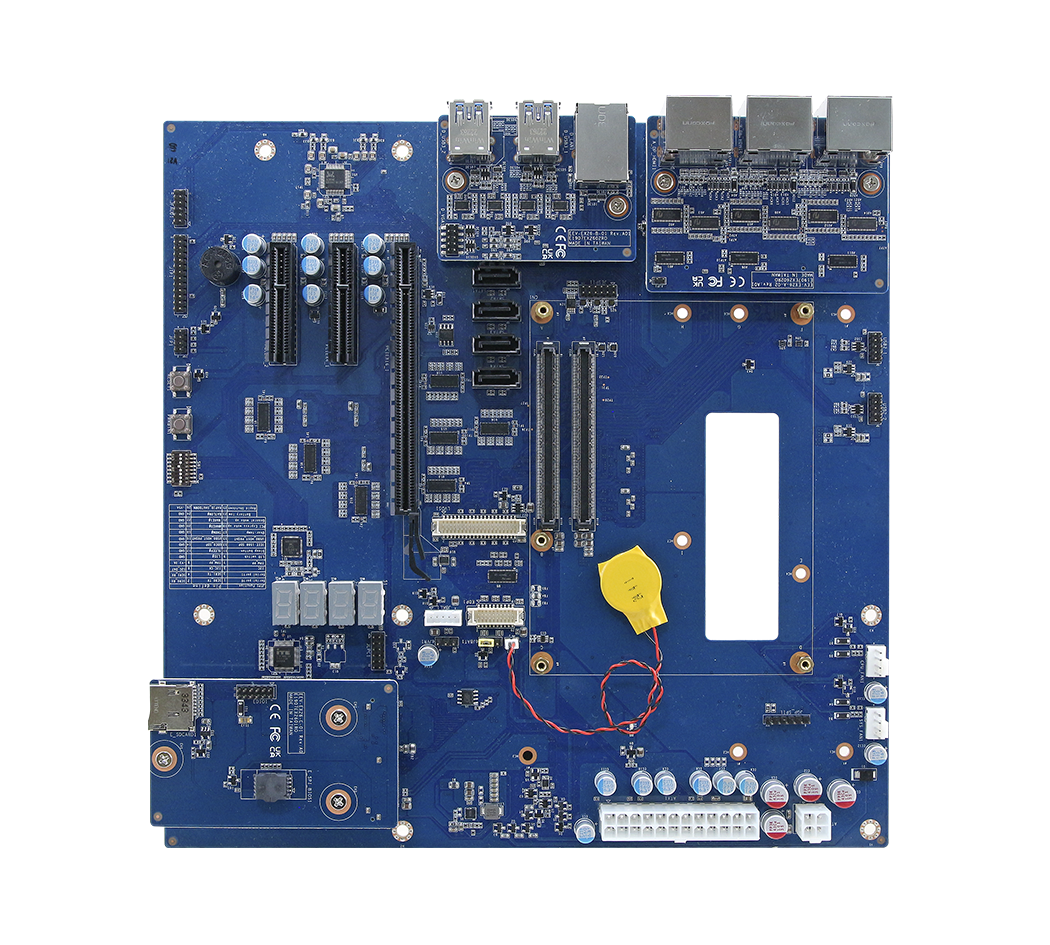

EEV-EX26 PICMG Type 6 COMe Carrier Board with IET Modules EEV-EX26 EV-EX26 PICMG Type 6 COMe Carrier Board EEV-EX26 PICMG Type 6 COMe Carrier Board EEV-EX26

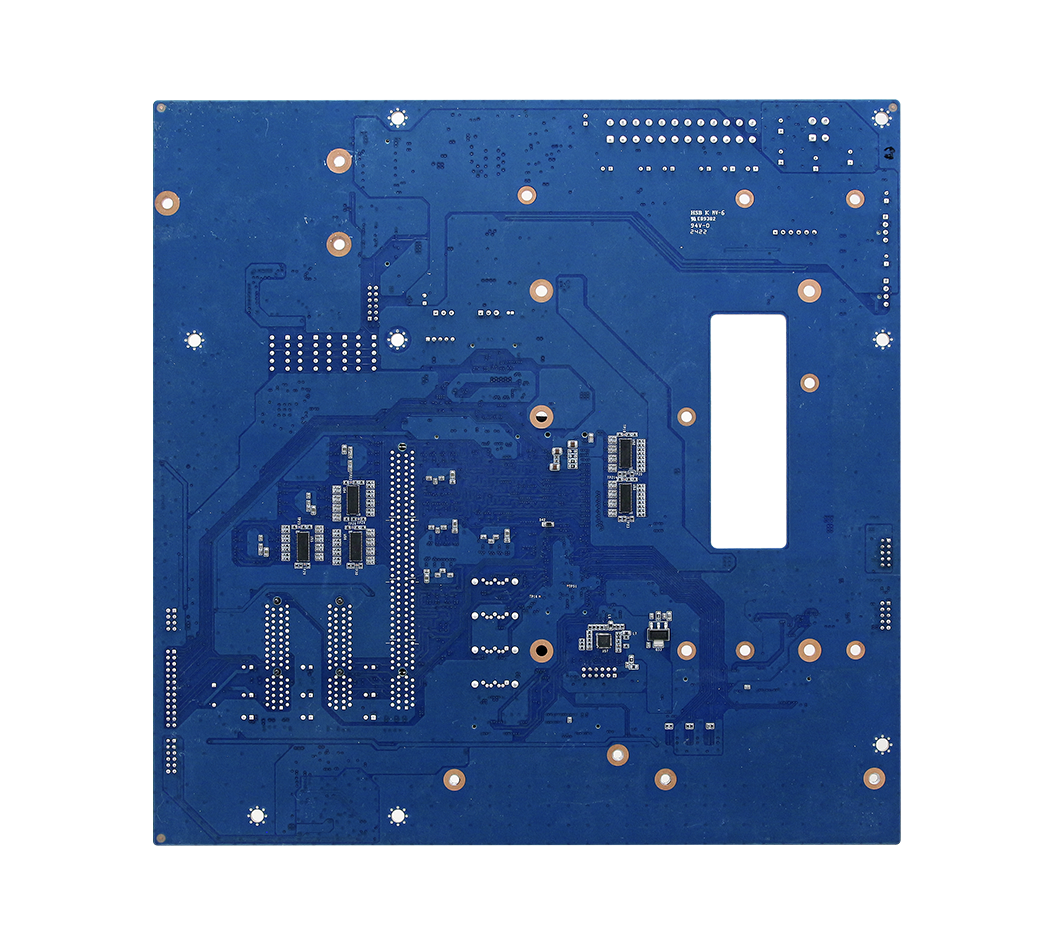

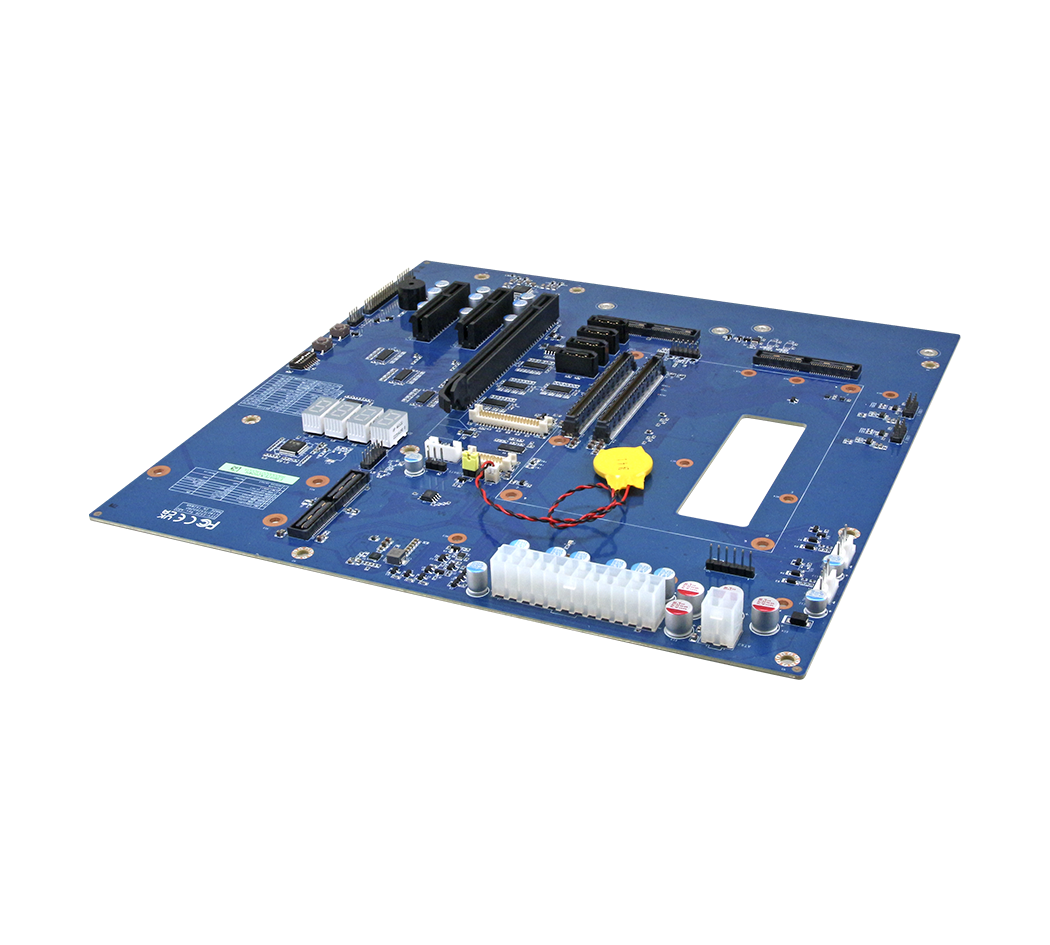

EEV-EX26

Micro ATX Carrier Board Supports COM Express Type 6 PICMG® COM Express® Revision 3.1

  • Micro ATX form factor
  • Supports COM Express Type 6 modules PICMG® COM Express® Revision 3.1
  • IET modules available for additional DP/HDMI/VGA, 2.5G LAN, USB3.2 Gen2 x1, USB4 Type C, SD/DIO
  • 1 x PCIe Gen4 x16, 2 x PCIe Gen4 x4
Compatible COMe Module
I/O
Expansion 1 x PCIe Gen4 x16
2 x PCIe Gen4 x4
Display 1 x eDP/1 x LVDS
Additional DP/HDMI/VGA through IET module
USB 2 x USB 2.0
Additional USB through IET module
SATA 4 x SATA III
Power Input 1 x 2 x 12-pin ATX power connector
1 x 2 x 2-pin ATX 12V power connector
IET IET Connectos for DP/HDMI/VGA/USB/LAN modules
IET Modules
AUX-A01 2 x USB4 Type C
1 x HDMI
AUX-A02 3 x DDI configurable to DP 1.4a (max. 4096 x 2160@60Hz) or HDMI 2.0b (4096x2160@60Hz)
AUX-A03 3 x DisplayPorts
AUX-A04 3 x HDMI
AUX-B01 1 x VGA 1920 x 1200 @ 60Hz
2 x USB3
1 x VGA
AUX-C01 1 x SD Card Slit, 1 x GPIO
Mechanical and Environment
Power Requirement +12V/+5V/5VSB/+3.3V/-12V
Operating Temperature -40 ~ 85°C (-40~ 185°F)
Storage Temperature -40 ~ 75°C (-40 ~ 167°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Form Factor Micro ATX (uATX)
Dimensions (L) x (W) 9.6" x 9.6" (243.84mm x 243.84mm)
Weight 0.91lbs (0.412kg)
Certification Information CE, FCC, RoHS Compliant

* All product specifications and product images are subject to change without notice. Last update: 04/02/2026
