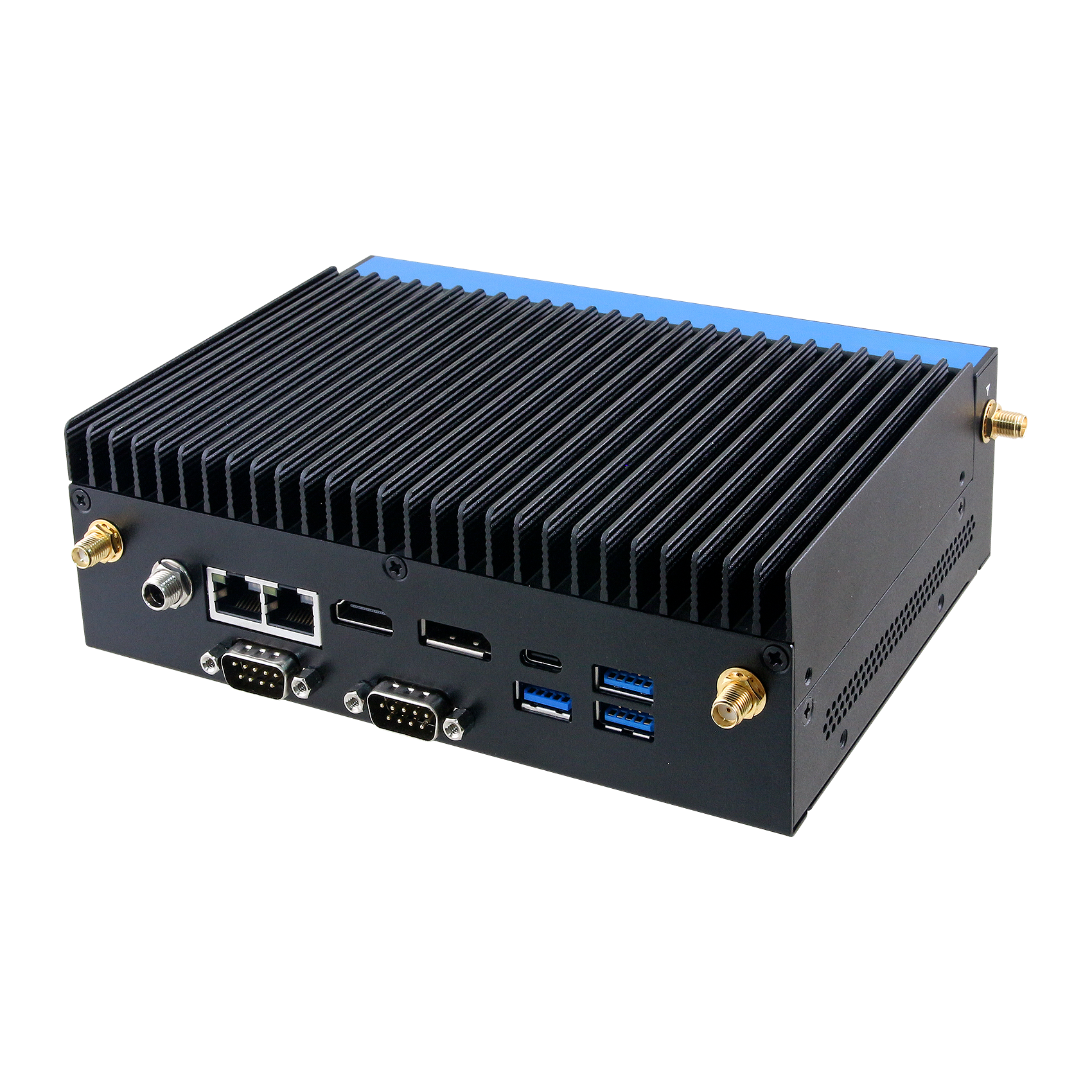

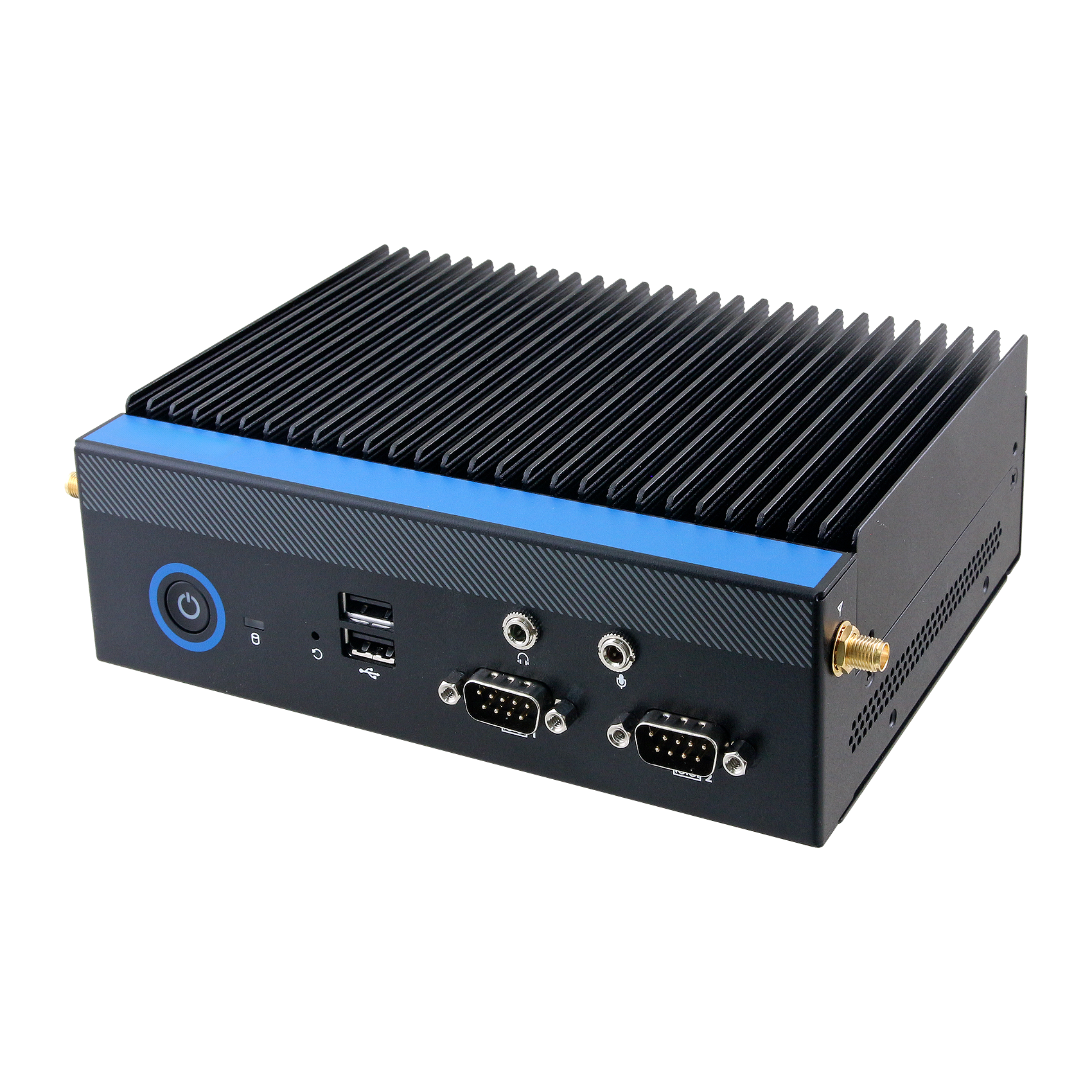

Intel Panther Lake Fanless Embedded System Intel Panther Lake Fanless Embedded System Intel Panther Lake Fanless Embedded System Intel Panther Lake Fanless Embedded System

EPC-PTL Coming Soon

Compact Embedded System built with the Intel® Core™ Ultra Series 3 Processor Platform

  • Intel® Core™ Ultra Series 3 Processor onboard, Panther Lake platform
  • 1 x DDR5 6400MHz (H404) SODIMM socket, 7200MHz (H484) SODIMM socket supports up to 48GB
  • 2 x Intel® Ethernet Controller I226-IT (2.5GbE)
  • TPM 2.0
  • 1 x M.2 M-Key 2280, 1 x M.2 B-Key 3042/3052/2242, 1 x M.2E- Key 2230
  • Supports 3 independent displays: 1 x DP 2.1, 1 x HDMI 2.1b, 1 x USB Type C support DP
  • Rich external I/O
  • Fanless Operation (CPU TDP 15W): -20°C to 60°C (with wide-temp SSD)
  • DC in +12V ~ +24V, lockable DC Jack
  • Supports Windows 11, Linux
Related Product(s)
System
CPU Intel® Core™ Ultra Series 3 processors, BGA20X (formerly Panther Lake)
Intel® Core™ Ultra 7 Processor 365, 8C8T, 12M Cache, 1.8 GHz (4.8GHz), TDP: 25W
Intel® Core™ Ultra 7 Processor 355, 8C8T, 12M Cache, 1.7 GHz (4.7GHz), TDP: 25W
Intel® Core™ Ultra 5 Processor 335, 8C8T, 12M Cache, 1.6 GHz (4.6GHz), TDP: 25W
Intel® Core™ Ultra 5 Processor 322, 6C6T, 12M Cache, 1.9 GHz (4.4GHz), TDP: 25W
System Memory 1 x 262-pin DDR5 6400MHz (H404) SODIMM socket, 7200MHz (H484) SODIMM socket supports up to 48GB
BIOS AMI BIOS, 256Mbit SPI Flash ROM
Ethernet 2 x Intel® Ethernet Controller I226-IT (2.5GbE)
Audio Codec HD Audio
Watchdog Timer H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
H/W Status Monitor CPU & system temperature monitoring Voltages monitoring
TPM TPM 2.0
Expansion 1 x M.2 M-Key 2280 (with 1 x PCIe Gen5) NVME
1 x M.2 B-Key 3042/3052/2242 (with 1 x PCIe x1, USB 3.2 Gen2, USB 2.0 with 1 x SIM card slot support WWAN+GNSS) (3.3V & 3.8V)
1 x M.2E- Key 2230 support WiFi module and CNVi (1 x PCIe x1 & USB 2.0 Signal)
Storage Via M.2:
1 x M.2 M-Key 2280 NVMe
1 x M.2 B-Key 3042/3052/2242
Supported OS Windows 11, Linux
Display
Chipset Intel® Graphics
Resolution 1 x DP 2.1: Max: 7680 x 4320@30 Hz
1 x HDMI 2.1b: 7680 x 4320@30Hz
1 x USB Type C support DP: 4096 x 2160@60Hz
3 independent displays

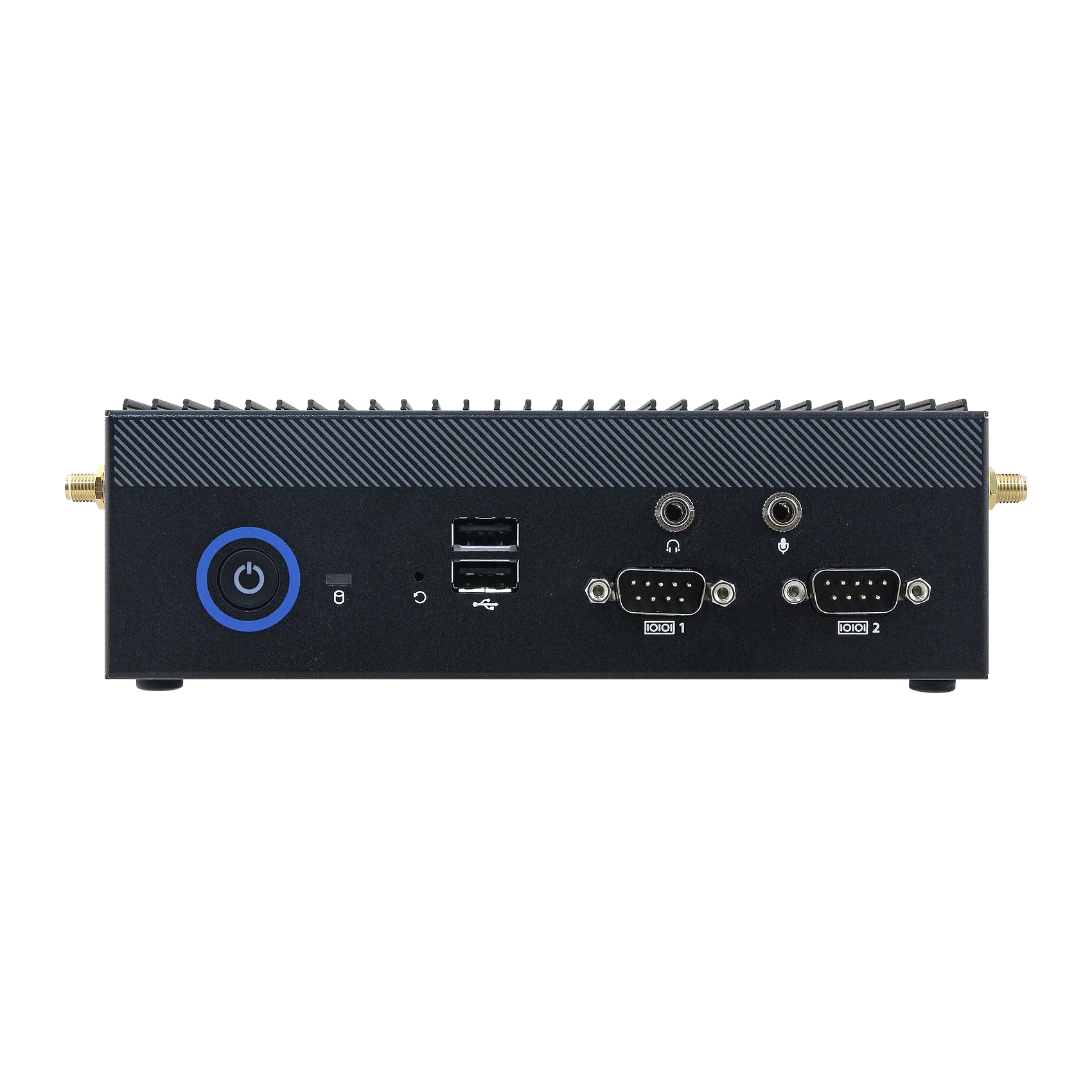

External I/O - Front
USB 2 x USB 2.0 type A
COM Port 2 x DB-9 RS-232 or 1 x DB-9 RS-232+1 x DB-9 8bit DIO
Audio 1 x Mic-in, 1 x Line-out
Power Button 1 x Power Button
Reset Button 1 x Reset Button
LED Indicator 1 x Power LED, 1 x HDD LED

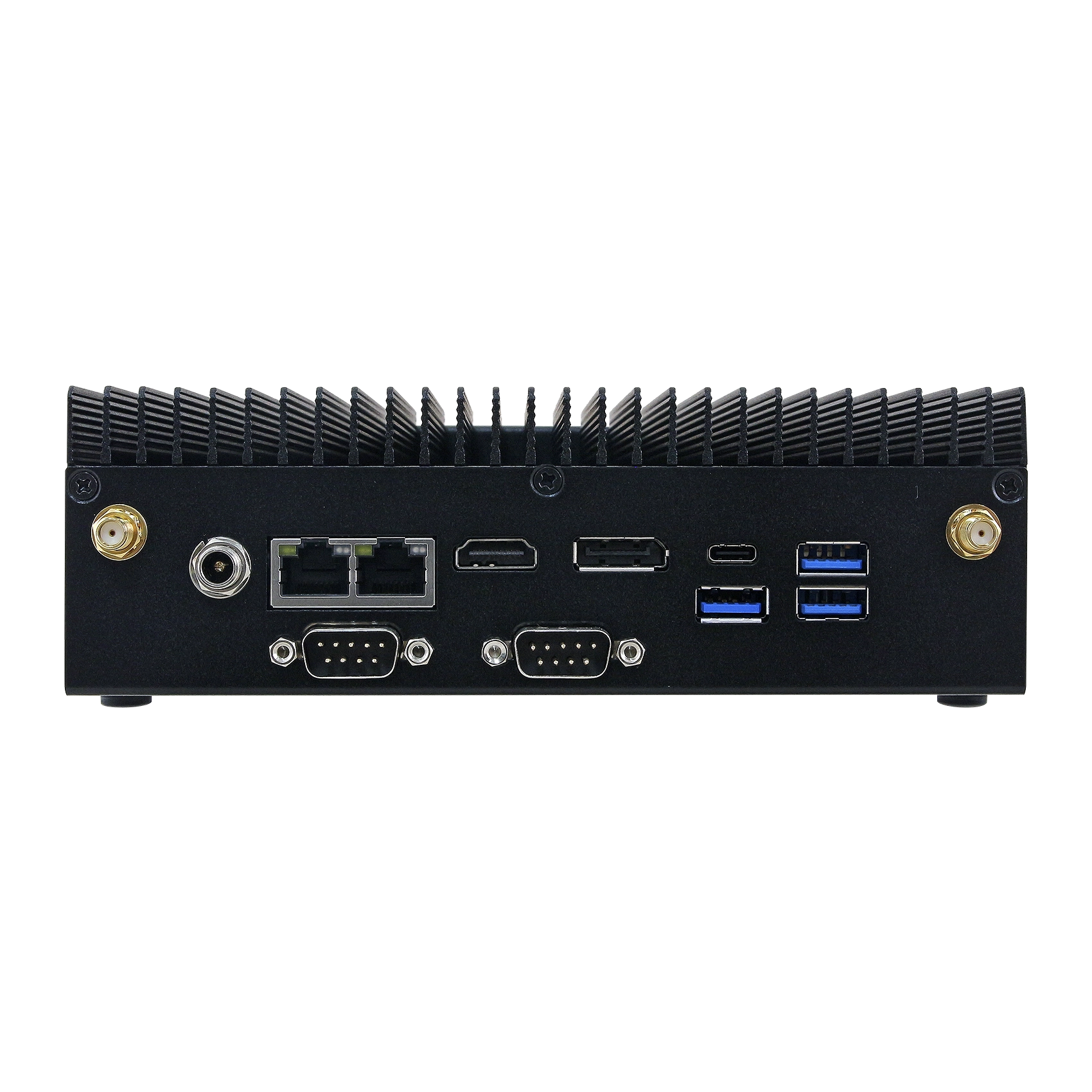

External I/O - Rear
DP 1 x DP 2.1
1 x HDMI 2.1b
USB Port 4 x USB 2.0 by pin header
3 x USB 3.2 Gen 2
1 x USB Type-C 5V 3A at I/O (with USB 3.2 Gen 2x1 & DP 1.4a signal display output)
LAN 2 x RJ-45
Antenna 2 x Antenna Mounting Holes with Dust Protection Covers
External I/O - Left
Antenna 1 x Antenna Mounting with Dust Protection Cover
External I/O - Right
Antenna 1 x Antenna Mounting with Dust Protection Cover
Power Requirement
DC Input DC in +12V ~ +24V, lockable DC Jack
Adapter 120W AC to DC Adapter
ACPI Single power ATX Support S0, S3, S4, S5, ACPI 5.0 compliant
Power Mode AT/ATX (ATX is default setting)
Mechanical and Environment
Operating Temp Fanless Operation (CPU TDP 15W): -20°C to 60°C (with wide-temp SSD)
Storage Temp -40°C ~ 85°C (-40°F ~ 185°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Construction Aluminum + Metal
Mounting Method Wall/VESA/DIN Rail Mount
Dimension 6.97” x 4.94” x 2.24" (177 x 126 x 57mm)
Certification Information CE, FCC Class A, RoHS, UKCA

* All product specifications and product images are subject to change without notice. Last update: 09/11/2026

Document
Datasheet - Contact Tech Support
Manual - Contact Tech Support
Model Name Description
EPC-PTL Coming soon, please contact sales team at BCMSales@bcmcom.com
