| System |
| CPU |
Intel Core Ultra Series 3 Processors, formerly Panther Lake H Platform, up to 12W ~ 45W (TBC)
Intel® Core™ Ultra X9 Processor 388H, 18M Cache, up to 5.10 GHz
Intel® Core™ Ultra 9 Processor 386H, 18M Cache, up to 4.90 GHz
Intel® Core™ Ultra X7 Processor 368H, 18M Cache, up to 5.00 GHz
Intel® Core™ Ultra 7 Processor 366H, 18M Cache, up to 4.80 GHz
Intel® Core™ Ultra 7 Processor 365, 12M Cache, up to 4.80 GHz
Intel® Core™ Ultra X7 Processor 358H, 18M Cache, up to 4.80 GHz
Intel® Core™ Ultra 7 Processor 356H, 18M Cache, up to 4.70 GHz
Intel® Core™ Ultra 7 Processor 355, 12M Cache, up to 4.70 GHz
Intel® Core™ Ultra 5 Processor 338H, 18M Cache, up to 4.70 GHz
Intel® Core™ Ultra 5 Processor 336H, 18M Cache, up to 4.60 GHz
Intel® Core™ Ultra 5 Processor 335, 12M Cache, up to 4.60 GHz
Intel® Core™ Ultra 5 Processor 325, 12M Cache, up to 4.50 GHz
Note: Select SKUs require MOQ/BTO. |
| System Memory |
1 × 262-pin DDR5 SO-DIMM, H404 up to 6400MHz and H484 up to 7200MHz, supports up to 48GB max, non-ECC |
| BIOS |
AMI® UEFI BIOS, 256Mb SPI Flash ROM |
| Expansion |
1 × M.2 M-Key 2280 with PCIe x4 Gen5 for NVMe SSD
1 × M.2 E-KeE 2230 with PCIe x1 + USB 2.0, CNVi support (Wi-Fi 7 ready)
1 × M.2 B-Key (2242/3042/3052) with PCIe x1, USB 3.2 Gen2 & USB 2.0, supports WWAN/GNSS or PCIe x1 SSD
1 × SIM socket + 1 × FPC SIM, single SIM support, 3.3V/3.8V selectable via jumper, 5G ready |
| TPM |
TPM 2.0 |
| OS Support |
Windows® 11 64-bit, Linux |
| Display |
| Chipset |
Intel® Xe LPG Integrated Graphics |
| Interface and Max. Resolution |
HDMI 2.1 up to 7680 × 4320 @30Hz
DP 2.1 up to 7680 × 4320 @30Hz
LVDS up to 1920 × 1080b
eDP up to 1920 × 1080 @60Hz
|
| Multi-Display |
Supports up to four displays: DP + HDMI + LVDS or eDP + USB Type-C DP |
| Audio |
| Audio Codec |
Realtek HD Audio |
| Amplifier |
3W × 2 @ 4Ω Class-D Amplifier |
| Ethernet |
| LAN Chipset |
LAN1: Intel® Ethernet Controller I226-LM 2.5GbE
LAN2: Intel® Ethernet Controller I226-V 2.5GbE
Optional extended-temperature SKU with 2 × Intel® I226-IT (Ethernet Speed 10/100/1000/2500 Mbps) |
| Interface |
2 x 10/100/1000/2.5G Base-TX GbE Compatible |
| LAN Port |
2 x RJ45 |

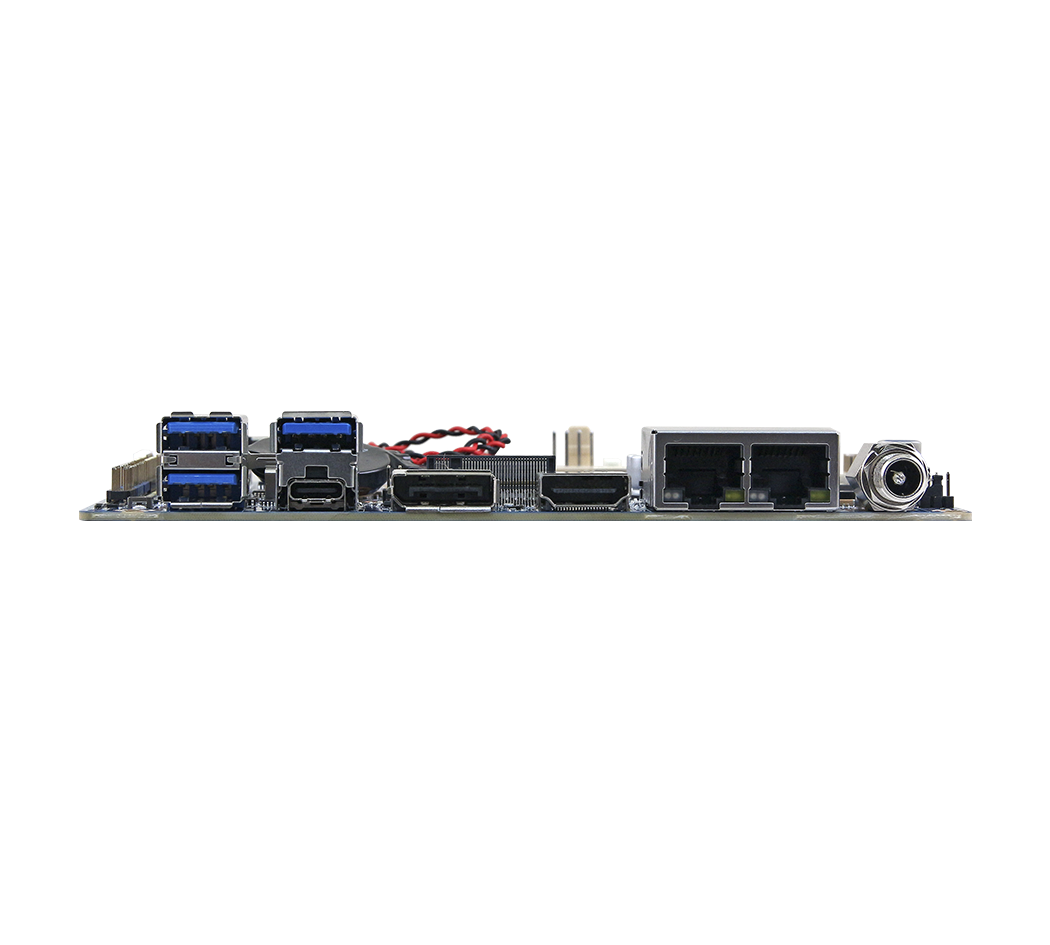

| External I/O |
| Display |
1 × HDMI 2.1
1 × DisplayPort 2.1 |
| USB |
2 × USB 3.2 Gen2 Type-A
1 × USB 3.2 Gen1 Type-A (+5VSB/0.9A)
1 × USB Type-C 5V@3A with USB 3.2 Gen2x2 & DisplayPort signal |
| LAN |
2 x RJ45 |
| Power |
1 x DC-in |
| Internal I/O |
| Display |
1 x LVDS Header
1 x eDP Header (Optional) |
| USB |
4 × USB 2.0 Headers |
| COM |
2 × RS-232/422/485 Headers
2 × RS-232 Headers |
| Audio |
2 × 6-pin headers for Line-in, Line-out, Mic-in
1 × 4-pin speaker header |
| GPIO |
1 x 8-bits GPIO Header |
| Mechanical and Environment |
| Power Requirement |
+12V ~ +24V Wide Range DC |
| Operating Temperature |
Standard temperature CPU: 0°C ~ 60°C (32°F ~ 140°F)
Extended temperature CPU: −40°C ~ 70°C (-40°F ~ 158°F) (with 0.5 m/s airflow) |
| Storage Temperature |
−40°C ~ +75°C (-40°F ~ 167°F) |
| Operating Humidity |
95% Relative Humidity @ 40°C, non-condensing |
| Cooling Design |
Passive Heatsink for 15W Processors |
| Certification Information |
CE, FCC Class B, RoHS Compliant |
| Form Factor |

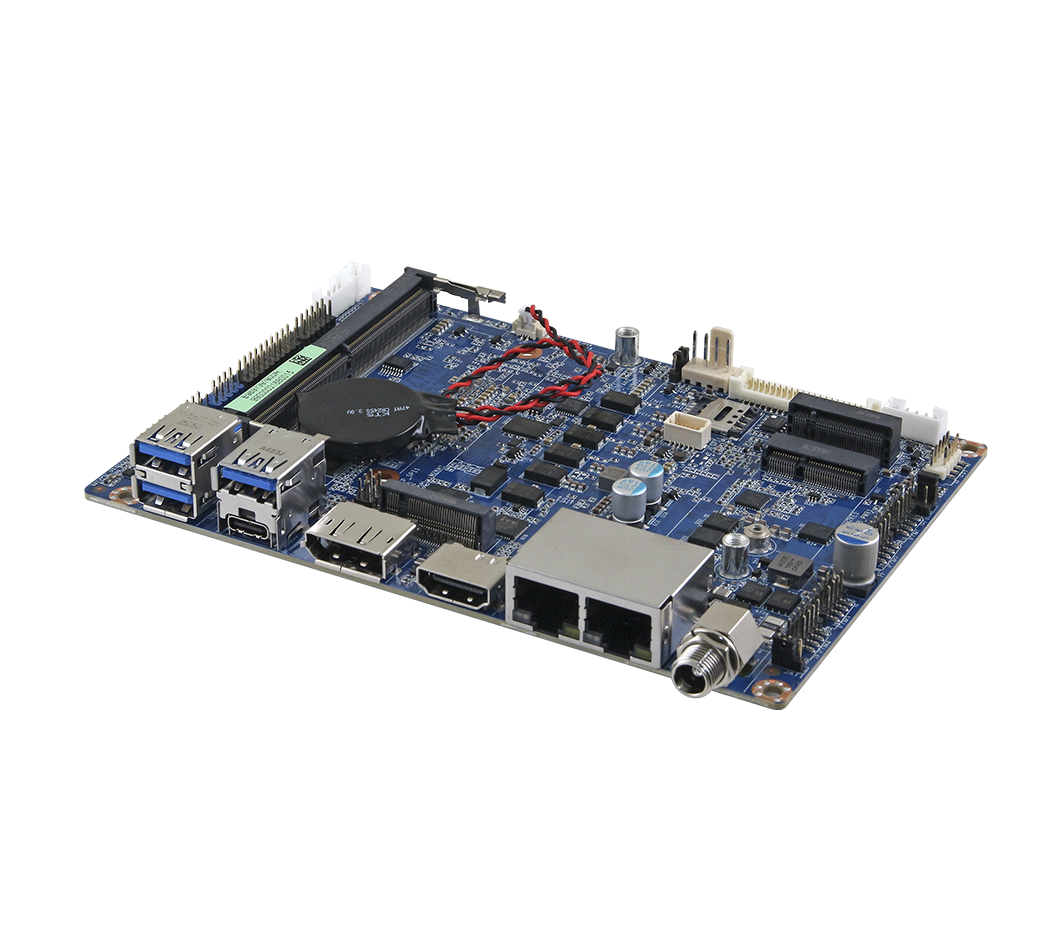

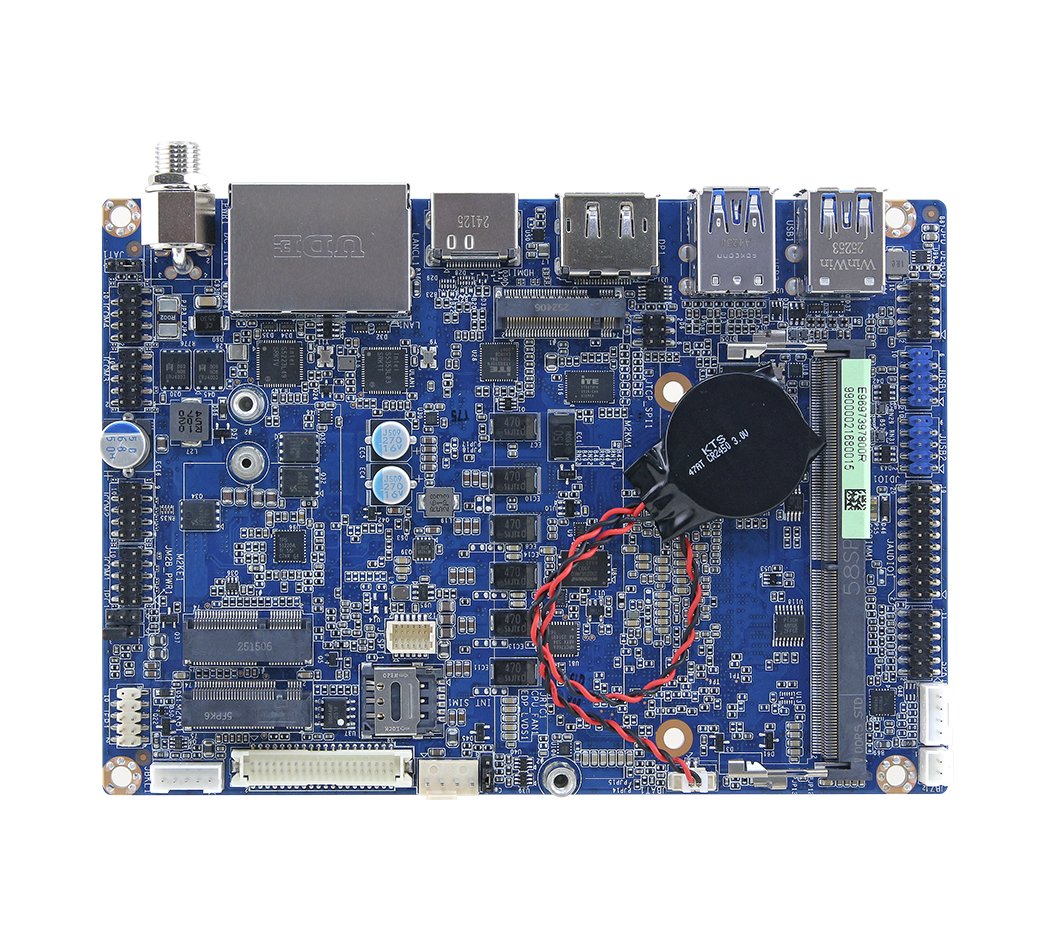

3.5" Single Board Computer (SBC) |
| Dimensions |
5.7" x 4" (146mm x 102mm) |
| Weight |
0.88lbs (0.4kg) |
