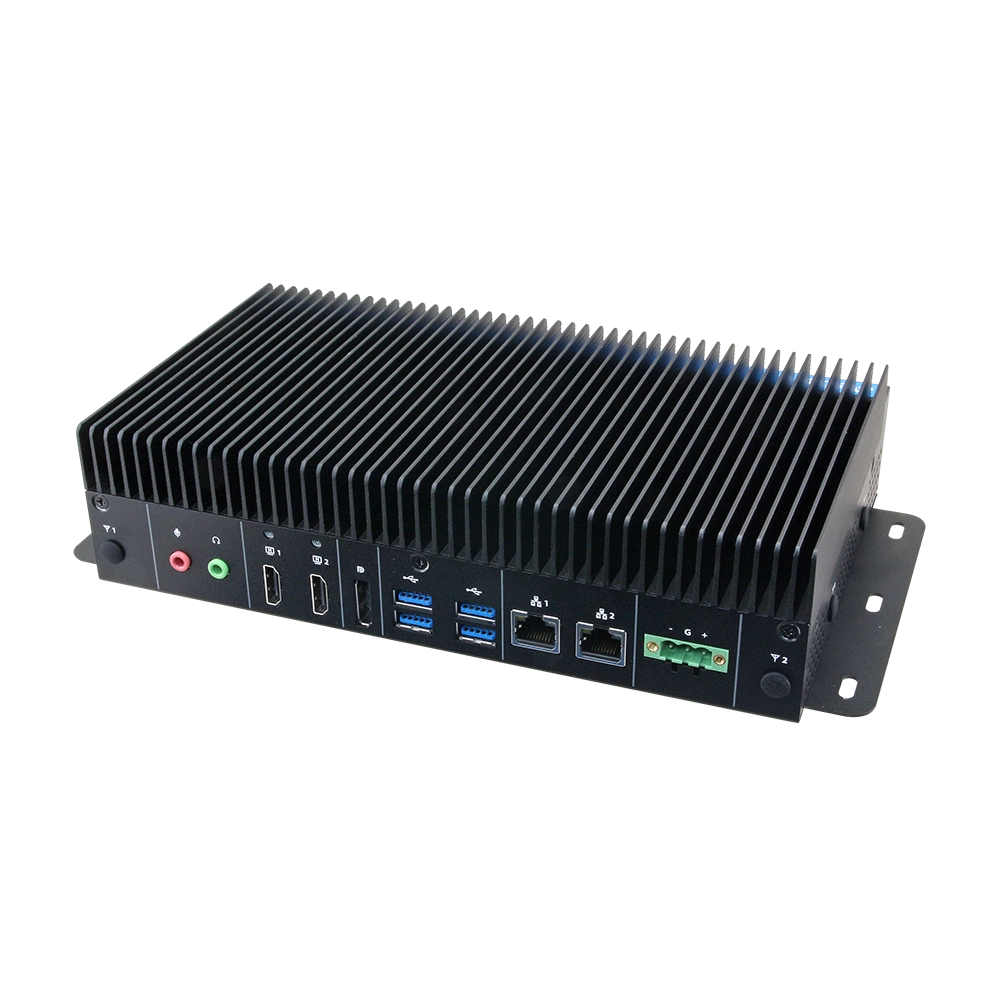

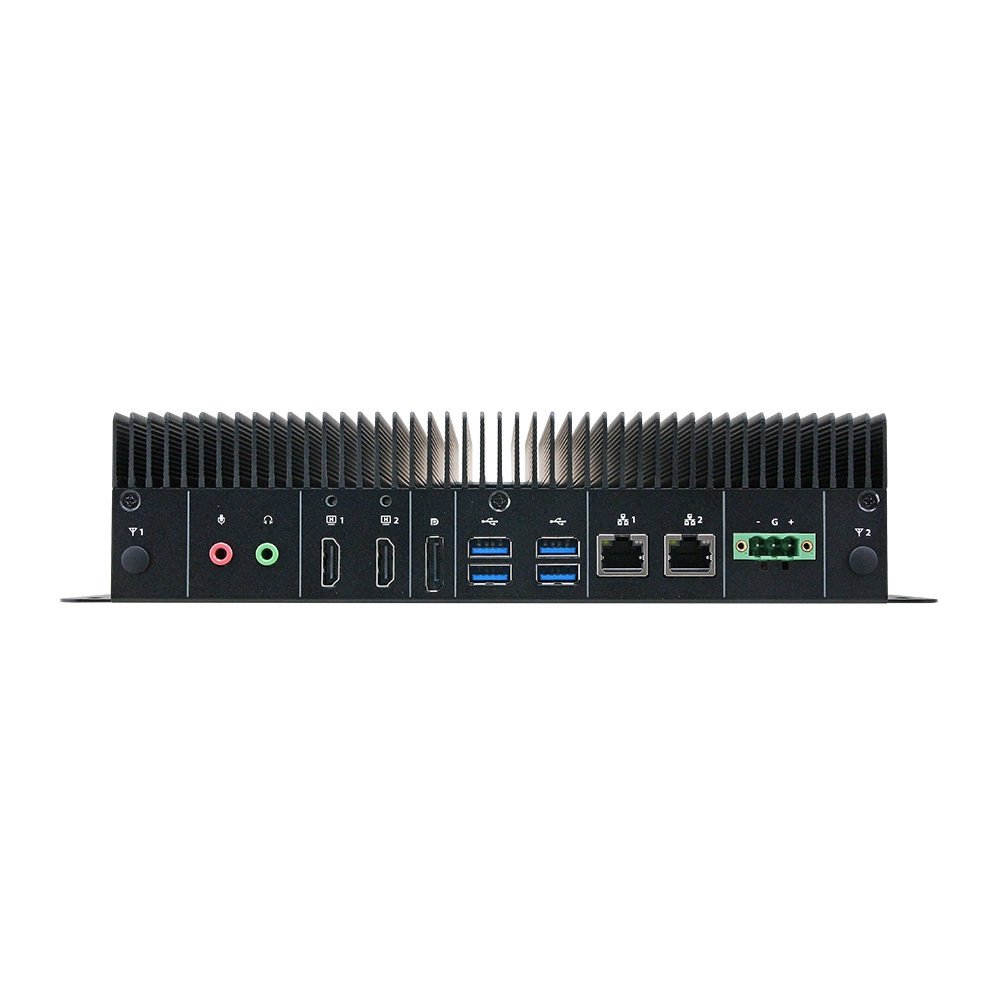

EMS-ARH
Intel® Core™ Ultra 7/5 Processor (Arrow Lake-H Platform) Fanless Rugged Embedded System
- Qualified Intel® AI Edge Systems
- Intel® Core™ Ultra 7 Processor 255H (28W), Intel® Core™ Ultra 5 Processor 225H (28W), Arrow Lake-H Platform
- Integrated Intel® Arc™ GPU
- Intel® AI Boost (NPU)
- 2 x SO-DIMM sockets support up to 64GB DDR5 6400MT/s
- 2 x DP++ 1.4, 1 x HDMI 2.0b, supports 3 independent displays
- Dual Intel® Ethernet Controller I226-IT 2.5GbE LAN ports
- 2 x external COM ports, 1 x external GPIO
- Support 5G (Sub-6G) module, M.2 NVMe SSD Gen4 x4
- Fanless operation Temperature from -40°C ~ 50°C
- Wide range DC power input from +9~36V
- TPM 2.0, iAMP (selected CPU), IP50
- Flexible IO interfaces via IET interface (1 x DDI, 4 x PCIe Gen4x1, 3 x USB2.0, 1 x SMBus, eSPI)

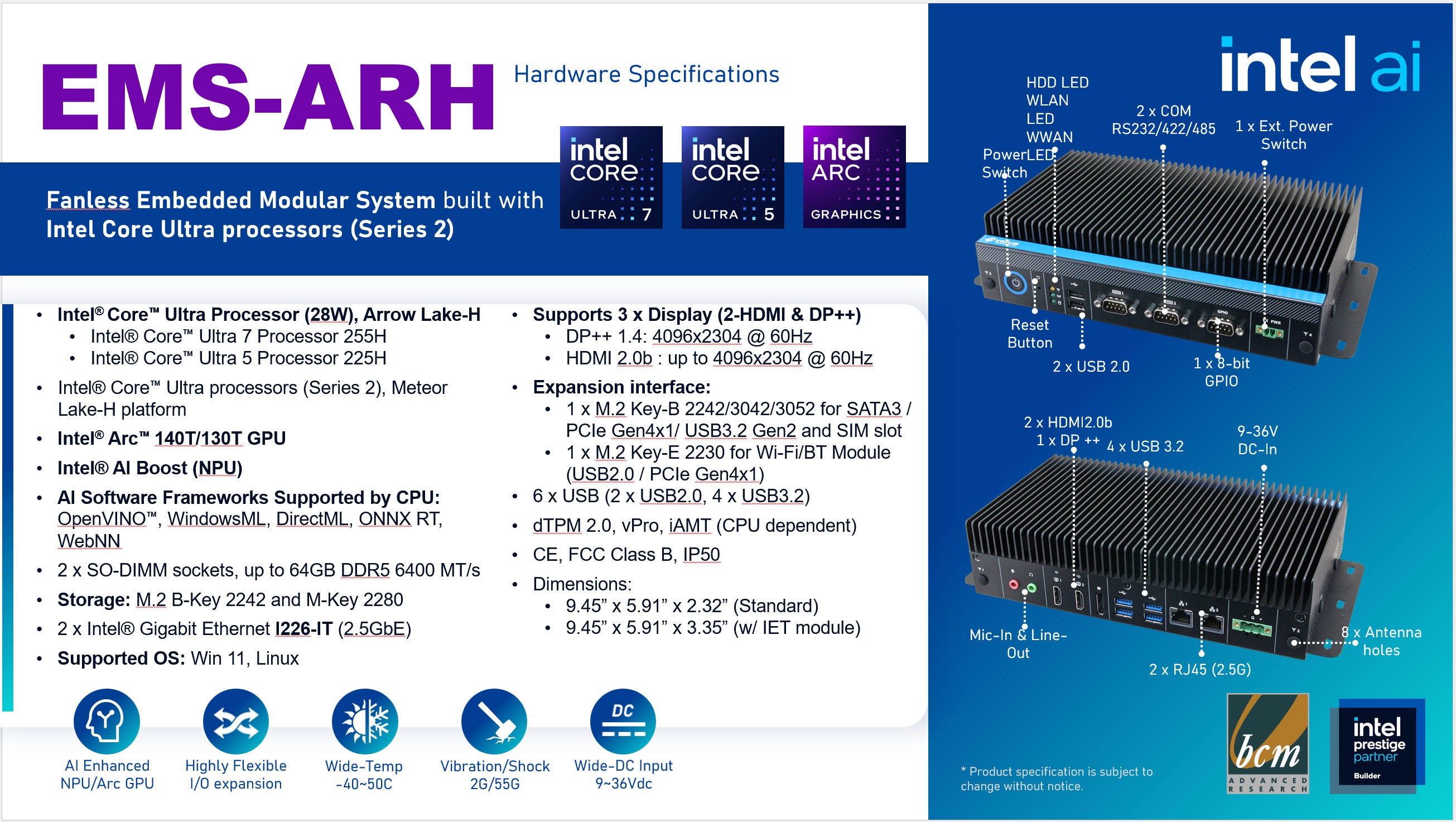

Qualified Intel® AI Edge Systems
The EMS-ARH, powered by Intel® Arrow Lake, delivers the next generation of edge AI computing with up to 99 TOPS and a 3× AI performance uplift over Meteor Lake. By integrating CPU + GPU + NPU heterogeneous computing, it supports multi-channel AI workloads such as video analytics, voice recognition, and sensor fusion — all with low latency and high energy efficiency.
Built with IPC-grade reliability, the platform is engineered to withstand wide-temperature operation (-40 °C ~ +50 °C), vibration resistance (2 G), and shock resistance (55 G), making it ideal for mission-critical edge applications.
Application example 1

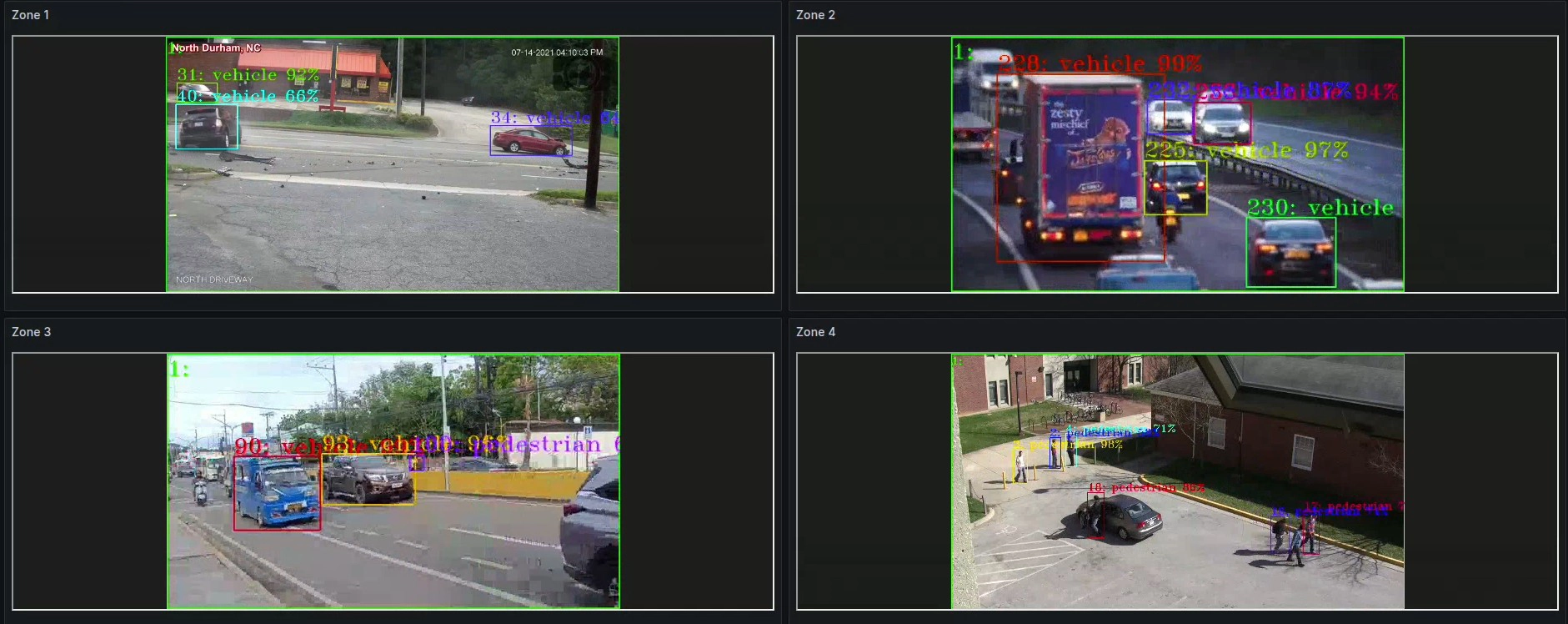

Intelligent Traffic Monitoring
-
Multi-channel Video AI:
Simultaneous detection of vehicle speed, vehicle type (sedan, truck, bus, motorcycle), and license plates.
-
Edge Real-time Processing:
Analysis is performed locally on the Arrow Lake platform for low latency, making it ideal for highways and intersections.
Application example 2

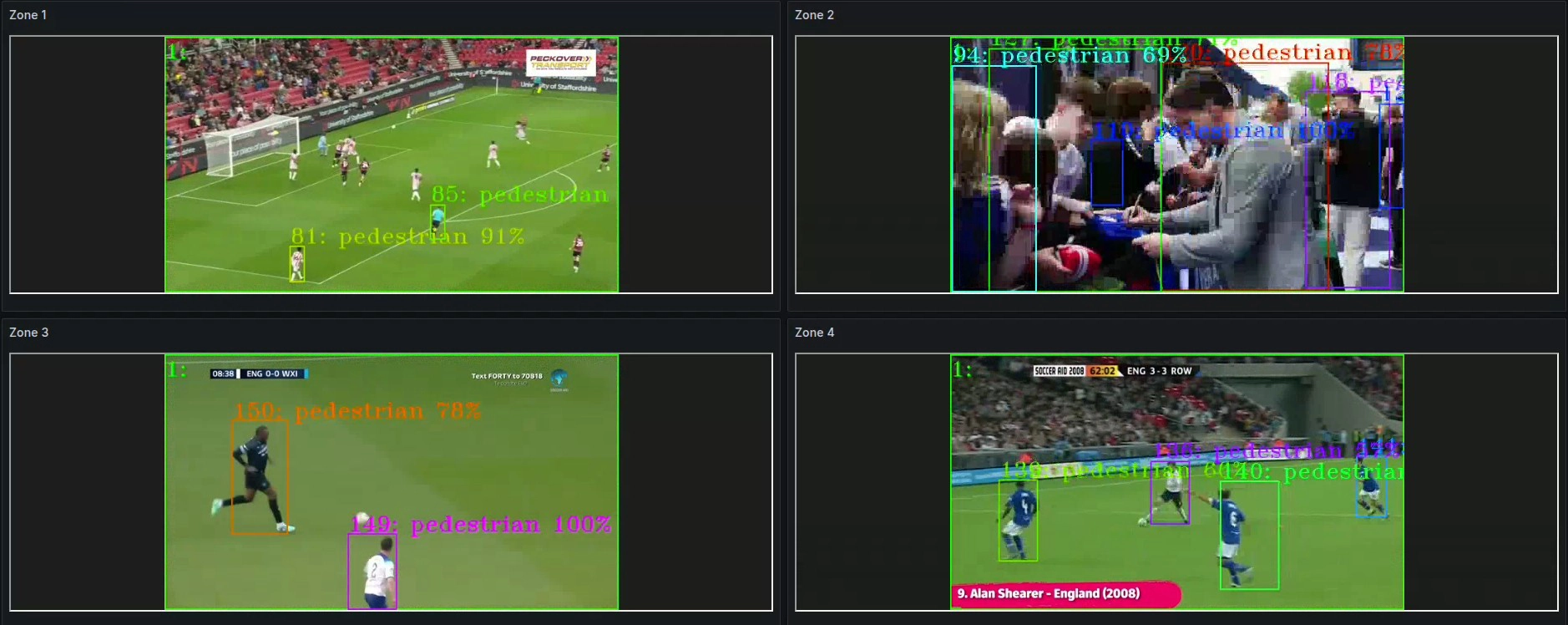

Real-time Player & Ball Tracking
-
Multi-object Tracking:
Simultaneous recognition of each player and the ball’s position, speed, and trajectory.
-
Multi-channel Data Fusion:
Combines video streams with sensor or commentary data for deeper, more comprehensive analysis.
-
Sports Applications:
-
Soccer: AI generates heat maps and pass completion rates.
-
Basketball: Tracks player acceleration, shooting release points, and scoring statistics.
-
Baseball: Analyzes pitch trajectory, ball speed, and batting angle detection.
-
