BI3370-610H Industrial Computer BI3370-610H Industrial Computer BI3370-610H Industrial Computer BI3370-610H Industrial Computer

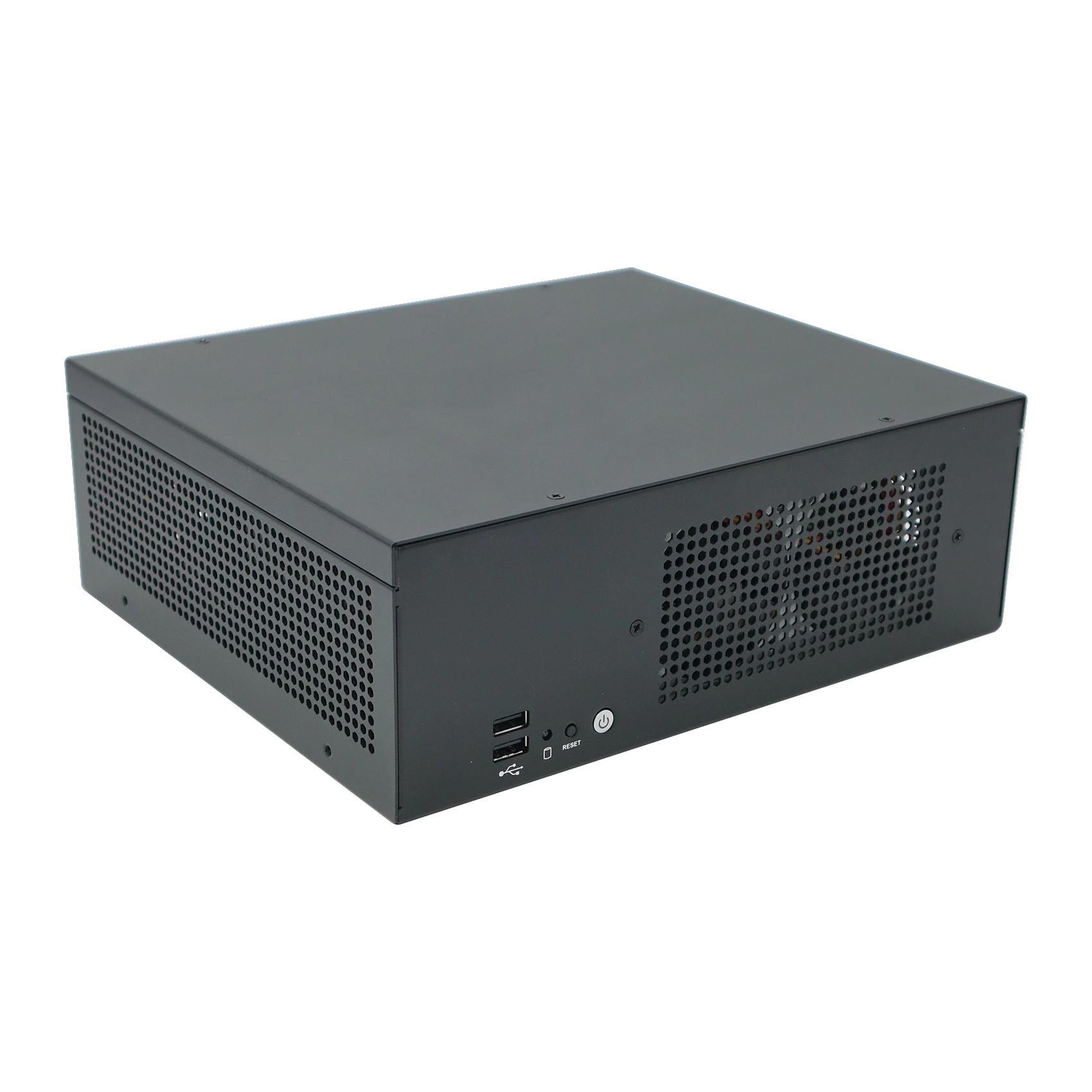

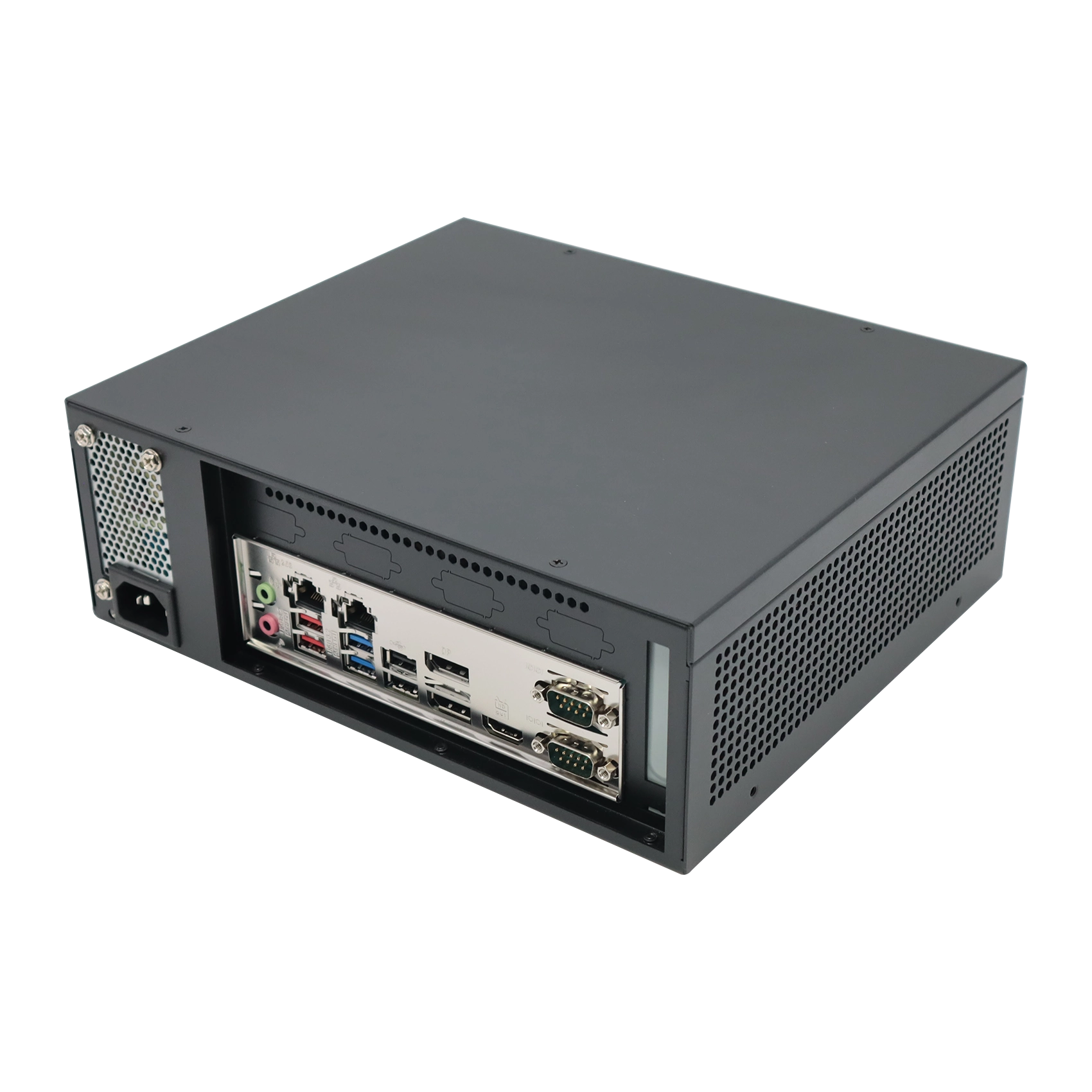

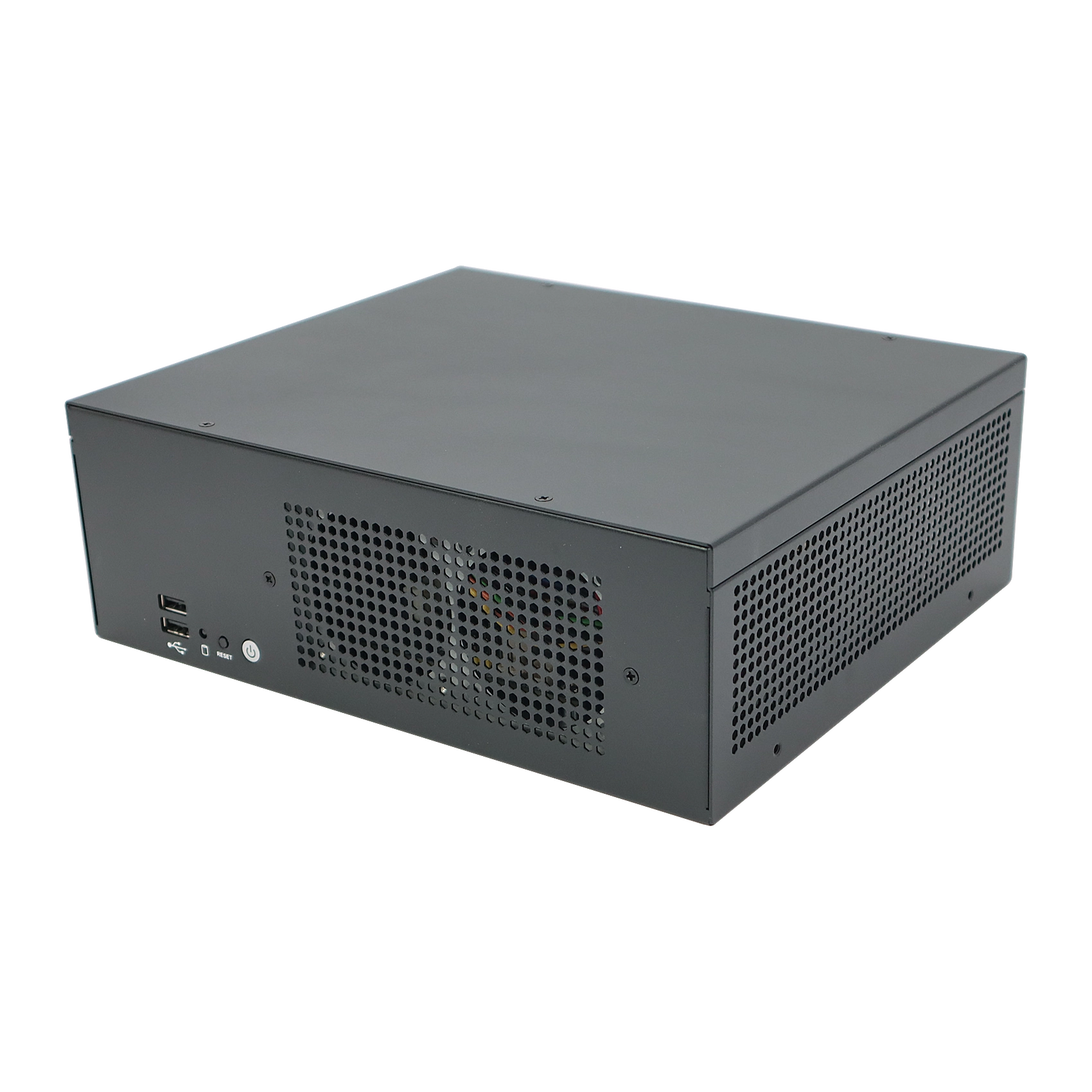

BI370-610H

Mini-ITX Barebone Computer supports 12th/13th/14th Gen Intel® Core™ i 9/7/5/3 Processor, supports HHHL PCIe x16 add-in card
  • Motherboard: MX610H Mini ITX Motherboard Inside
  • Supports 12th/13th/14th Gen Intel® Core™ i 9/7/5/3 Processor
  • Intel® H610E PCH
  • 2 x SO-DIMM sockets support Dual Channel DDR5 memory speed up to 5600MHz (CPU dependent), up to 64GB
  • 1 x Gen 4 PCIe x16
  • TPM 2.0
  • Supports 3 Independent Displays (2 x DP, 1 x HDMI)
  • 2 x RJ45 LAN Ports (one 2.5GbE, one 1GbE)
  • 4 x USB 3.2 (Rear side), 4 x USB 2.0 (2 Front, 2 Rear side)
  • 2 x COM ports
  • Optional 4 x COM ports at rear I/O side
  • ATX Power
  • HHHL PCIe x16 Expansion Slot supports half-height, half-length add-in card
  • 8.5” L x 10.00” W x 3.42” H
Related Product(s)

Advanced 14th Gen Intel® Architecture with Flexible Industrial I/O.

Scalable 12th–14th Gen Intel® Core™ Architecture

Engineered for industrial reliability, this barebone system supports LGA 1700 socket processors, accommodating 12th, 13th, and 14th Gen Intel® Core™ i9/7/5/3, Pentium, and Celeron processors with up to 16 Cores and 24 Threads. This processing capability is paired with dual-channel DDR5 memory sockets, supporting speeds up to 5600MHz and capacities up to 64GB, depending on the CPU generation.

BI370-610H Barebone Computer

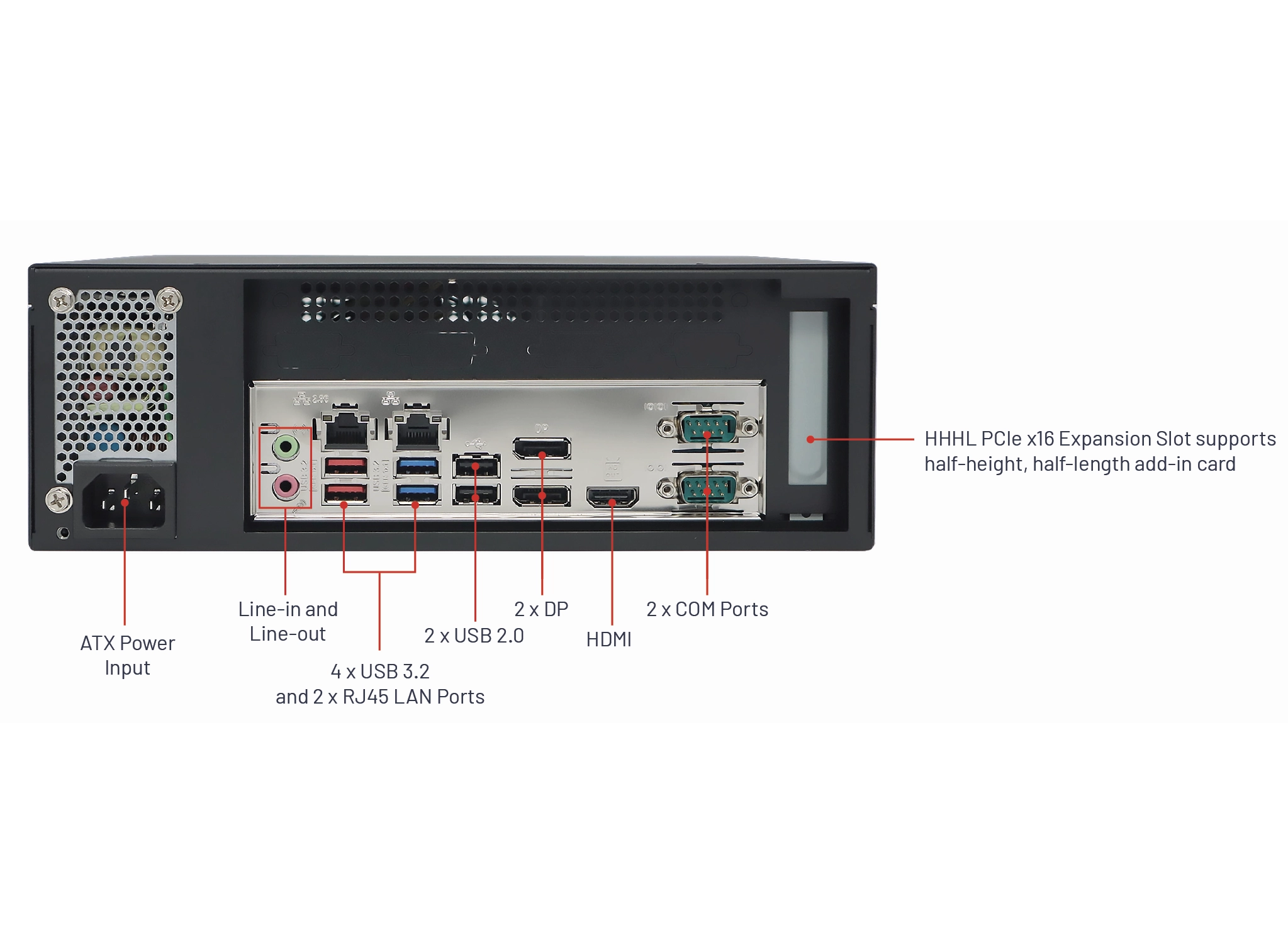

BI370-610H Barebone Computer rich IO

High-Speed I/O and Gen 4 PCIe Expansion

Designed for adaptable hardware integration, the BI370-610H provides extensive connectivity, including support for three independent displays via two DisplayPort connections and one HDMI output. Additionally, it features high-throughput networking with dual RJ45 LAN ports (including one 2.5GbE controller) and supports a Gen 4 PCIe x16 slot with half-height, half-length (HHHL) expansion capabilities.

Flexible Industrial Serial Connectivity

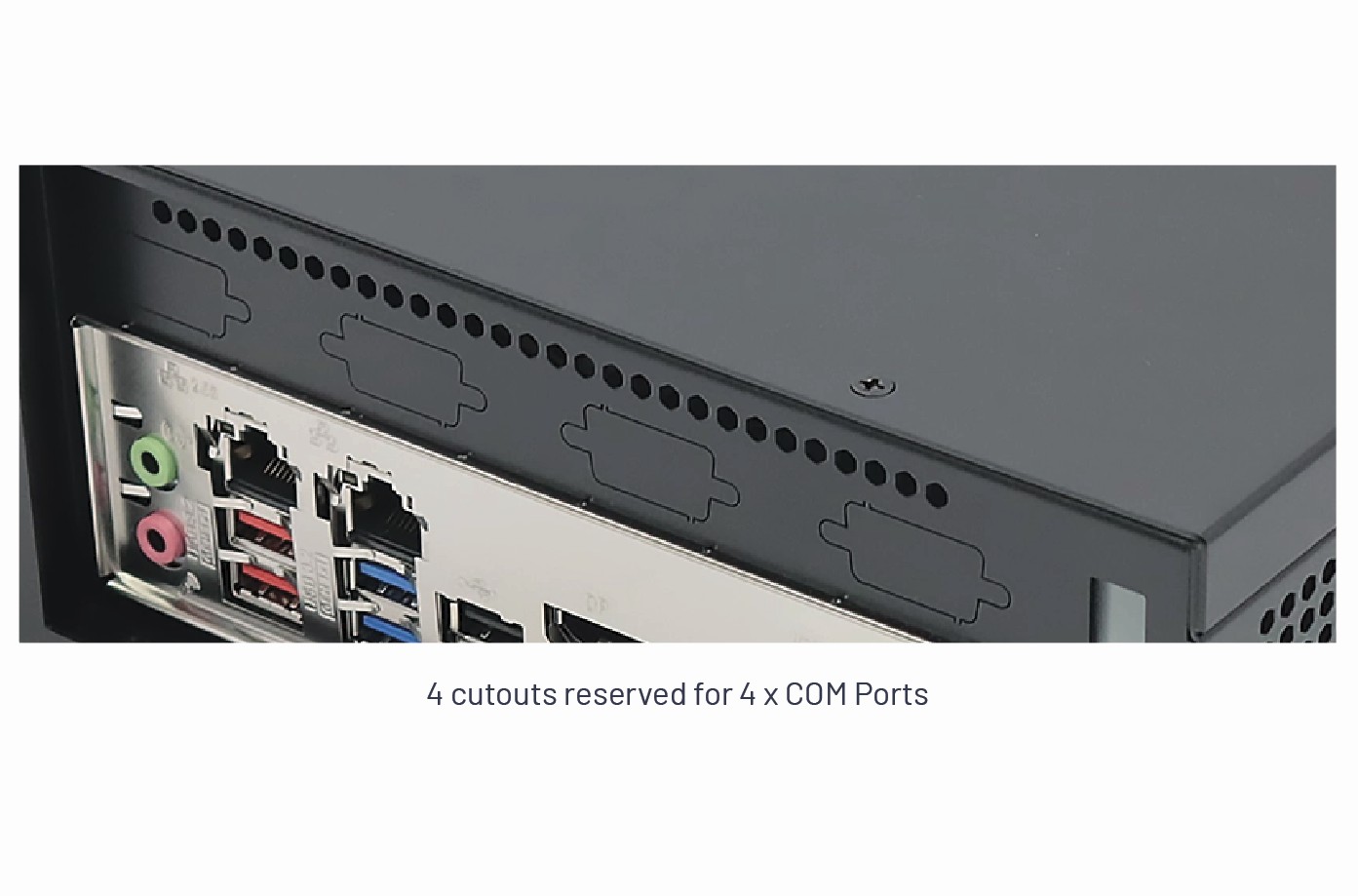

Engineered for robust legacy hardware integration, the system includes two native RS-232/422/485 COM ports. To accommodate specialized industrial applications requiring extensive serial communication, the rear I/O features reserved cutouts supporting an optional expansion of four additional COM ports.

BI370-610H Barebone Computer rich IO

System
Motherboard Inside MX610H Mini ITX inside
CPU LGA 1700 socket supports 12th Gen Alder Lake/ 13th Gen Raptor Lake/ 14th Gen Raptor Lake Refresh Intel® Core™ i 9/7/5/3, Pentium, Celeron Processors up to 16 Cores 24 Threads Hybrid
System Chipset Intel® H610E PCH
System Memory 2 x SO-DIMM sockets support Dual Channel DDR5 memory speed up to 5600MHz, up to 64GB
12th Gen Intel Core CPU: up to DDR5 4800 MT/s (CPU dependent)
13th Gen Intel Core CPU: up to DDR5 5600 MT/s (CPU dependent)
14th Gen Intel Core CPU: up to DDR5 5600 MT/s (CPU dependent)
Display Intel® UHD Graphics
Ethernet LAN 1: Intel® Ethernet Controller I219-LM
LAN 2: Intel® Ethernet Controller I225-V (2.5GbE)
Audio Realtek HD Audio
Expansion 1 x Gen4 PCIe x16 slot
1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III)
1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 + USB 2.0)
TPM TPM 2.0
OS Support Windows 10, Windows 11, Linux
External I/O - Front
USB 2 x USB 2.0
Power 1 x Power Button
Other 1 x Reset Button
1 x HDD LED Indicator

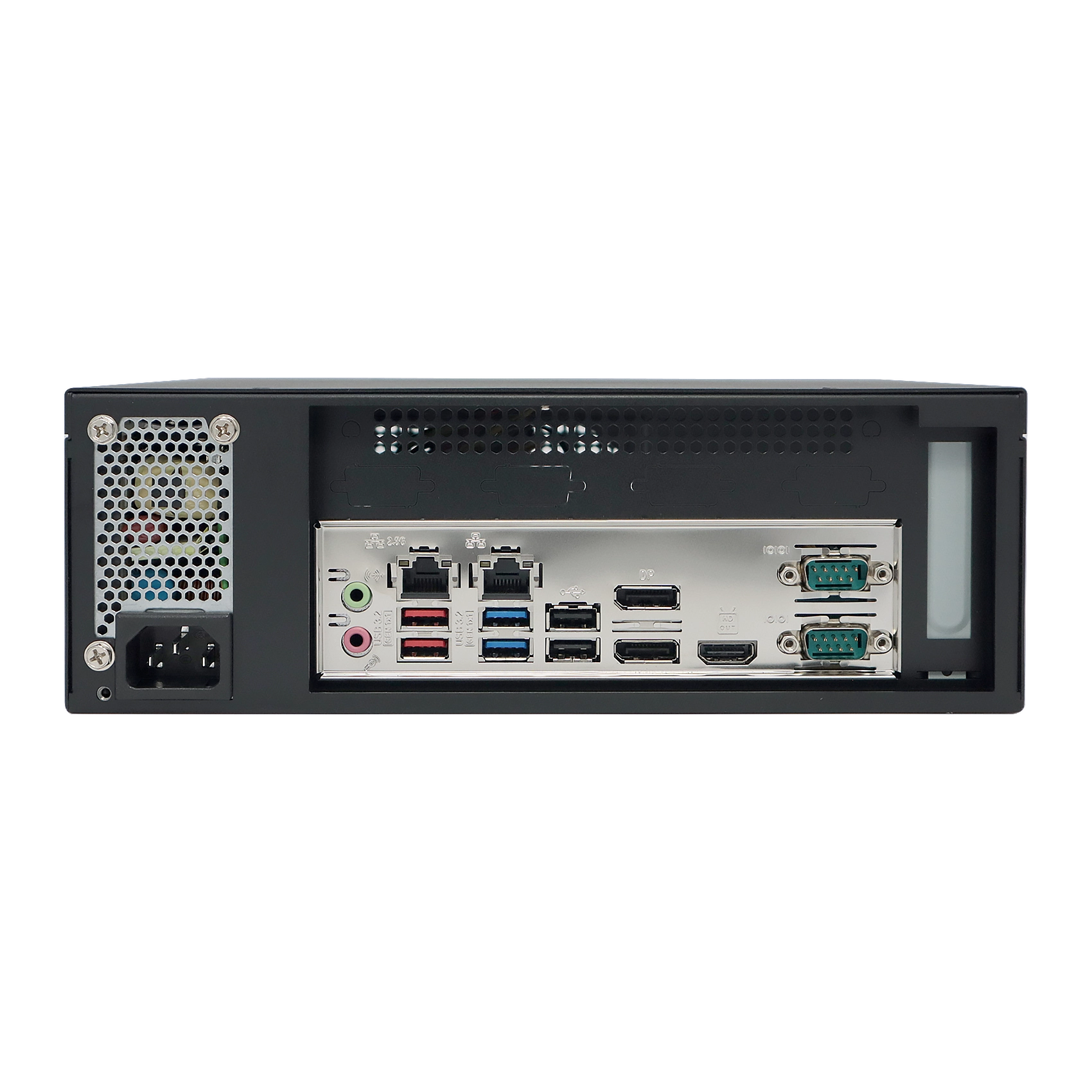

External I/O - Rear
Display 1 x HDMI
2 x DP++
USB 4 x USB 3.2
2 x USB 2.0
LAN 2 x RJ45
Audio Line-out, Mic-in
COM Port 2 x RS-232/422/485
Optional 4 x COM ports
Power Connector ATX Power Input
Expansion HHHL PCIe x16 Expansion Slot supports half-height, half-length add-in card
Mechanical and Environment
Power Rating 300W ATX
* Power Adapter is not included.
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20° C ~ 80° C (-14°F ~ 176°F)
Operation Humidity 5% to 95% non-condensing
Chassis Fans 2x Chassis Fans
Certification Information CE, FCC Class A, RoHS Compliant
Dimensions 8.5” L x 10.00” W x 3.42” H
Weight 5 lbs

* All product specifications and product images are subject to change without notice. Last update: 10/06/2025

Document
Datasheet
Driver Description
Note The BI370-610H is equipped with the MX610H Mini-ITX motherboard inside. Please check MX610H product page for drivers and manual.
Date Description Download
Note The BI370-610H is equipped with the MX610H Mini-ITX motherboard inside. Please check MX610H product page for Product Change Notice.
Model Name Description
BI370-610H Barebone Computer with MX610H Mini ITX inside. Power Adapter is not included. Please contact BCMSales@bcmcom.com for more information
