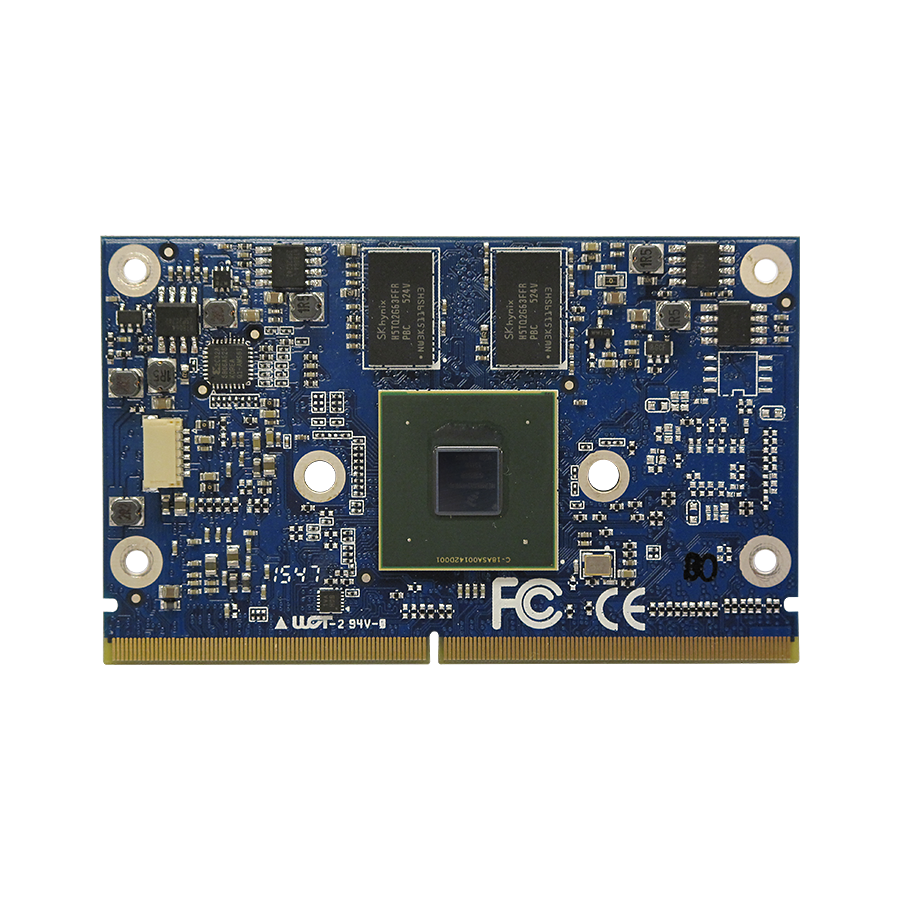

SMA-IMX6CS NXP i.MX6 ARM Cortex A9 Solo Core 1 GHz SMARC Module

SMA-IMX6CS

NXP i.MX6 ARM Cortex A9 Solo Core 1 GHz SMARC Module

  • Onboard NXP i.MX 6 Solo Core 1 GHz Processor Onboard
  • 1 GB DDR3L Memory
  • eMMC 4 GB On-module Storage
  • Support One PCIe x1
  • Optional additional Three PCIe x1, can support up to total four PCIe x1
  • Support One Gigabit LAN, optional second LAN
  • 2 x CAN Bus, 3 x I2C, 1 x I2S, 12 x GPIO Interfaces
  • Supports Android, Linux and Yocto OS
  • Cost Effectiveness SMARC Module

SMA-IMX6CS SMARC module comes standard with the i.MX6 i GHz Solo Core processor, 1 GB DDR3L, and 4 GB eMMC storage onboard. It is target to OEMs that require quick time to market with low design risk and cost effectiveness for their highly custom board design solutions.

System
CPU NXP i.MX6 ARM Cortex A9 Solo Core 1GHz Processor Onboard
Graphics OpenGL® ES 2.0 and OpenVG™ 1.1 Hardware Accelerators & Multi-Format HD1080p Video Decoder and HD720p Video Encoder Engine
Memory 1 GB Onboard DDR3 Memory (Up to 2 GB Max)
Flash 4GB eMMC Onboard
Ethernet Micrel® KSZ9031 Gigabit Ethernet
USB 1 x USB 2.0 Signal and 1 x USB OTG Signal
Display 1 x LVDS Interface, 1 x MIPI-DSI Interface
Image Capture Interfaces 1 x MIPI-CSI Interface
Serial Port 2 x COM Interface
Additional Interfaces 1 x Parallel LCD, 1 x Ethernet, 1 x SATA, 1 x PCIe x1 Channel, Optional 3 x PCIe x1 Channel, 1 x SPI, 2 x CAN Bus, 3 x I2C, 1 x I2S, 12 x GPiO, Module Input DC-in Power, GND Grounds
OS Support Android, Linux, Yocto
Mechanical and Environment
Thermal 0°C to 60°C
Power Supply 3V to 5.25V - Operates Directly from Single Level; Lithium Ion Cells, or Fixed 3.3V or 5V Power Supplies
Form Factor SMARC Module
Dimensions (L) x (W) 3.23" x 1.97" (82mm x 50mm)
Compliance: SMARC (Smart Mobility Architecture), Specification by SGET
Weight 0.8 oz

* All product specifications and product images are subject to change without notice. Last update: 4/27/2016

Document
Datasheet
Manual
Model Name Description
SMA-IMX6CS NXP i.MX6 1GHz Solo Core Processor Onboard, 1GB DDR3L, 4GB eMMC. Support Standard Temperture
