BCM RX880W uATX Motherboard: Next-Gen Industrial Platform
Powered by 15th Gen Intel® Core™ Ultra Processors (Series 2) with Integrated GPU+NPU and High-Speed I/O for Embedded AI Edge Solutions

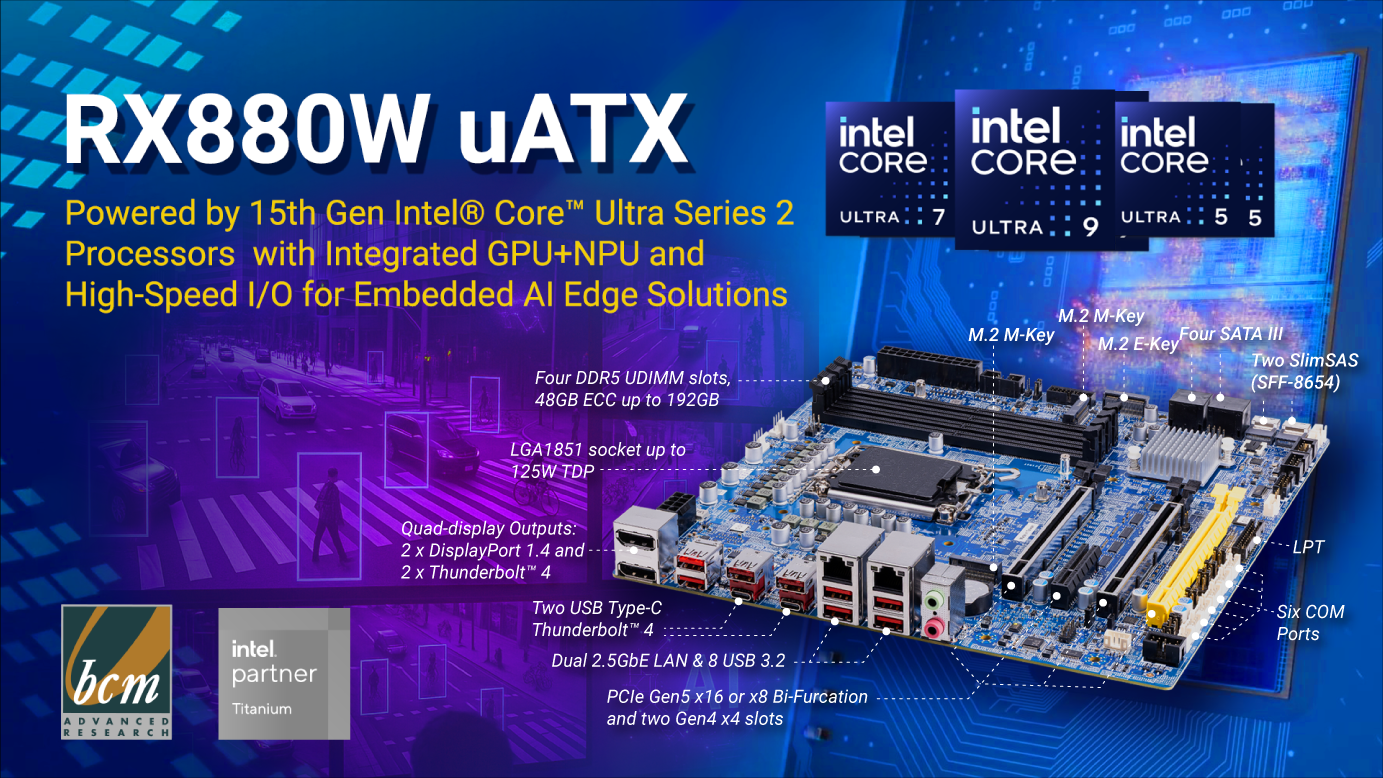

The BCM RX880W is a new Micro ATX motherboard built on Intel’s latest Core Ultra platform, formerly known as Arrow Lake-S/Arrow Lake-S Refresh, pairing the Intel® W880 chipset with the LGA1851 socket to support the 15th Gen Intel® Core™ Ultra processors (Series 2). This board is designed to deliver cutting-edge performance while retaining robust legacy support, making it ideal for hardware and system engineers in the fields of medical & healthcare, industrial & automation, smart retail, digital signage, intelligent Kiosk, Edge AI server, security, and electronics distributors seeking next-generation solutions.

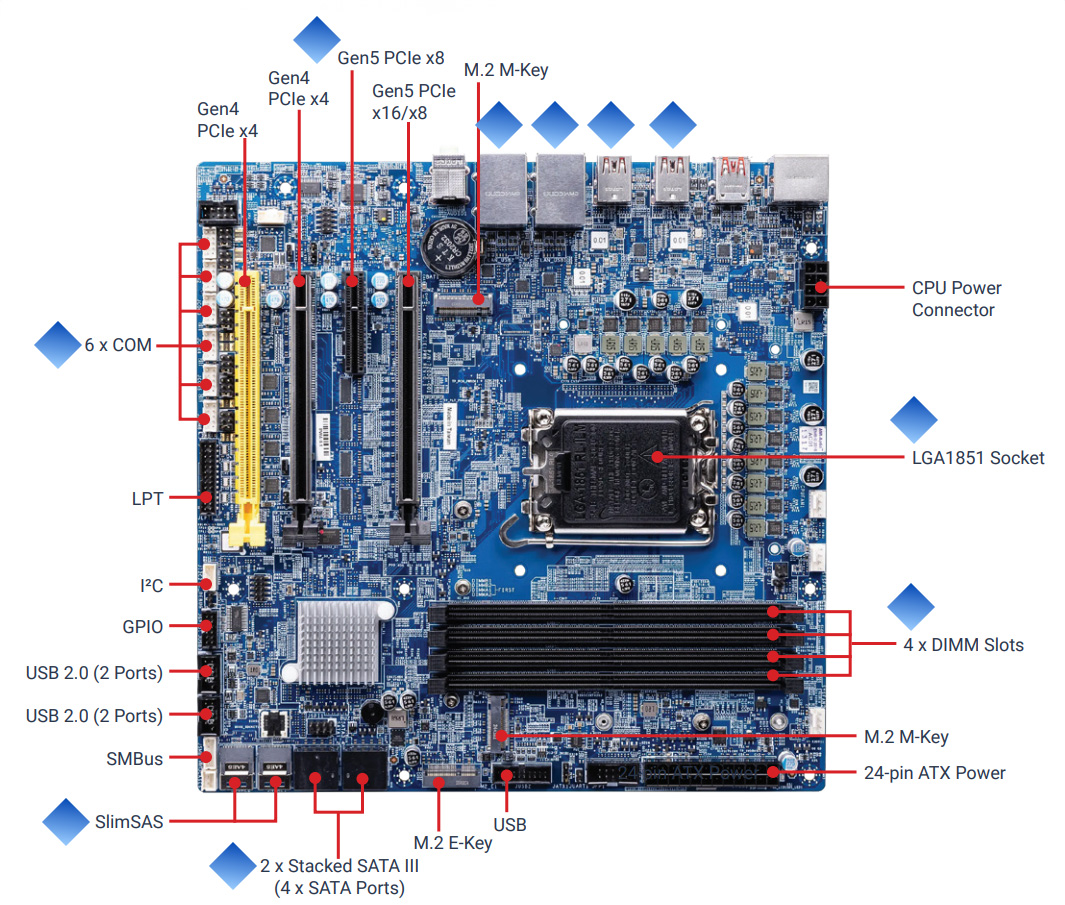

RX880W uATX New Design Features for Edge AI Computing and Compact Storage Servers
🔹 High-Performance with AI enabled CPU Support:
LGA1851 socket supports Intel’s latest Core™ Ultra 5/7/9 processors (Series 2), up to 125 W TDP
🔹 Dual SlimSAS Connectors – High-Speed Storage in Compact Systems

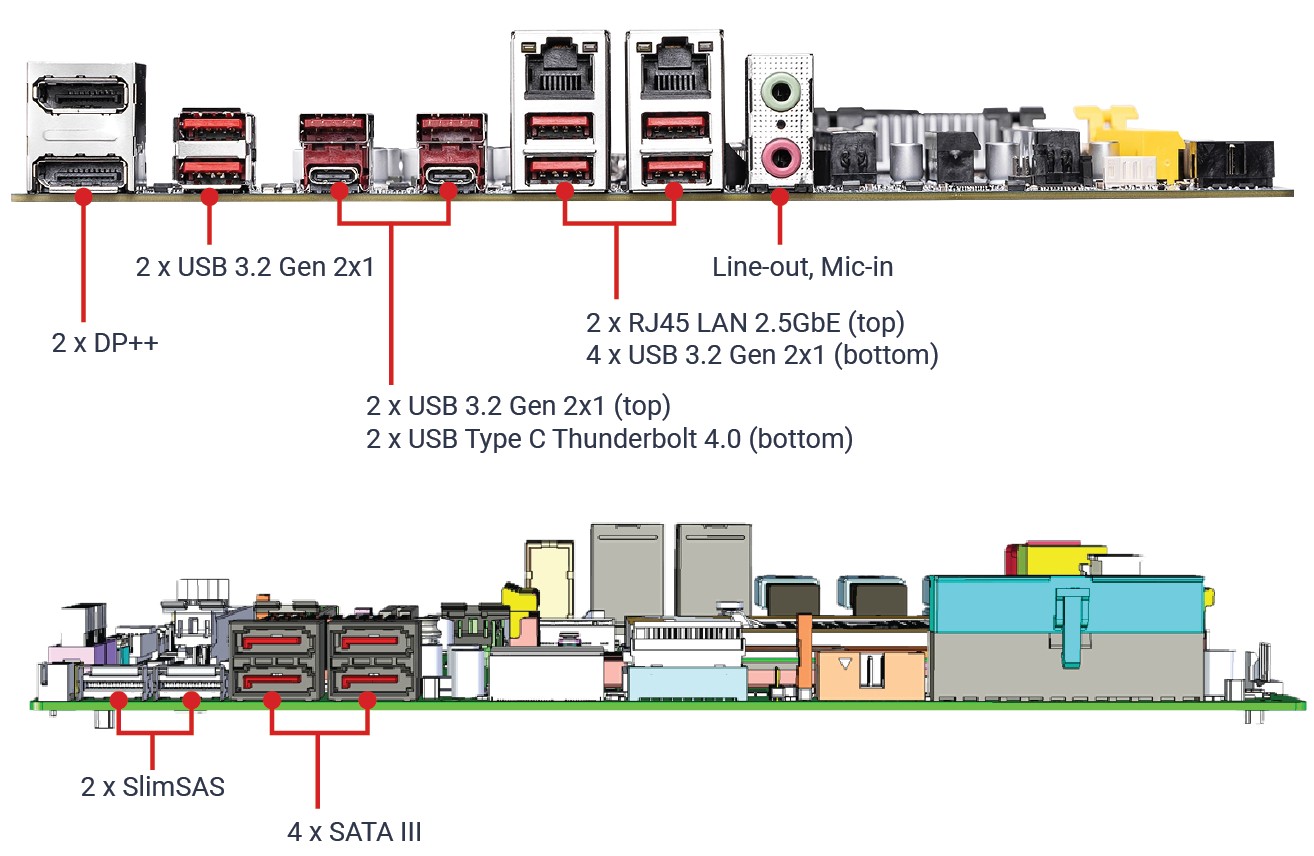

The RX880W integrates two SlimSAS (SFF-8654) connectors—a standout feature rarely seen on industrial Micro ATX motherboards. Each SlimSAS supports PCIe Gen4 x4, enabling flexible, high-bandwidth storage options ideal for dense, compact edge and storage platforms.
🔹Quad-display Outputs support via 2 x DisplayPort 1.4 and 2 x Thunderbolt™ 4 (USB-C)
🔹 PCIe Gen5 x16 or x8 Bi-Furcation and two Gen4 x4 slots
Delivers next-generation throughput for GPUs, FPGAs, or AI accelerators, with double the bandwidth of PCIe Gen4 in the same slot width—well-suited for performance-critical edge workloads.
🔹 2 Stacked Right-Angle SATA Connectors (4 x SATA III)
Space-efficient right-angle SATA layout improves cable management and airflow, making it easier to integrate multiple drives into tight enclosures or front-accessible bays in industrial systems.
🔹 4 x DDR5 UDIMM slots taking 48GB ECC modules, supporting up to 192GB total
Supports newer 48GB ECC UDIMM modules, enabling up to 192GB total memory—ideal for high-capacity, high-reliability applications such as AI inference at the edge, industrial vision systems, medical imaging workstations, compact virtualization hosts, and EDA/simulation workloads.
🔹 Networking:
Dual Intel® Ethernet Controller I226-LM (2.5GbE) LAN ports with Intel vPro/AMT support
🔹 2 x M.2 M-Key NVMe sockets (PCIe x4), and 1 x M.2 E-Key
Accommodate NVMe SSDs for fast storage, and 1 x M.2 E-Key slot supports Wi-Fi/ Bluetooth modules
🔹 I/O Interfaces:
8 x USB 3.2 Gen2, 2 x USB Type-C with Thunderbolt™ 4, 6 x COM ports (RS-232/422/485)
🔹 TPM 2.0
for hardware security and supports Intel AMT 19 (Active Management Technology) enabling out-of-band management for field service and remote troubleshooting🔹 Industrial-Grade Features:
The micro ATX (9.6”×9.6”) form factor balances expansion capacity with integration into space-constrained enclosures
What’s New in Intel’s 15th Gen Core Ultra Platform
🔹 Next-Gen CPU Architecture
Lion Cove P-cores and Skymont E-cores deliver higher IPC and better power efficiency vs. 14th Gen, enabling faster compute across workloads.
🔹 Integrated AI Acceleration
On-chip Intel AI Boost (NPU 4) delivers up to 13 TOPS of AI inference performance, while the full platform—leveraging CPU, GPU, and NPU—achieves up to 36 total AI TOPS, minimizing the need for external accelerators in edge AI applications.
🔹 Upgraded Xe-LPG Graphics
Enhanced Intel Xe GPU supports up to 4 independent displays and modern formats (DP 2.1, HDMI 2.1, Thunderbolt 4), ideal for rich visual deployments.
Competitive Landscape
In the Arrow Lake-S Micro ATX class, the RX880W stands toe-to-toe with other W880-based motherboards, delivering the expected high-end features of this platform. Like comparable boards, it supports up to 192 GB ECC DDR5 memory and multiple PCIe Gen5 slots to accommodate advanced GPUs or accelerator cards. Cutting-edge I/O such as Thunderbolt 4, abundant USB 3.2, and dual 2.5GbE LAN are in line with industry standards for this generations. The RX880W distinguishes itself by balancing modern connectivity and legacy support – for example, providing dual Thunderbolt 4 ports alongside six serial COM ports on one board – a combination that ensures both state-of-the-art bandwidth and backwards-compatible integration for peripherals. This blend of features positions the RX880W as a versatile solution that meets or exceeds the feature set of its peers, giving developers a robust and reliable Arrow Lake platform without trade-offs.
Industry Applications
- Edge Computing & AI Inference:
Take advantage of the Core Ultra processor’s computing power (and potential AI accelerators on the CPU die) along with the PCIe Gen5 x16 slot to add a GPU or FPGA for AI inference at the edge. This makes the RX880W a strong fit for edge computing gateways or AIoT servers that aggregate data from cameras and sensors and perform local analytics (e.g. in smart city deployments or intelligent transportation systems). With dual 2.5GbE LAN ports, the board can handle high-bandwidth data streams or provide separate network links for segmentation. The onboard Thunderbolt 4 ports can also interface with high-speed storage arrays or specialized imaging equipment in laboratory or medical settings, expanding the system’s capabilities in the field.
- Industrial Automation:
The board’s ECC memory and wide I/O make it ideal for factory automation and control systems. Dual 2.5 GbE LAN provides fast networking for real-time data exchange, and the six COM ports interface with PLCs, sensors, or legacy machinery on the shop floor. The Micro ATX form factor offers ample expansion (for motion control cards, frame grabbers, etc.) without requiring a large chassis, fitting seamlessly into industrial cabinets or control consoles.
- Industrial Automation & Control:
Deploy the RX880W in factory automation controllers, robotic systems, or test and measurement equipment. The board’s multiple COM ports (RS-232/422/485) and GPIO make it easy to interface with PLCs, sensors, and legacy industrial devices. At the same time, its high-performance CPU and expansion slots (for motion control cards, data acquisition, or FPGA accelerator cards) enable real-time processing and analysis on the shop floor. ECC memory support and robust build quality help maintain system stability in harsh 24/7 operating conditions such as manufacturing plants or utilities.
- Digital Signage & Video Walls:
Leverage the board’s ability to drive up to four independent 4K displays simultaneously. The powerful integrated graphics (Intel Xe LPG architecture) and Thunderbolt 4/DisplayPort outputs make it ideal for multi-screen signage, informational displays, or video wall controllers in retail stores, transportation hubs, and corporate lobbies. High-speed storage and network connectivity ensure smooth content streaming and remote updates.
- Retail POS Systems & Kiosks:
Utilize the abundant USB ports and serial COM headers to connect barcode scanners, receipt printers, touchscreens, and other peripherals in point-of-sale terminals or self-service kiosks. The RX880W’s compact micro-ATX size can fit into kiosks or under-counter POS chassis, while features like ECC memory and TPM 2.0 provide the reliability and security needed for financial transactions. The dual 2.5GbE LAN allows for network redundancy or separate POS and digital signage networks in a store.
In summary, the BCMRX880W Micro ATX motherboard is a versatile, next-generation solution for embedded and industrial projects that demand a balance of performance, rich connectivity, and reliability. Its combination of Intel’s latest Arrow Lake processing power, comprehensive expansion options, and robust I/O makes it a compelling choice for integrators and distributors looking to design future-ready systems in industries ranging from retail and signage to factory automation and edge computing. With long-life supply support and a design tailored for always-on industrial operation, the RX880W helps ensure that new projects can launch on a solid foundation that will be supported for years to come.
For more product information please contact your BCM Regional Sales Managers or contact us BCMSales@bcmcom.com. For custom design, please visit our OEM/OEM Design Services
📨 Email: BCMSales@bcmcom.com
🌐 Website: https://www.bcmcom.com
