Product End of Life (EOL) Notification

This product has reached the end of its lifecycle and is no longer available for new deployments. If you are looking for a replacement, please contact our team to explore our current lineup at BCMSales@bcmcom.com.

NUC-APL-SLIM Intel Celeron J3455/N3350 Processor Apollo Lake Fanless NUC Slim System NUC-APL-SLIM Intel Celeron J3455/N3350 Processor Apollo Lake Fanless NUC Slim System

NUC-APL-SLIM

Intel® Celeron® J3455 Processor Apollo Lake Fanless NUC Slim System

  • Intel® Celeron® J3455 Processor Onboard
  • Single DRAM Socket supports up to 8GB DDR3L 1866MHz system memory
  • Rich I/O: 1 x COM, 2 x HDMI, 2 x LAN, 4 x USB 3.0, 1 x Audio Jack, 2 x antenna mounting holes with dust cover
  • M.2 B-Key and M.2 E-Key
  • Fanless Operating from 0°C ~ 50°C
  • DC Power Input +12V
  • Compact Size 4.53” x 4.37” x 1.77”
  • VESA or Din-Rail Mounting Kit
  • Optional TPM 2.0
  • Supports Win 10, Linux OS

NUC-APL-SLIM Ultra-compact FCC Class A NUC PC/NUC Computer for Light Industrial Applications


Small yet Powerful

The NUC-APL-SLIM is a palm size industrial computer designed with the Intel® Celeron J3455/N3350 platform, codenamed Apollo Lake. Measuring only 4.5”x4.4”x1.77”, this tiny computer has many features that differentiates it from the many other similar NUC-type products in the market. These features include 100% fanless operation, optional TPM 2.0, SIM card slot, lockable DC jack, and an operating temperature up to 50°C.

Smart Gateway for AIoT

Factory automation, smart agricultural and farming systems

Smart Education

Distance Education Equipment

Medical & Healthcare

Deep Learning CT Scanner Display Unit

Smart Retail

Portable Slim Kiosk with payment system

Mounting options

Multiple Mounting Options

The NUC-APL-SLIM has multiple mounting options including VESA and Din Rail and an extended product lifecycle for longevity support you can count on.

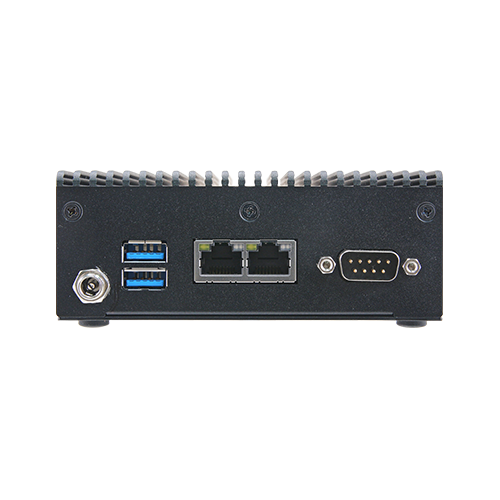

Robust External I/O

The NUC-APL-SLIM I/O interfaces include one COM port, two LAN ports, four USB 3.0, two HDMI, two antenna mounting holes, Mic-in + Line-out Combo, and a screw-locking 12V DC-in jack. With onboard integrated Intel® HD Graphics 500, this computer supports dual display via two HDMI ports.

Robust External I/O
System
CPU Intel® Celeron® J3455 Processor (2M Cache, up to 2.3 GHz)
System Memory 1 x 204-pin SODIMM socket supports up to 8GB 1866MHz DDR3L
BIOS AMI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
H/W Status Monitor Monitoring CPU Temperature, Voltage with Auto Throttling Control
Expansion 1 x M.2 (B-Key, 2242/3042, PCIe, SATA, USB 3.0, USB 2.0)
1 x M.2 (E-Key, 2230, PCIe, USB2.0)
OS Information Win 10, Linux
Display
Chipset Intel® HD Graphics 500
Resolution 2 x HDMI 1.4b: Max. Resolution 3840x2160 @ 30Hz
*1 x DP/DVI-I/VGA (Optional): Max. Resolution 1920 x 1080 @ 60Hz
*DP/DVI-I/VGA (Optional, replace the external COM port)
Multiple Display Supports Dual Display
Ethernet
Chipset Realtek RTL8111E Gigabit Ethernet
Ethernet Interface 10/100/1000 Base-Tx Gigabit Ethernet Compatible
LAN Port 2 x RJ45
Audio
Chipset Realtek HD Audio
Interface 1 x Audio Jack (Mic-in + Line-out Combo)
External I/O
Video Output 2 x HDMI
USB 4 x USB 3.0 (5Gbps)
COM Port 1 x RS-232/422/485
LAN 2 x RJ45
Audio 1 x Audio Jack (Mic-in + Line-out Combo)
Antenna 2 x Antenna Mounting with Dust Cover
Power Requirement
Adapter Input: 100 ~ 240Vdc/ 50 ~ 60Hz
Output: 12V/5A AC-DC 60W Adapter
Power Requirement +12V
DC Input Connector Lockable DC Jack
ACPI Single Power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant
Mechanical and Environment
Operating Temp -10°C ~ 40°C (14°F ~ 104°F) with 0.2m/s air flow
-10°C ~ 50°C (14°F ~ 122°F) with 0.5m/s air flow
Storage Temp -30~70C° (-22°F ~ 158°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Construction Aluminum + Metal
Mounting Kit VESA or Din Rail Kit
Vibration Protection With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis
Shock Protection With SDD : 55G, IEC 60068-2-27, Half Sine, 11ms, Z Axis
Drop ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces
Certification Information CE, FCC Class A, UKCA
Dimension (L x W x H) 4.53” x 4.37” x 1.77” (115mm x 111mm x 45mm)
Weight 0.72KG (1.59lbs)

* All product specifications and product images are subject to change without notice. Last update: 07/26/2023
