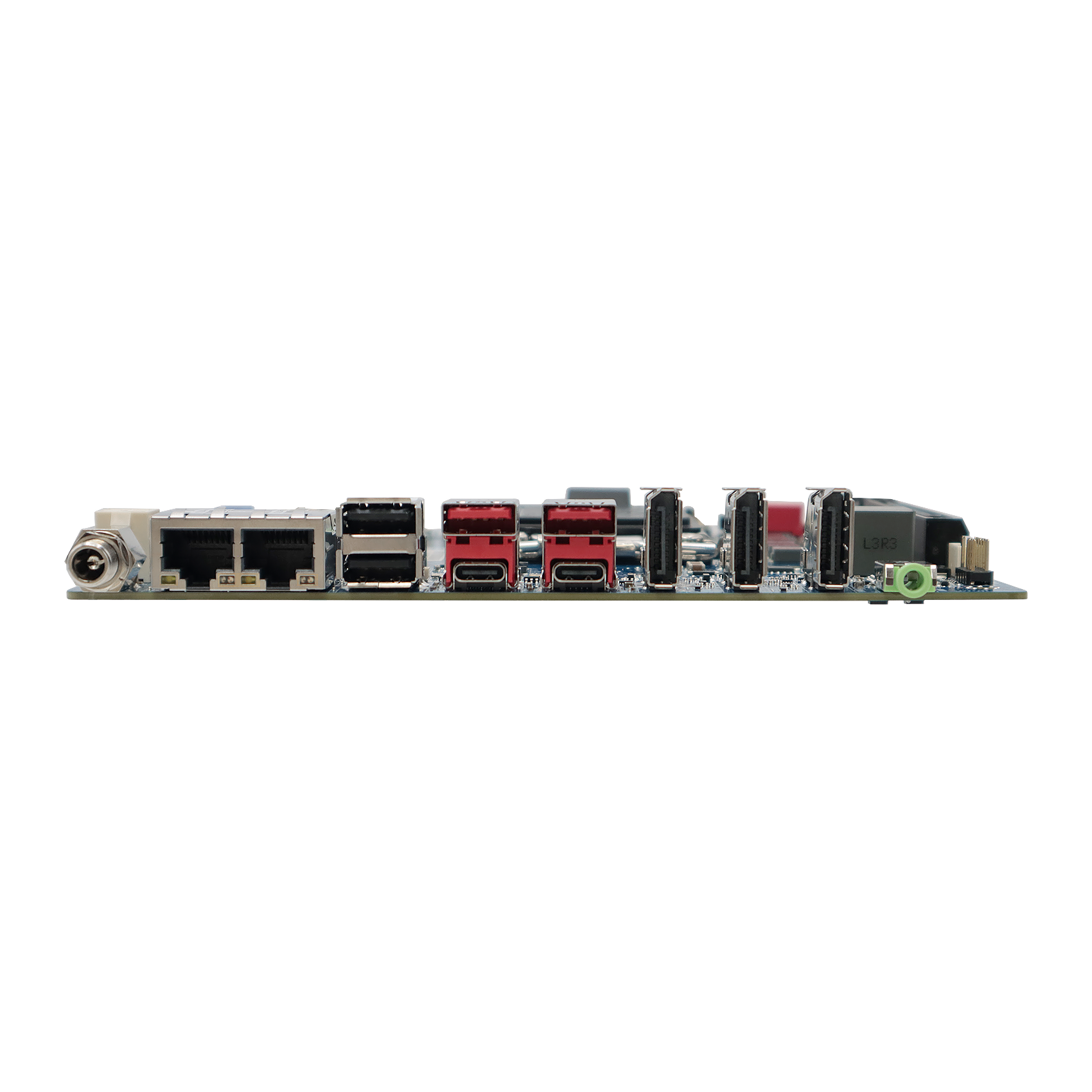

Dual USB Type C Ports
First Mini ITX that offers dual USB Typc-C at rear I/O. Versatile connectivity design, provides fast data transfer, power delivery, and video output.
This is an OEM Only product.
This product is marked as "OEM Only". OEM products are designed for OEMs with ongoing and consistent order requirements and subject to minimum order quantities. Evaluation units are available without such restrictions. BCM has multiple stocking distributors that may be able to work with OEMs to streamline product deliveries. Please contact BCMSales@bcmcom.com Sales for more information.
MX-MTLPS Sampling Now

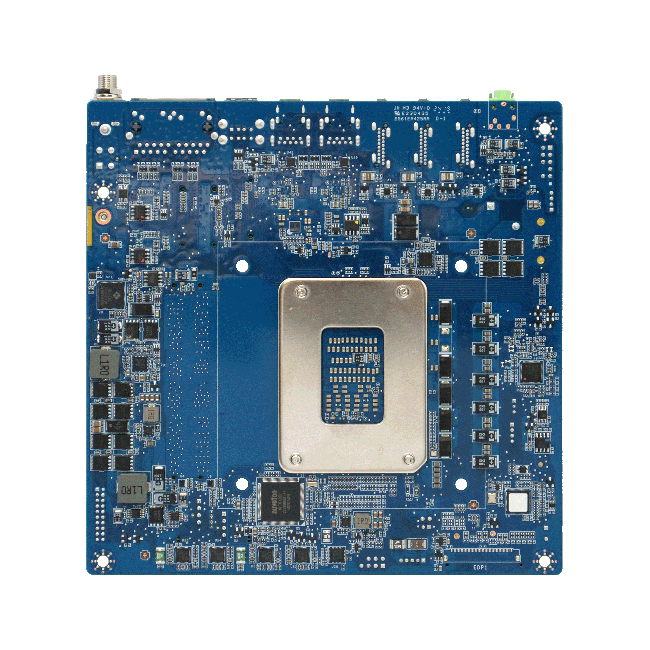

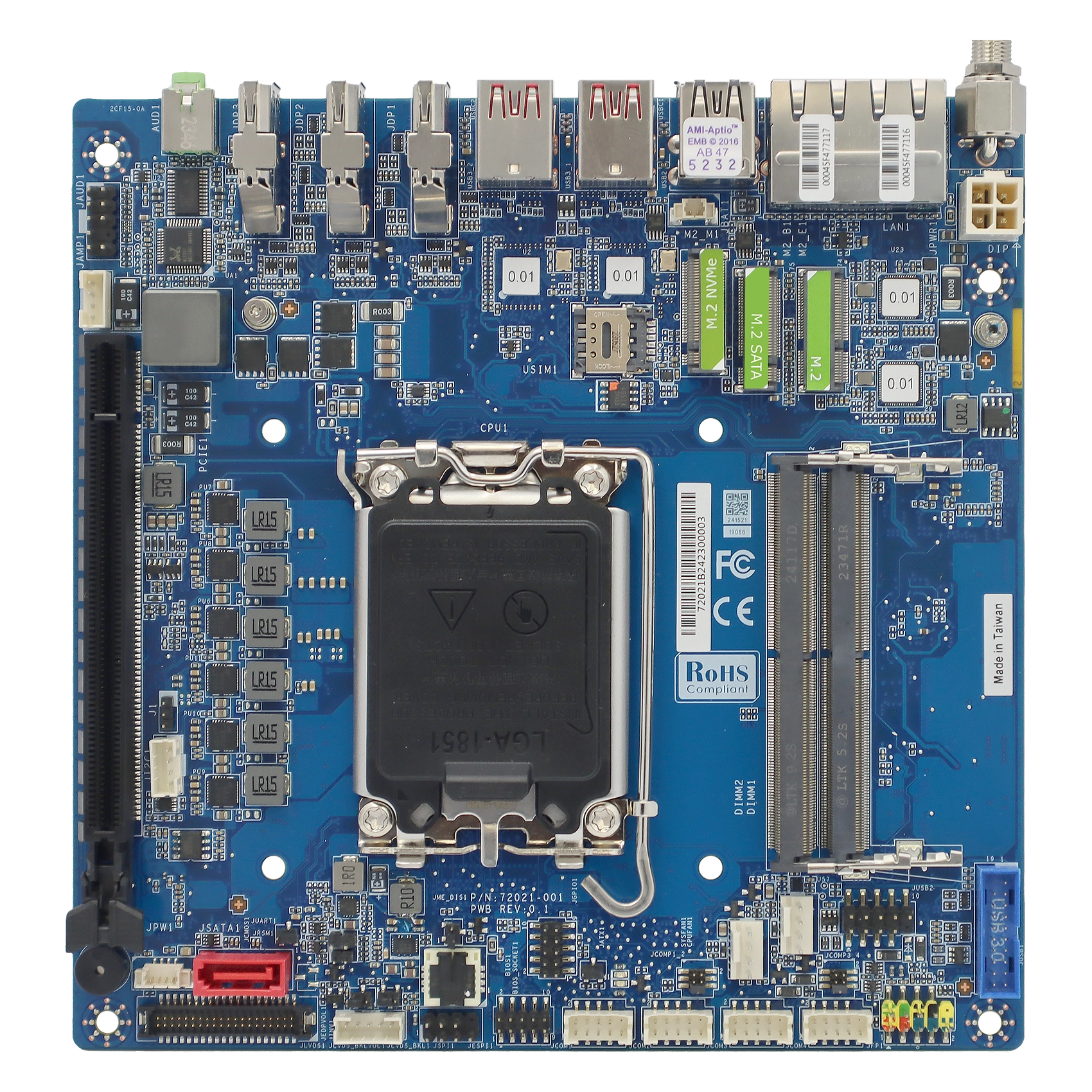

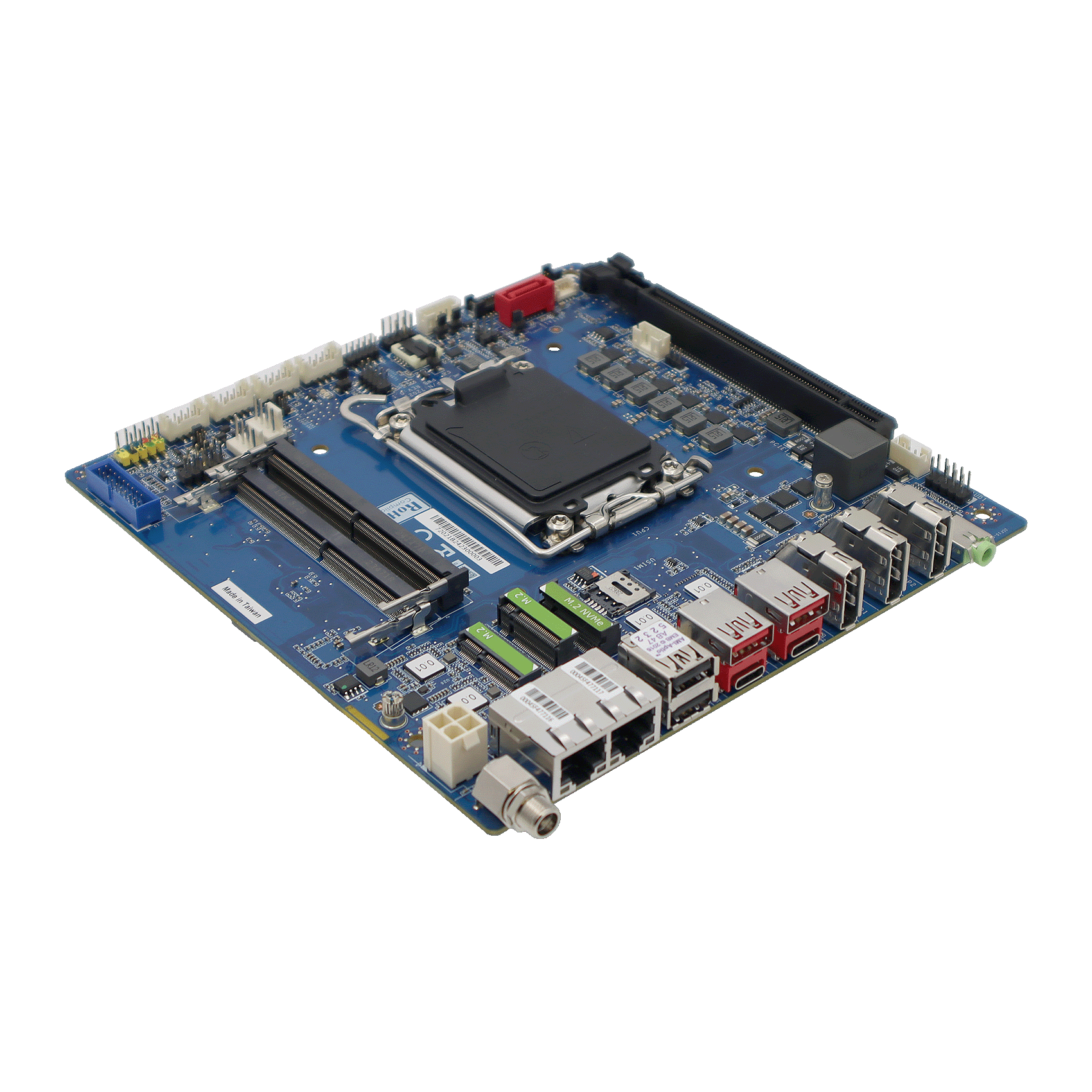

Thin Mini ITX Motherboard with LGA 1851 socket supports the Intel® Core™ Ultra Processor
- LGA 1851 socket supports Intel® Core™ Ultra Processor, formerly the Meteor Lake PS (MTL-PS) Platform
- The Intel® Core™ Ultra Processors combine AI-ready CPU, GPU and NPU delivering stunning graphics and AI focused performance for an edge AI applications
- Thin Mini ITX, low-profile, single stack I/O
- Fanless operation (15W CPU only)
- Select Intel® Core™ Ultra 7 and Core™ Ultra 5 Processor with integrated Intel® ARC™ GPU
- Select Intel® Core™ Ultra 7 and Core™ Ultra 5 Processor supports Intel® vPro
- 2 x 262-pins DDR5-5600 SO-DIMM (Non-ECC) slots, up to 64GB (32GB maximum/slot)
- 1 x Gen4 PCIe x4, 3 x M.2 (E/M/B-Key)
- Dual 2.5 GbE Ethernet LAN ports
- Supports 4 Independent Displays (3 x DP + LVDS/eDP)
- 2 x USB Type C Thunderbolt 4
- 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0
- 4 x COM Ports
- 12 - 24V wide range DC-in
LGA 1851 supports the new Intel® Core™ Ultra Processor
The Intel® Core™ Ultra Processors combine three AI engines - CPU, GPU and NPU delivering stunning graphics and advanced AI in a simplified system-on-chip (SoC) in an LGA package to support your demanding edge use cases. The LGA packaging enables faster time to market for build-to-order edge systems.
SoC Architecture with Desktop Flexibility by Design
The Meteor Lake-PS platform brings an SoC-based design to the LGA 1851 socket — a first in the embedded and industrial computing space. This architecture allows the MX-MTLPSto combine:
- Fewer components and simplified board layout
- Lower latency and improved power efficiency
- Mobile-grade processing in a desktop-style socketed design
This board supports a wide TDP range — from 15W for fanless operation to 65W for performance-intensive workloads with proper cooling. That flexibility makes it ideal for diverse applications ranging from quiet kiosks to AI inference boxes.
Key Features
CPU - Intel® Core™ Ultra Processors
LGA 1851 socket supports the new Intel® Core™ Ultra Processors. Accelerate AI with integrated CPU, GPU, and NPU in a LGA socket
GPU - Integrated Intel® ARC™ Graphics
Built-in GPU in LGA packaging boosts graphics and media performance. CPU Dependent - 45W TDP.
NPU - Intel® AI Boost
Intel® Neural Processing Unit, an AI accelerator integrated into Intel Core Ultra processors, delivering high-performance parallel computing for AI operations.
Thin Mini ITX Motherboard
A low-profile, single stack I/O design, providing a compact and efficient layout suitable for applications where space is limited and high performance is required.
Intel® Distribution of OpenVINO™ Toolkit
Pairing with the Core Ultra processor, shorten development time for AI with support for the Intel® Distribution of OpenVINO™ Toolkit.
Fanless Operation
Fanless operation, which ensures silent and efficient performance in compact spaces, is possible when paired with a 15W TDP processor.
Additional Hardware Features
DDR5 System Memory
2 x SODIMM sockets support 5600MHz DDR5 up to 64GB non-ECC system memory.
Supports 4 Independent Displays
Allows for simultaneous output to four different monitors through 3 x DisplayPorts (DP++) at rear I/O, and one LVDS header onboard.
Dual Intel® Ethernet Controller I226-LM
Offers high-speed network connectivity, improved data transfer rates, and enhanced network performance, making MX-MTLPS ideal for demanding applications like gaming and streaming.
4 COM (Serial) Ports
Provides enhanced connectivity options, allowing for direct communication with multiple peripheral devices such as printers, and scanners; particularly beneficial for industrial applications, legacy systems, and embedded systems where serial communication is essential.
Rich Expansion Interface
Supports advanced peripherals, high-speed NVMe SSDs, wireless modules, and even cellular modems, making it a versatile choice for various applications ranging from gaming and video editing to industrial and embedded systems.
Key Use Case
Retail and Hospitality
POS/kiosks, touchless checkout, digital signage, restaurant automation
Pairing with the Intel® Core Ultra processors enables MX-MTLPS Mini ITX motherboard to be able to create visually immersive customer experiences. Drive computer vision and in-store analytics with powerful AI, support POS solutions, and deploy high-resolution displays for interactive kiosks and digital signage.
Smart cities and Infrastructure
Digital security and safety, network video recorders, roadside units
Intel® Core Ultra processors help improve quality of life, safety, and solution efficiency with simple device configurations that can support a higher density of video streams, process and analyze larger datasets, stay in the field for longer, and address everincreasing growth.
Education and Enterprise
Video conferencing, interactive whiteboards, thin clients, and remote classrooms or distributed workforce
Intel® Core Ultra processors support interactive whiteboards, streaming content, and seamless videoconferencing for in-classroom, remote, and hybrid environments to improve student experiences and learning outcomes.
Industrial
AI-augmented industrial PC for discrete and process manufacturing, microgrid controller, robotics
Intel® Core Ultra processors help improve quality, enhance productivity and safety on shop floors, and support advanced Industry 4.0 use cases—including AI vision deployments—while consolidating workloads on easy-to-manage systems in harder-to reach places.
Contact us at BCMSales@bcmcom.com or give us a call 949-470-1888
Understand more about our Custom Industrial Motherboards and Open Frame Tablets
