HPS-GNRD4A

19" 4U Workstation with HPM-GNRDE Dual Sockets Server Grade Motherboard inside

• Extended Lifecycle Server-grade Workstation

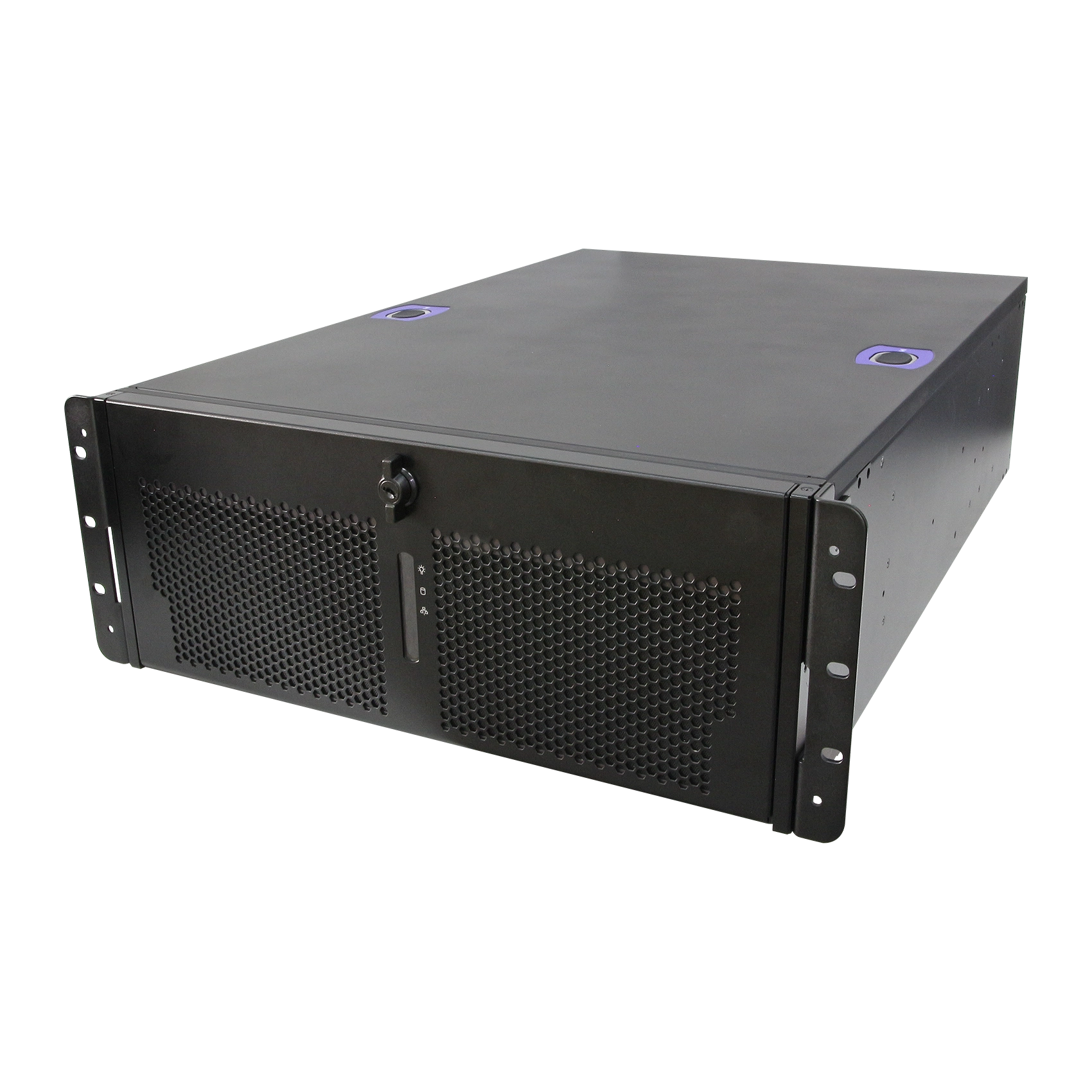

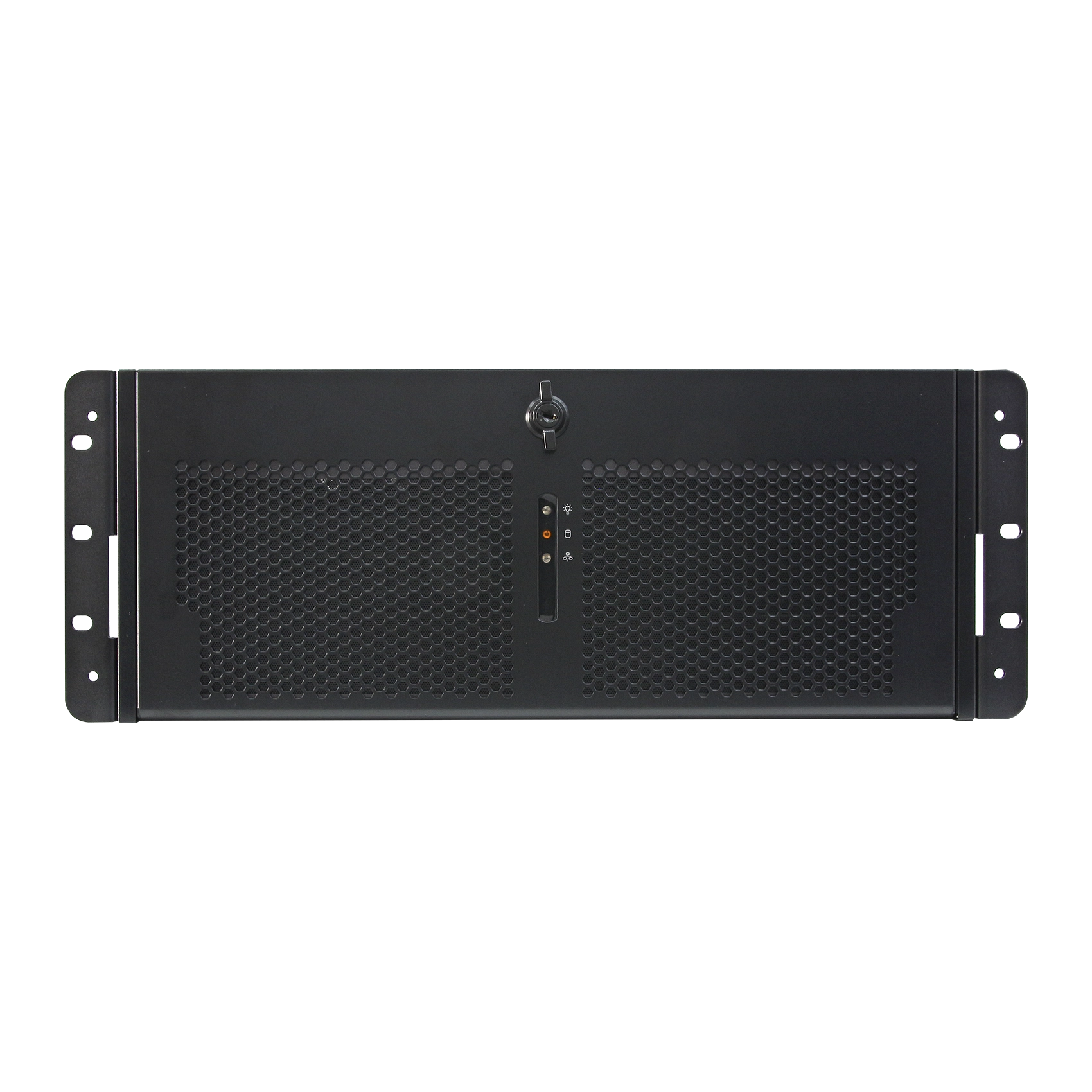

• Lockable Front Cover
• 19" 4U Chassis, L6 Barebone
• 2 x LGA4710 sockets support two 6th Gen Intel® Xeon® 6500P or 6700P series Processor (formerly Granite Rapids) up to 350W TDP
• 16 x DIMM slots support DDR5 6400MT/s RDIMM and 8000MT/s MRDIMM up to 4TB
• 5 x PCIe Gen5 x16 and 1 x PCIe Gen5 x8
• IPMI 2.0 supported by AST 2600 BMC controller onboard
• 2 x Intel® Ethernet Controller I210-AT (1GbE)
• Optional 1 x Intel® E610-XAT2 Ethernet Controller (10GbE) supports dual ports (2 x RJ-45)
• 9 x SATA III: 2 x MiniSAS HD 4i (for 4 x SATA Only) & 1 x 7 pin SATA connector
• 4 x Slim SAS 8i Connectors
• 3 x MCIO x8 Connectors
• 1 x RS-232 port, 6 x USB 3.2 Gen2 ports at Edge I/O
• 1 x M.2 M-Key 2242/2260/2280/22110, 1 x M.2 M-Key 2242/2260/2280

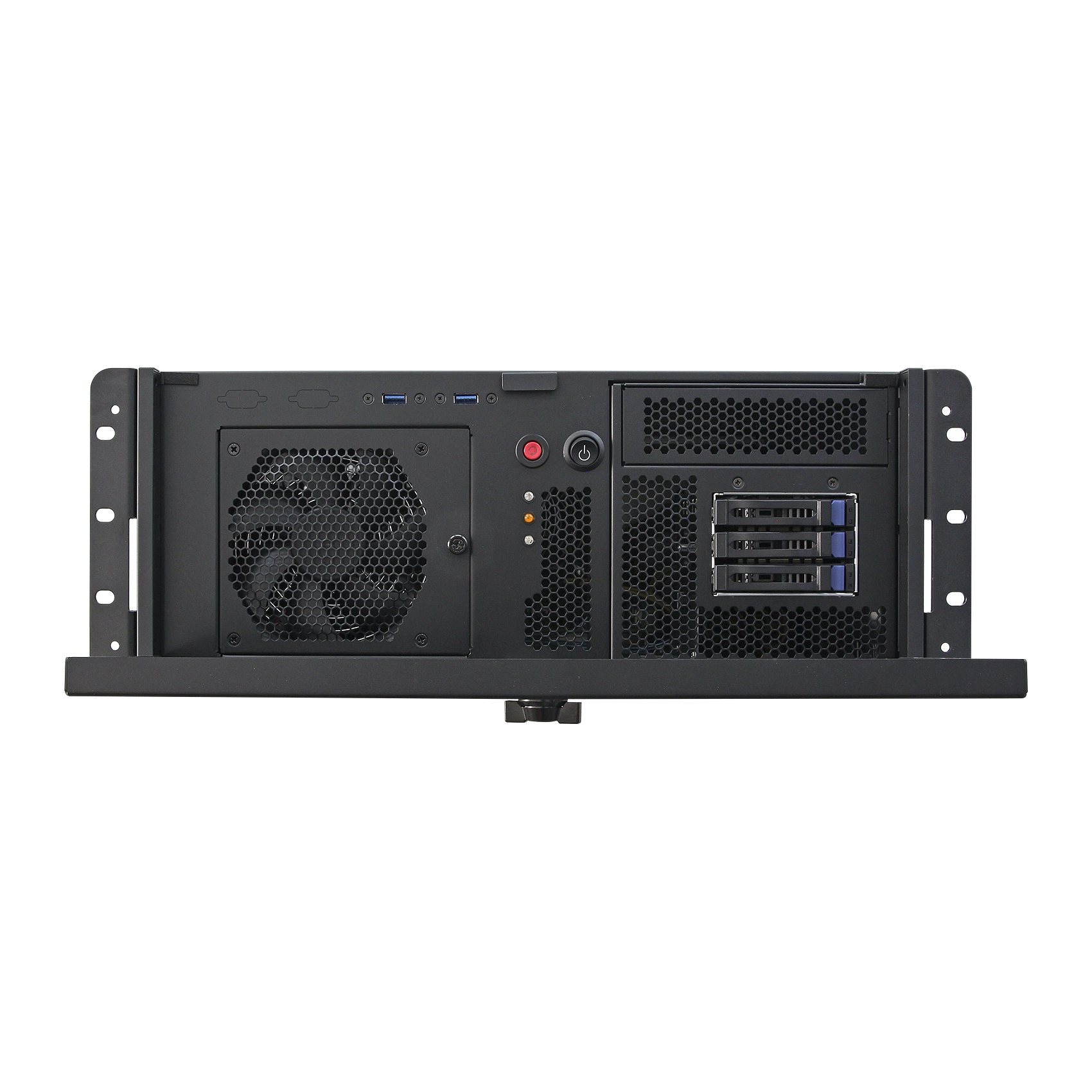

• 3 x Front Accessible 2.5” storage bay
• Delta 1300W ATX PSU (Default) or Zippy 1600W CRPS PSU (Optional)
• Intel VMD and VROC (PCIe NVMe only, requires RAID key)
• TPM 2.0 Onboard
• L10 Fully Integrated (CPU, memory, storage) System available through OEM/ODM
