HPM-GNRUA Granite Rapid HPM-GNRUA Granite Rapid HPM-GNRUA Granite Rapid HPM-GNRUA Granite Rapid

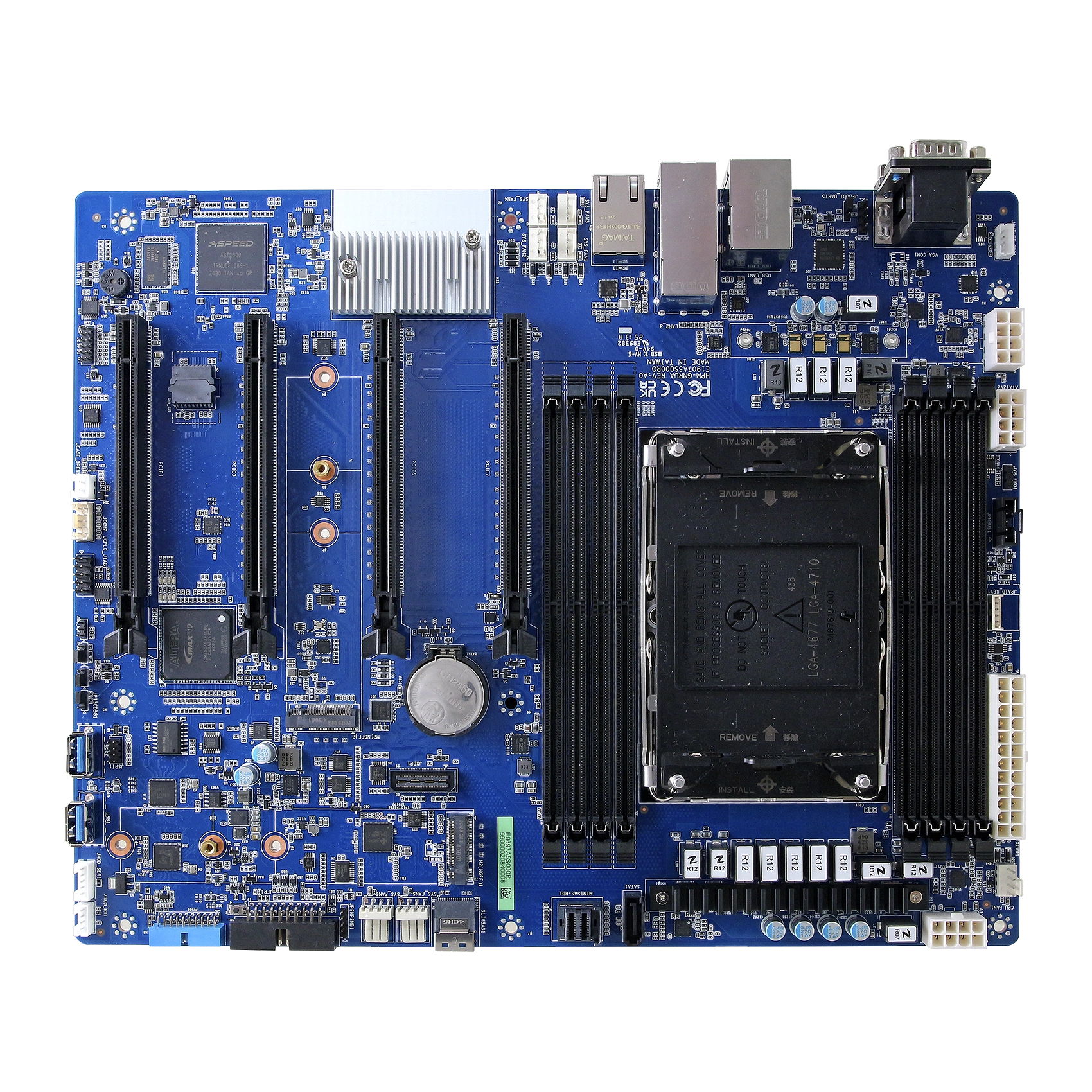

HPM-GNRUA

High-performance Server Class ATX Motherboard supports
6th Gen Intel® Xeon Scalable Processors up to 350W TDP

  • Extended Lifecycle
  • 1 x LGA 4710 socket supports 6th Gen Intel® Xeon® Scalable Processors up to 350W TDP (formerly Granite Rapids)
  • 8 x DIMM slots support DDR5 6400MT/s RDIMM and 8000MT/s MRDIMM up to 2TB
  • 4 x PCIe Gen5 x16
  • IPMI 2.0 supported by AST 2600 BMC controller onboard
  • 1 x VGA supports 1920x1200
  • TPM 2.0 onboard
  • 1 x Intel® Ethernet Controller I210-AT (1GbE)
  • 1 x Intel® Ethernet Controller E610-XAT2 (2 x 10GbE)
  • 2 x M.2 M-Key sockets support PCIe Gen5 x4 NVMe SSD, 2242/2260/2280/22110 form factor
  • 2 x COM Ports
  • 1 x Slim SAS 4i Connector
  • 1 x Mini-SAS HD 4i Connector (for 4 x SATA III), 1 x SATA connector, total 5 x SATA III
  • ATX Form Factor (12”x9.6”)

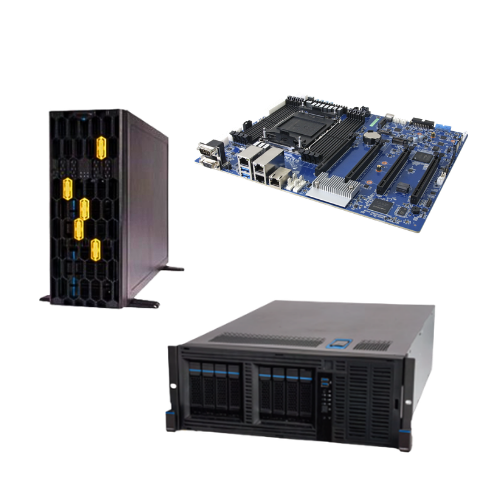

Barebone System

High-Performance ATX Motherboard Built for AI, HPC, and MEC

BCM HPM-GNRUA, a server-grade ATX motherboard engineered for compute-intensive workloads—from AI inference and MEC to cloud storage and HPC platforms.

Powered by 6th Gen Intel® Xeon® 6500P or 6700P Series Scalable Processors

Each supporting up to 350W TDP. Built on the Granite Rapids-SP architecture, these processors provide:

  • Enhanced Core Performance: The 6th Gen Intel® Xeon P-Core architecture increases Instructions per Cycle (IPC), supporting big data analytics, cloud processing, and AI inference
  • Enhanced Core Performance: The 6th Gen Intel® Xeon P-Core architecture increases Instructions per Cycle (IPC), supporting big data analytics, cloud processing, and AI inference
  • Advanced Memory Capabilities: Support for DDR5 6400/8000MT/s memory with up to 16 DDR5 RDIMM/MRDIMM slots and maximum capacity of 4TB
  • Improved Bandwidth: 30% higher bandwidth compared to standard DDR5 6400MT/s for data-intensive workloads

IPMI Support

HPM-GNRUA dual sockets support 6th Gen Intel Xeon Processors

The IPMI (Intelligent Platform Management Interface) is a set of industry-standard specifications for hardware-based subsystems that provide management and monitoring capabilities independently of the host system's CPU, firmware, and operating system. Used together with a BMC (Baseboard Management Controller), IPMI allows a system administrator to perform many different monitoring and management tasks remotely without having to be physically located next to and connected to the system – such as power cycling a server, installing BIOS or firmware updates, and monitoring fan speeds and temperatures. BCM HPC solutions have built-in onboard BMC/IPMI technology with real-time system monitoring and provide preventive maintenance to minimize system downtime and field service cost.

IPMI Advantages:

  • Reducing high cost for downtime and repair
  • Reducing TTM and development cost for platform management
  • Enabling “Always Accessible” management
  • Enabling cross-platform manageability across server classes
  • Enabling secure remote management
  • Multi-OS Support

IPMI Features:

  • Server Hardware Monitoring
  • Remote Power Control
  • Remote Control
  • Out Of Band (OOB) BIOS & Firmware Updates
  • Asset Tracking
System
CPU 1 x LGA4710 socket supports 6th Gen Intel® Xeon® Scalable
Processors up to 350W TDP
Intel® Xeon® 6740P Processor, 288M Cache, 2.10 GHz
Intel® Xeon® 6781P Processor, 336M Cache, 2.00 GHz
Intel® Xeon® 6530P Processor, 144M Cache, 2.30 GHz
Intel® Xeon® 6520P Processor, 144M Cache, 2.40 GHz
Intel® Xeon® 6731P Processor, 144M Cache, 2.50 GHz
Intel® Xeon® 6521P Processor, 144M Cache, 2.60 GHz
Intel® Xeon® 6736P Processor, 144M Cache, 2.00 GHz
Intel® Xeon® 6517P Processor, 72M Cache, 3.20 GHz
Intel® Xeon® 6515P Processor, 72M Cache, 2.30 GHz
Intel® Xeon® 6505P Processor, 48M Cache, 2.20 GHz
System Memory 8 x DIMM slots support DDR5 6400MT/s RDIMM and 8000MT/s MRDIMM up to 2TB
BIOS AMI® UEFI BIOS
Watchdog Timer System Reset Event. 0 ~ 6553 seconds.
H/W Status Monitor CPU temperature, fan speed and voltage monitoring, fan speed control, and case open detection
TPM TPM 2.0 onboard
RAID Intel® VMD and Virtual RAID on CPU (VROC)
Supported OS
Windows Windows 11 SAC and LTSC
Windows Server 2025
Linux Red Hat Enterprise Linux (RHEL) 8.2 and later
Ubuntu 24.04
Expansion
PCI Express 4 x PCIe Gen5 x16 Slots
Storage Connectors
M.2 2 x M.2 M-Key sockets support 1 x PCIe Gen5 x4 NVMe SSD 2242/2260/2280/22110 form factor
SATA 1 x Mini-SAS HD 4i (for 4 x SATA III)
1 x 7-pin SATA connector (6.0 Gb/s)
Total 5 x SATA III
Slim SAS 1 x Slim SAS 4i (SFF-8654) connector
IPMI/Graphics
Chipset AST2600 BMC Controller
Interface 1 x VGA
Resolution 1920 x 1200 @ 60Hz 32bpp
IPMI IPMI 2.0
Ethernet
Controller 1 x Intel® Ethernet Controller I210-AT (1 x 1GbE)
1 x Intel® Ethernet Controller E610-XAT2 (2 x 10GbE)
Interface 4 x RJ-45

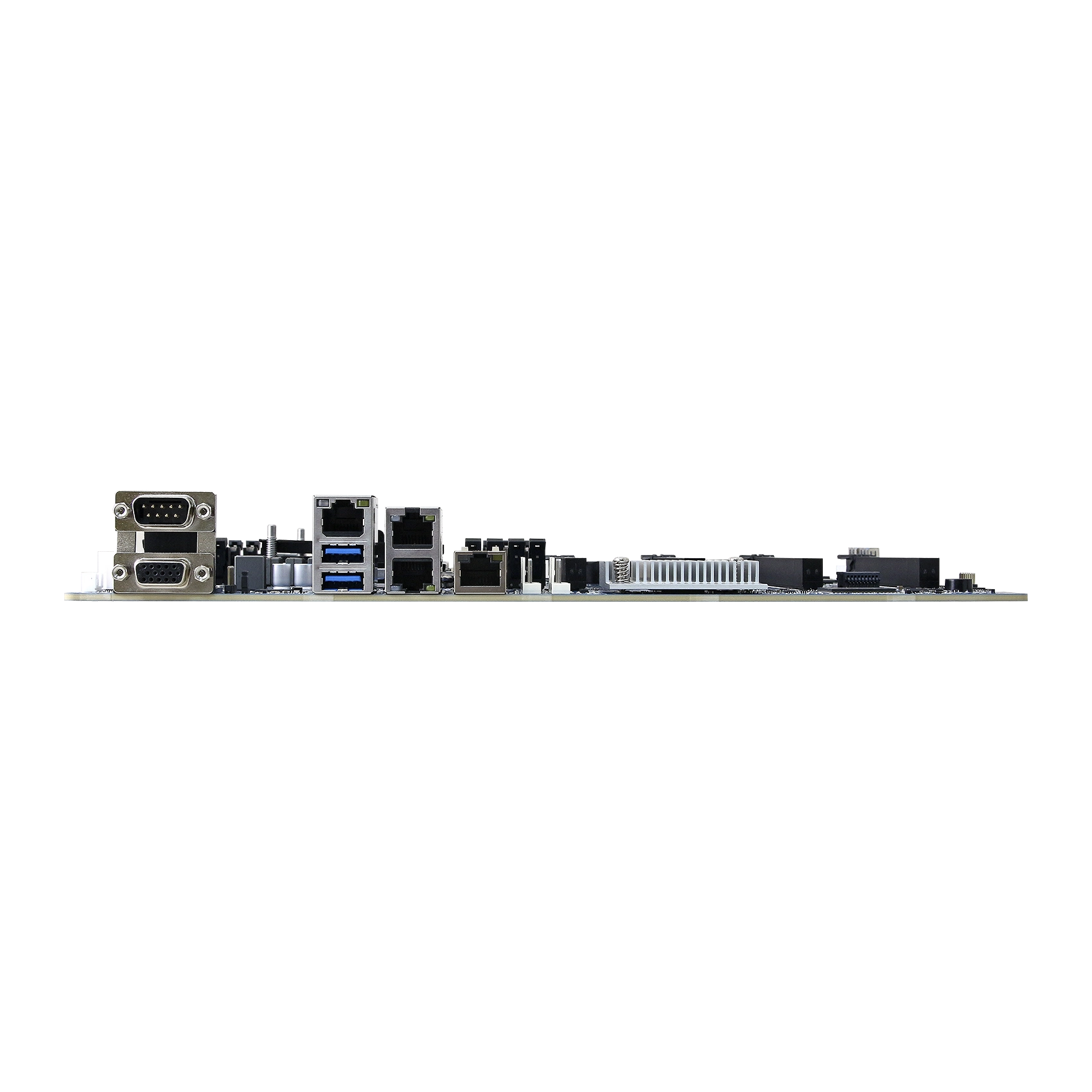

External I/O
USB 2 x USB 3.1 Gen1 Type A Connectors
COM 1 x DB-9 COM Port
VGA 1 x VGA
LAN 4 x RJ-45 LAN Ports:
1 x RJ-45 for Dedicated IPMI management port
1 x RJ-45 (1GbE)
2 x RJ-45 (10GbE)
Internal I/O
VROC 1 x Intel® VROC Header
USB 4 x Internal USB 3.2 Gen1 ports
COM 1 x RS-232 Header
Fan 2 x 4-Pin CPU Fan Headers and 6 x 4-Pin Chassis Fan Headers
Front Panel 1 x Front Panel Header
Buzzer 1 x Onboard Buzzer
Clear CMOS 1 x Clear CMOS Header (2.0mm pitch Header)
CMOS Battery 1 x Horizontal Socket Type CMOS Battery Holder with CR2450
Temperature Sensor 1 x Inlet Sensor, 1 x Outlet Sensor, 1 x Inlet Sensor Header,
1 x Outlet Sensor Header
Power & Connector
Connector 1 x Standard 24-Pin ATX Controller
3-4 x 8-Pin SSI ATX12V Connectors
Power Mode H/W: ATX
BMC: AT (Default)
Regulatory Compliance
Certification CE/FCC
Mechanical and Environment
Operating Temperature 0°C ~ 55°C (32°F ~ 131°F): support up to 350W TDP CPU
0°C ~ 60°C (32°F ~ 140°F): support up to 270W TDP CPU
Storage Temperature -40°C to 85°C (-40 ~ 185°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Dimensions (L) x (W) 12” x 9.6” (304.8mm x 243.84mm)
PCB thickness: 2.59mm
Form Factor ATX
Weight 2.65lbs (1.19 kg)

* All product specifications and product images are subject to change without notice. Last update: 12/02/2025

Document
Datasheet
Manual
Declaration of RoHS and REACH Compliance
Statement of Volatility: HPM-GNRUAA-A1R
BIOS Version Revision Note Download
Contact Tech Support
Driver Type Operating System Download
Intel(R) Chipset Software Installation Utility Windows 11 64bit
Windows Server 2025
ASPEED Graphics Driver Windows 11 64bit
Windows Server 2025
Intel(R) QuickAssist Technology (Intel® QAT) Windows 11 64bit
Windows Server 2025
Intel(R) Network Connections Software Windows 11 64bit
Windows Server 2025
Intel(R) Virtual RAID on CPU RAID Port VMD Drivers Windows 11 64bit
Windows Server 2025
Intel(R) VROC Driver Windows 11 64bit
Windows Server 2025
BMC Firmware Release Date Download
HPM-GNRUA BMC 1.1 CS:5825 H 02/17/2026
HPM-GNRUA BMC 1.0 CS:1E64 H 08/27/2025
Date Description Download
02/17/2026 HPM-GNRUAA-A1R and HPM-GNRUAL-A1R BMC firmware change notification.
Model Name Description
HPM-GNRUAA-A1R LGA4710 Single socket supports 6th Gen Intel Xeon6/E610 Scalable Processor, 3LAN: 2 x 10GbE, 1 x 1GbE
HPM-GNRUAL-A1R LGA4710 Single socket supports 6th Gen Intel Xeon6/E610 Scalable Processor, 1LAN: 1 x 1GbE
Accessory Included 1 x I/O Shield

Optimized Server Solutions: CHENBRO’s RM133 1U Chassis with our HPM single socket series Server Grade ATX Motherboards

We are excited to offer our customers an optimized rackmount chassis solution that combines the reliability of our server-grade ATX motherboards with the robustness of CHENBRO’s RM133 chassis. This synergy ensures high performance, durability, and seamless compatibility, providing a comprehensive chassis solution for your server needs. Experience the power of integrated technology designed to meet the demands of today’s data-driven world.

Chenbro USA

RM133 1U Chassis

Key Features:

  • Drive options:
    • 4 x 3.5” drives with a SAS/SATA backplane, or
    • 10 x 2.5” HDD/SSD drives with a SAS/SATA backplane, or
    • 10 x 2.5” HDD/SSD drives with an NVMe backplane
  • Toolless drive trays for easy installation and maintenance
  • 1U flex PSU or 1+1 redundant PSU
  • 1 x full-height PCIe card, Gen4 x16
* Kindly be aware that the board shown in the photo is HPM-ERSUA. Learn more about Chenbro RM133
Chenbro RM133 for HPM-SRSUA
Chenbro RM133 for HPM-SRSUA

What's inside

Use Case

Use this configuration for Storage or Network Server applications. Using two of the Gen5 PCIe x16 SlimSAS 8i expansion cards (2-connectors per card) and connect up to eight 2.5" SSD/ NVMe storage drives (4 drives per card); or three expansion cards for up to ten SSD drives.

Please note that this is a custom configuration. The redundant power supply and the CPU fan can be replaced according to the customer’s preference.
