HPM-GNR1U HPM-GNR1U HPM-GNR1U HPM-GNR1U HPM-GNR1U HPM-GNR1U HPM-GNR1U HPM-GNR1U HPM-GNR1U

HPM-GNR1U Sampling Now

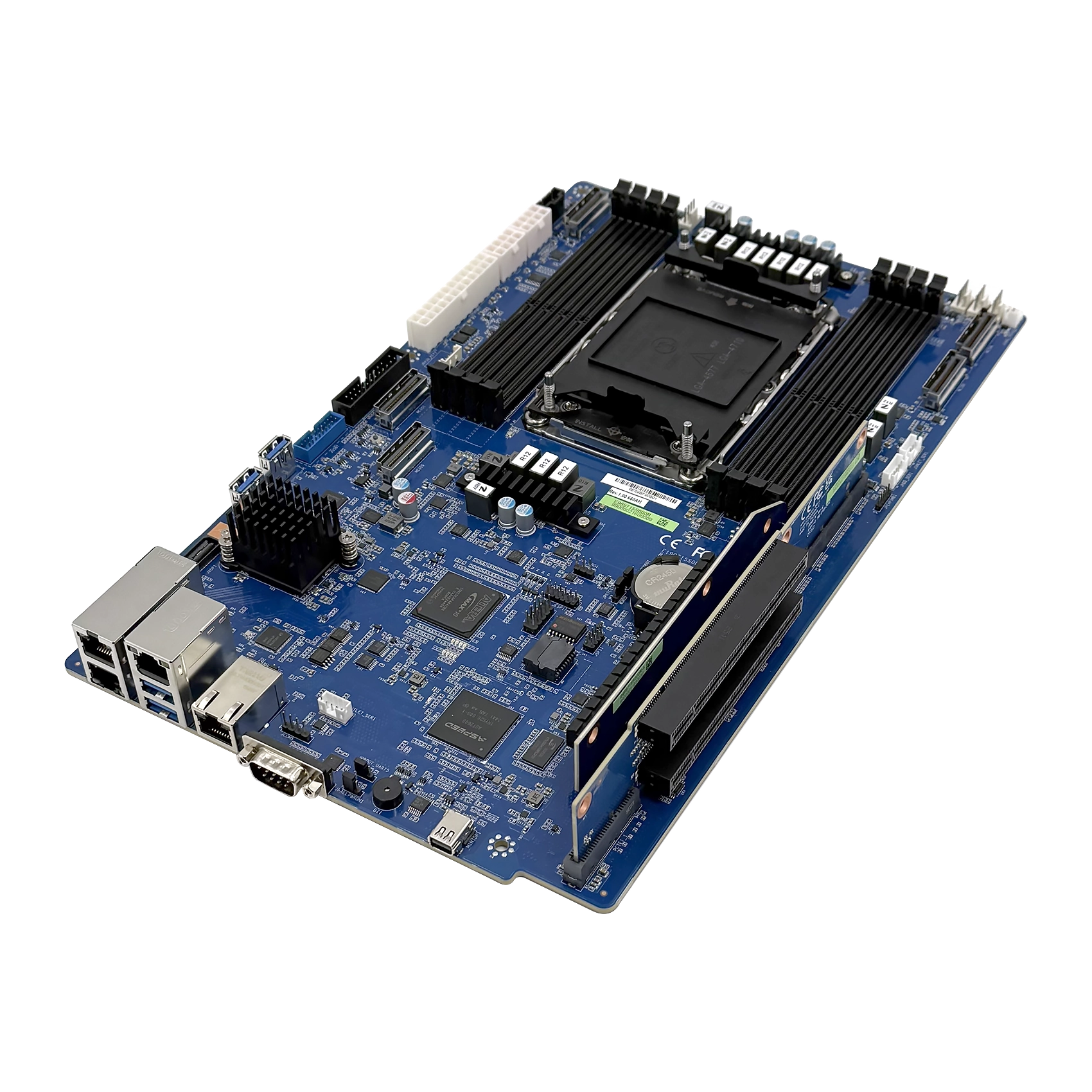

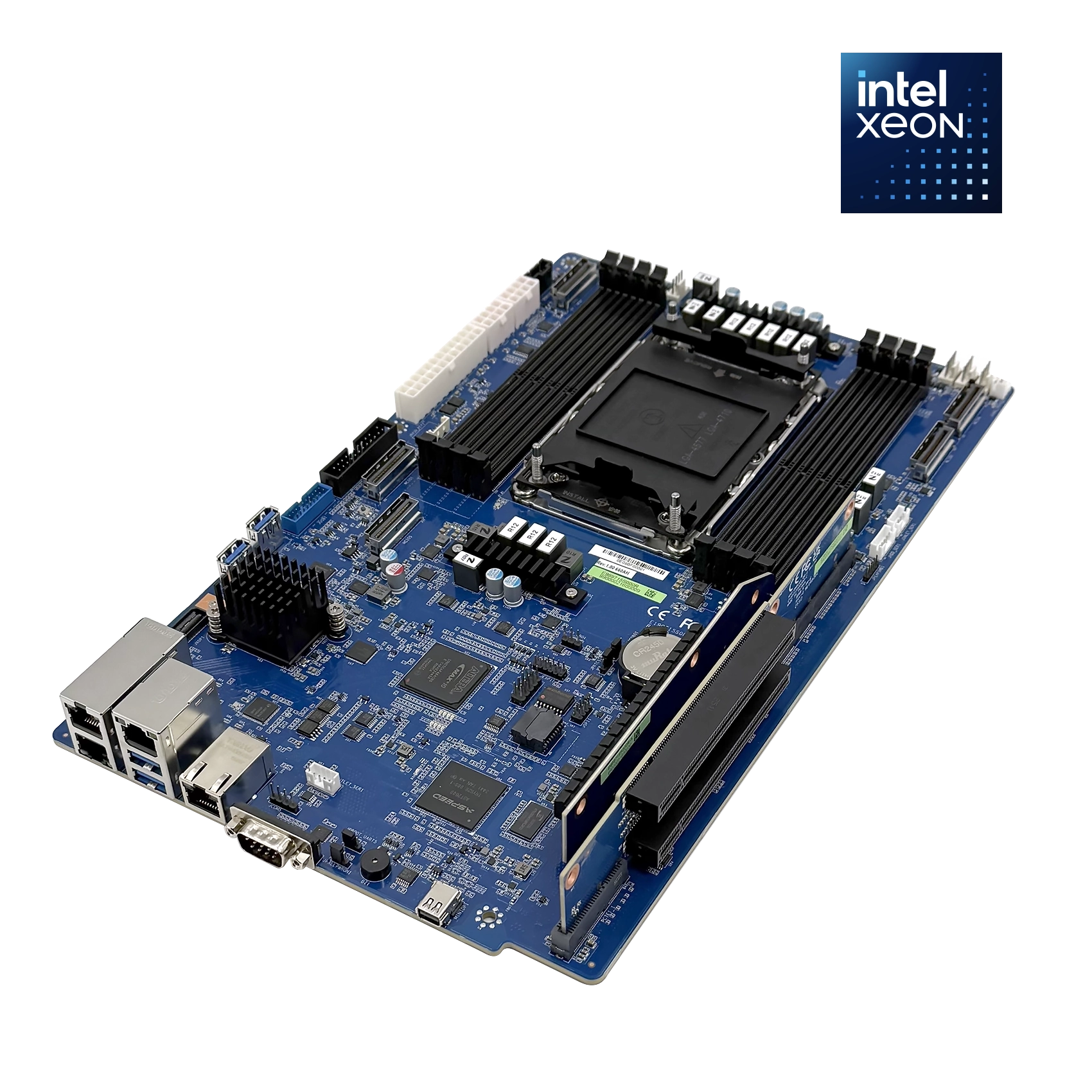

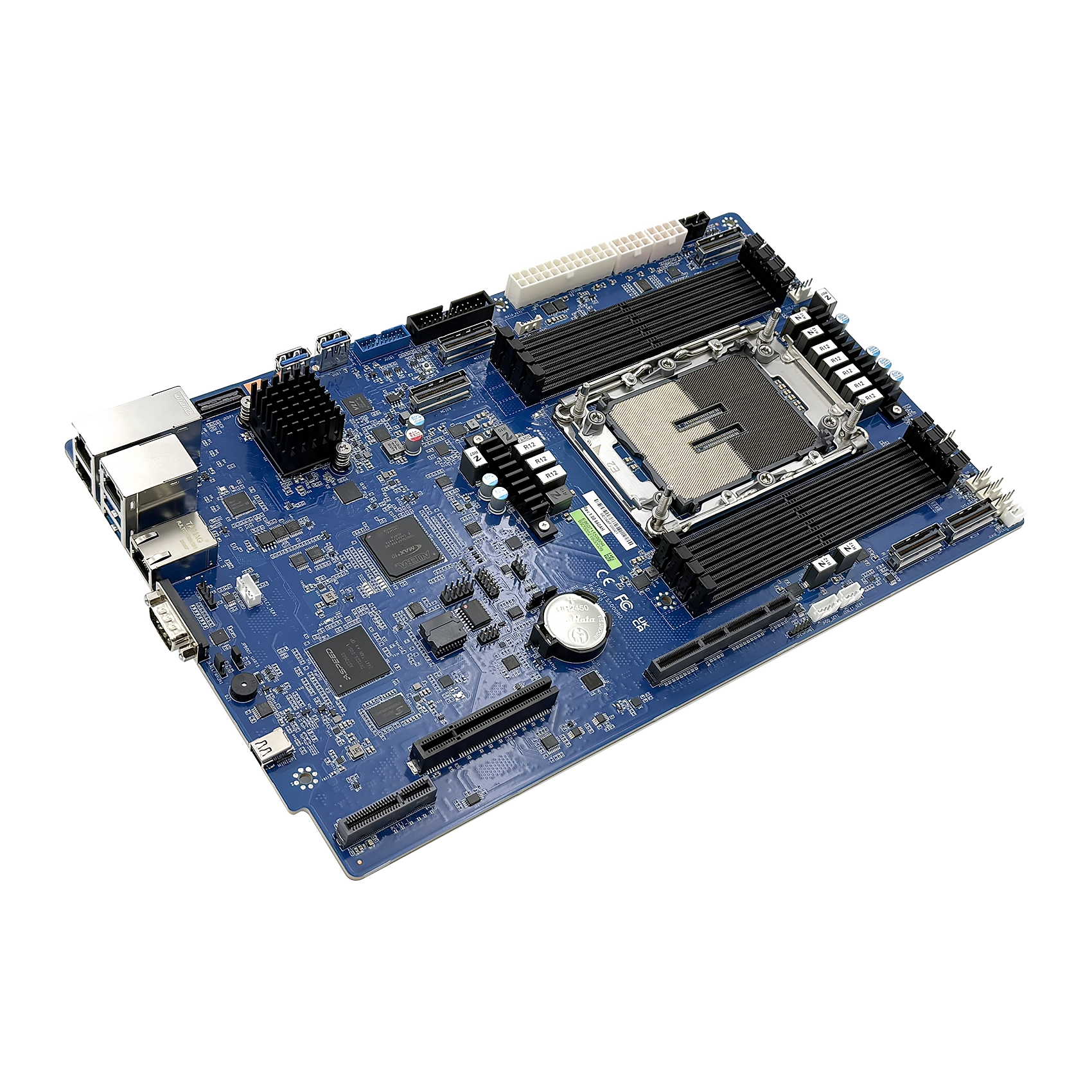

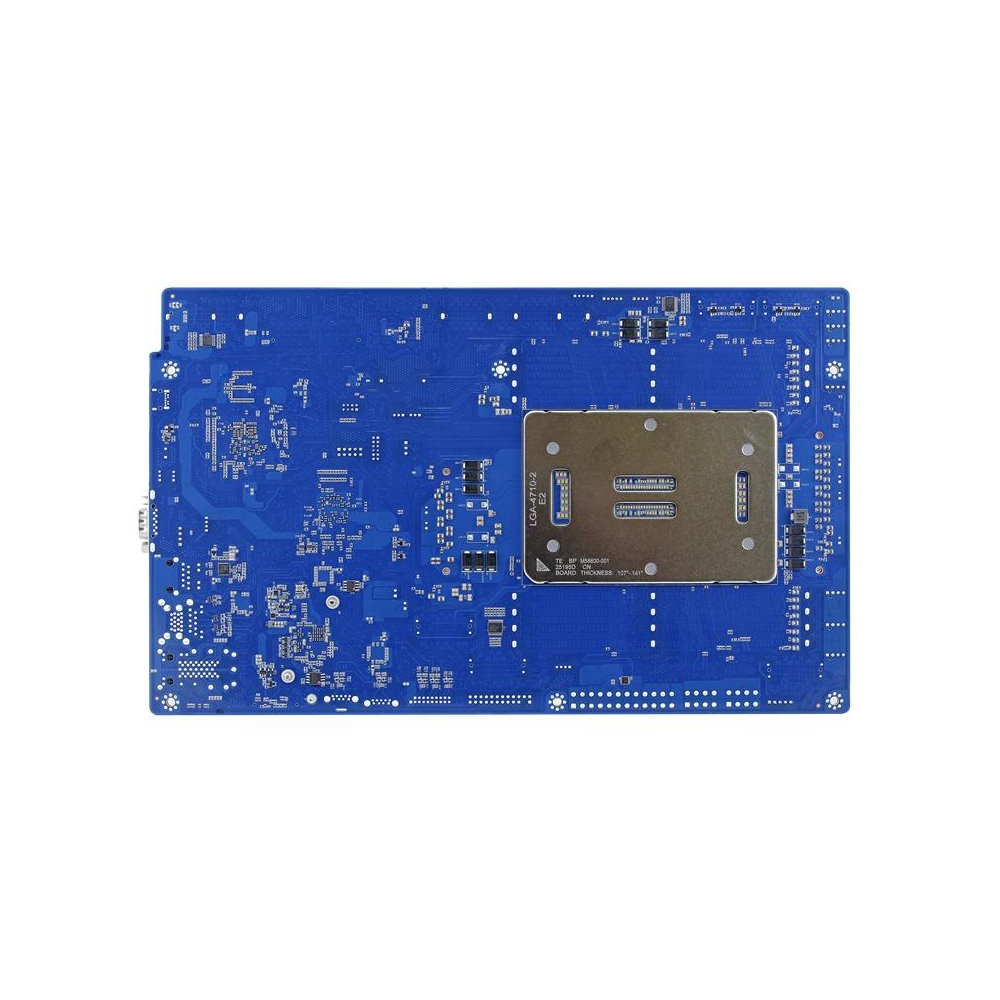

HPC Motherboard for 1U Rackmount System

  • Supports single 6th Gen Intel® Xeon® Scalable Processor up to 350W TDP LGA4710 Socket
  • 8 x DDR5 6400MT/s RDIMM and 8000MT/s MRDIMM Up to 2TB
  • IPMI 2.0, TPM 2.0
  • 1 x PCIe Gen5 x32 Riser Slot, 1 x PCIe Gen5 x8 Riser Slot
  • 5 x MCIO 8i Connectors with Hot-Swappable Support

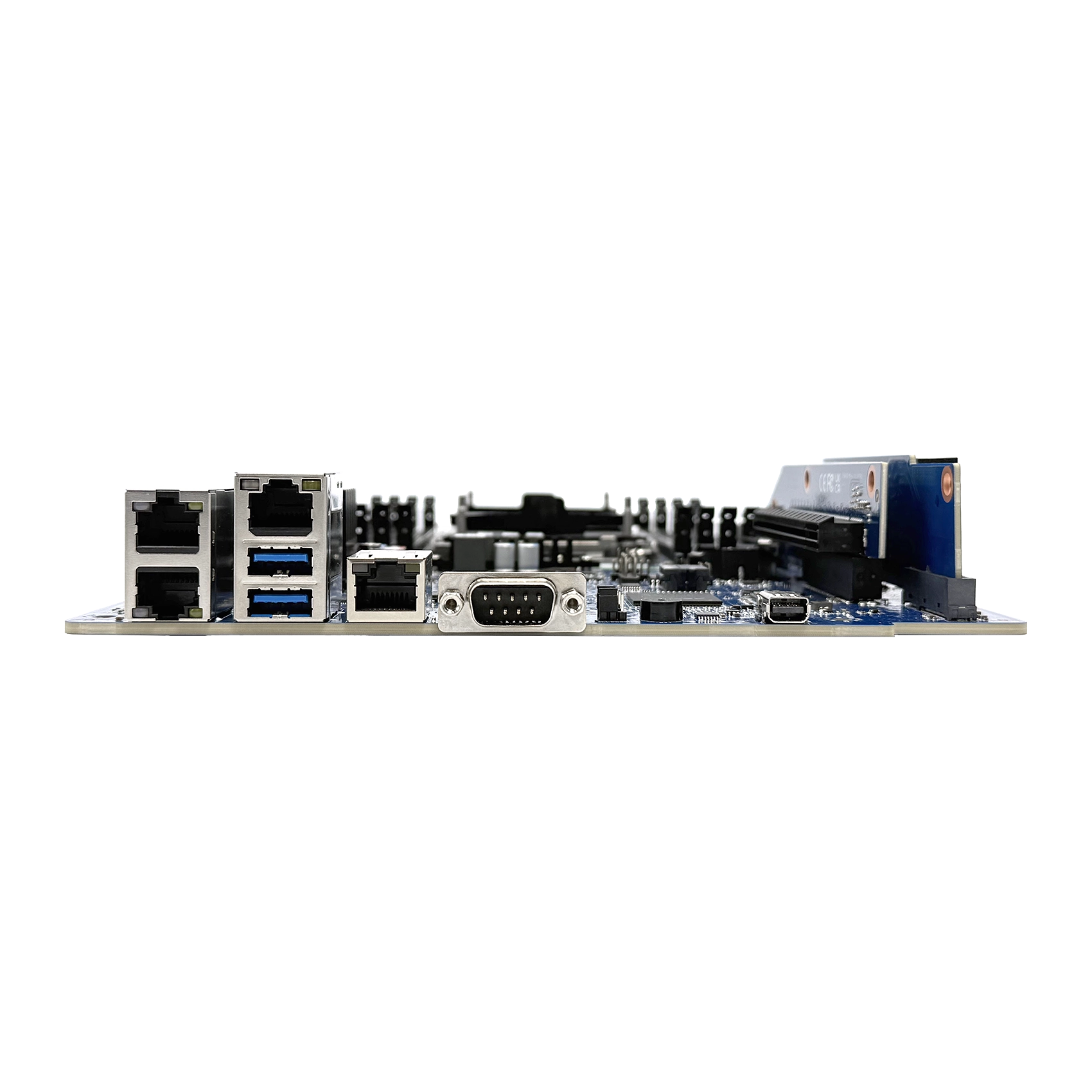

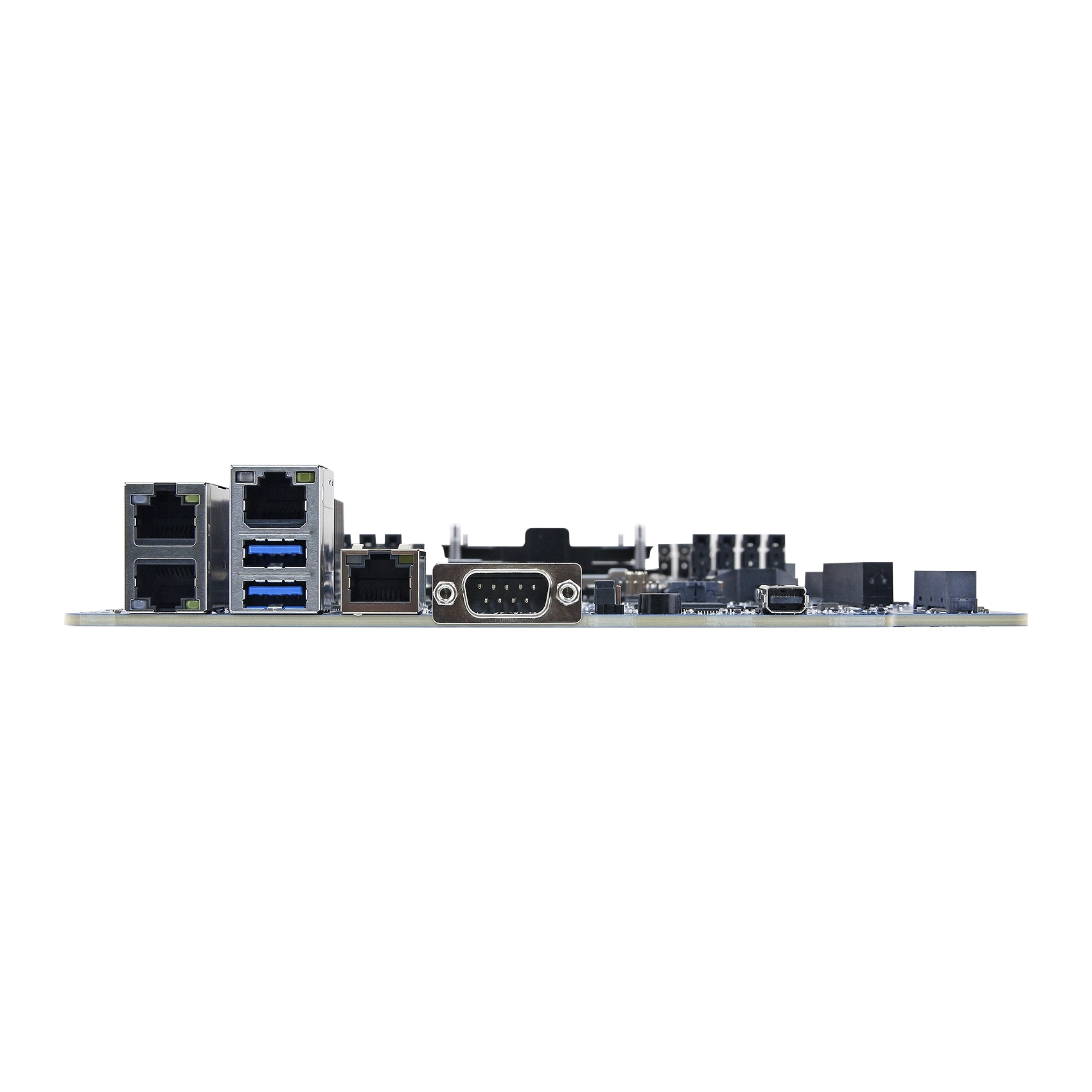

  • 1 x MiniDP, 1 x COM, 2 x USB 3.2 Gen1 ports at Edge I/O
  • 4 LAN Ports: MLAN, 1 x GbE, 2 x 10GbE
  • Intel® Ethernet Controller E610-XAT2 (10GbE)
  • 13” x8” (330.2mm x 203.2mm), PCB thickness is 2.79 mm
Related Product(s)

Purpose-Built for 1U Rackmount HPC High-performance Platform

Proprietary 1U-optimized motherboard designed for system integrators deploying high-performance Xeon® 6 High-performances in space-constrained rack environments.

  • Supports 6th Gen Intel® Xeon® Scalable processors (Granite Rapids) up to 350W TDP
  • Engineered specifically for 1U rackmount chassis thermal and layout constraints
  • Ideal for HPC clusters, AI inference nodes, and dense compute infrastructure
  • Optimized platform for system integrators building custom High-performance solutions
Value: High compute density in 1U deployments.

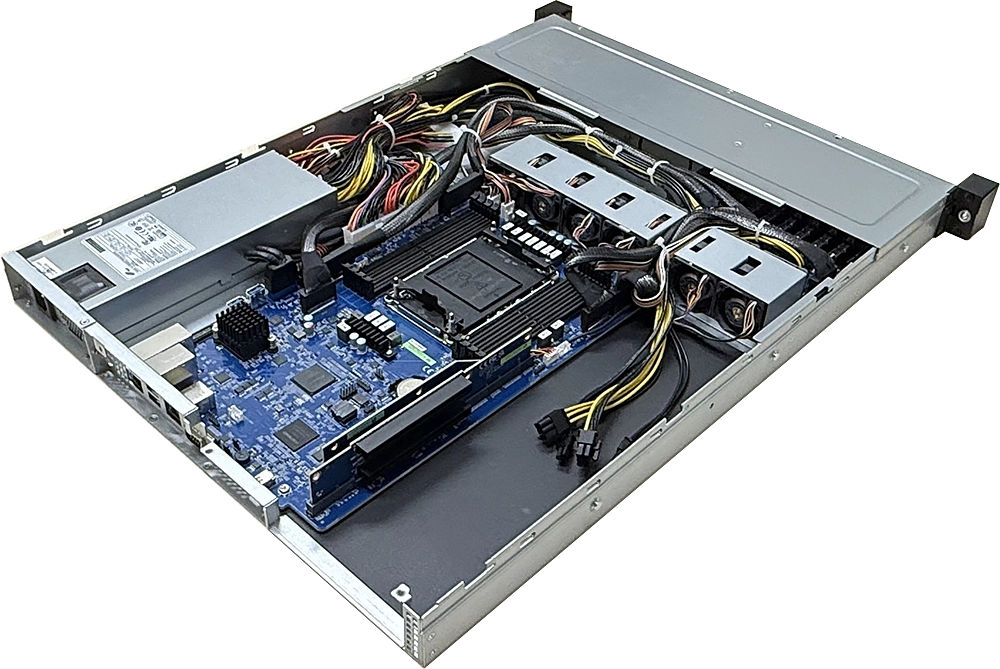

HPM-GNR1U for 1U Rackmount System

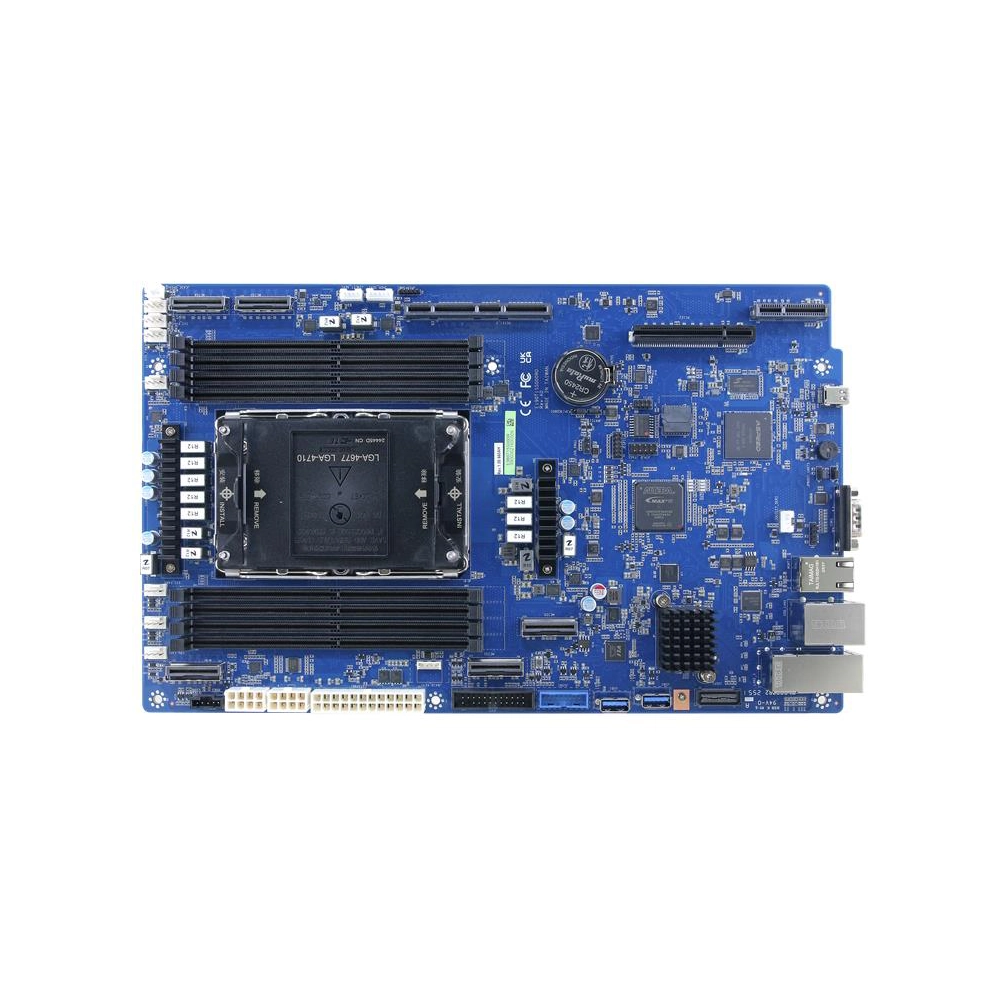

HPM-GNR1U

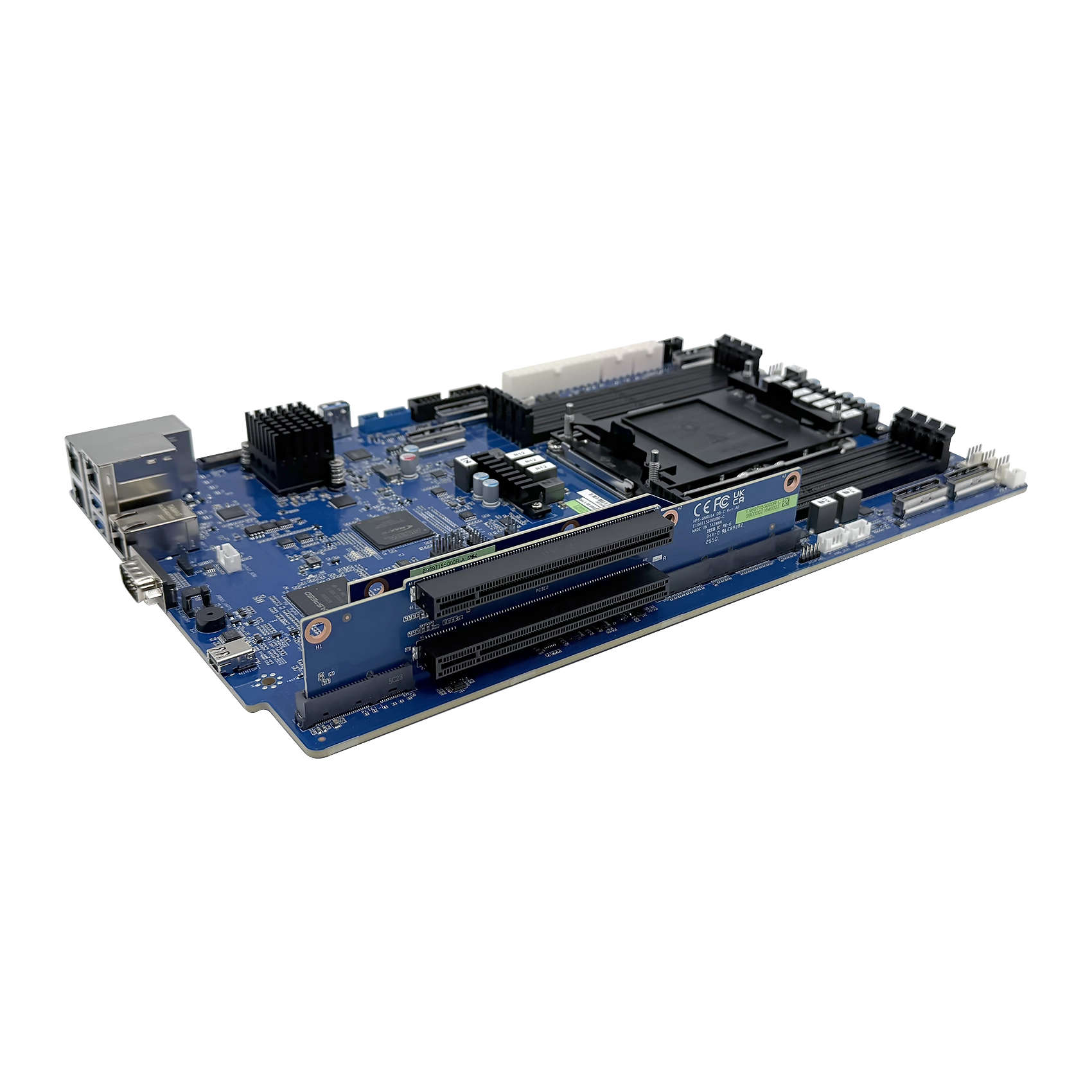

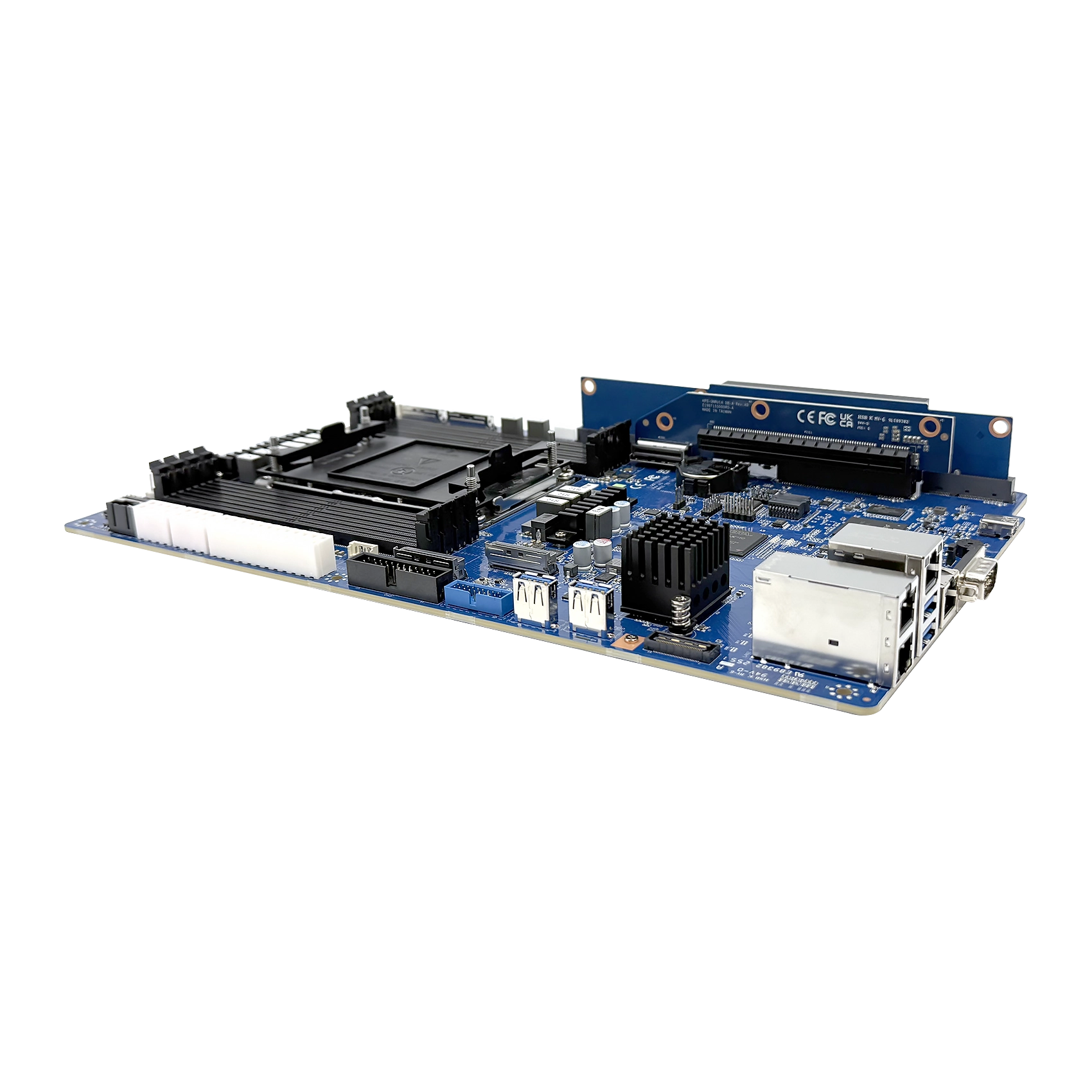

Flexible FHFL/FFFL PCIe Gen5 Expansion for GPU and Accelerator Deployment

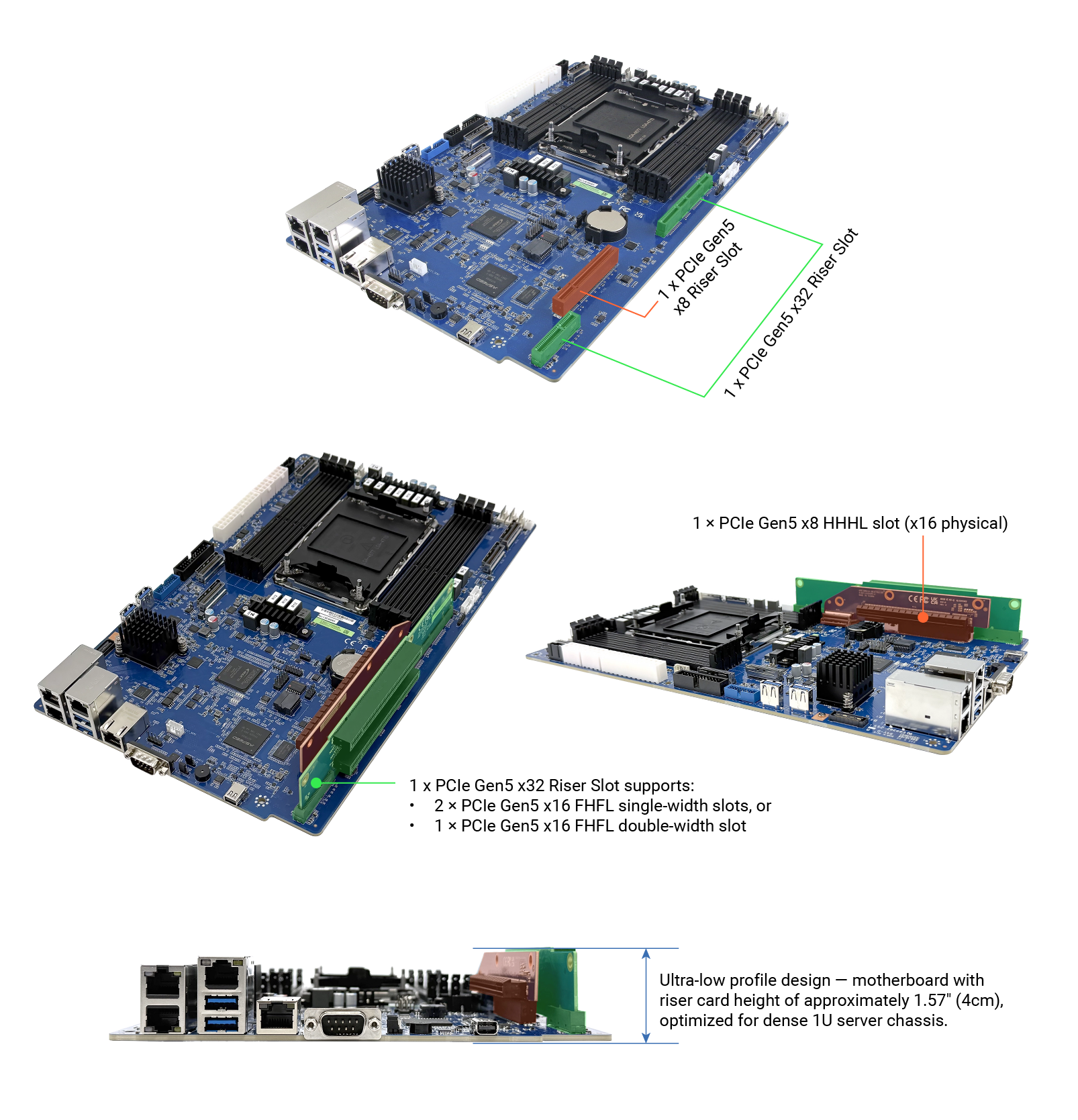

High-bandwidth PCIe Gen5 architecture enabling accelerator-ready 1U High-performance configurations via Riser Cards

Supported configurations include:
  • 2 × PCIe Gen5 x16 FHFL single-width slots, or
  • 1 × PCIe Gen5 x16 FHFL double-width slot

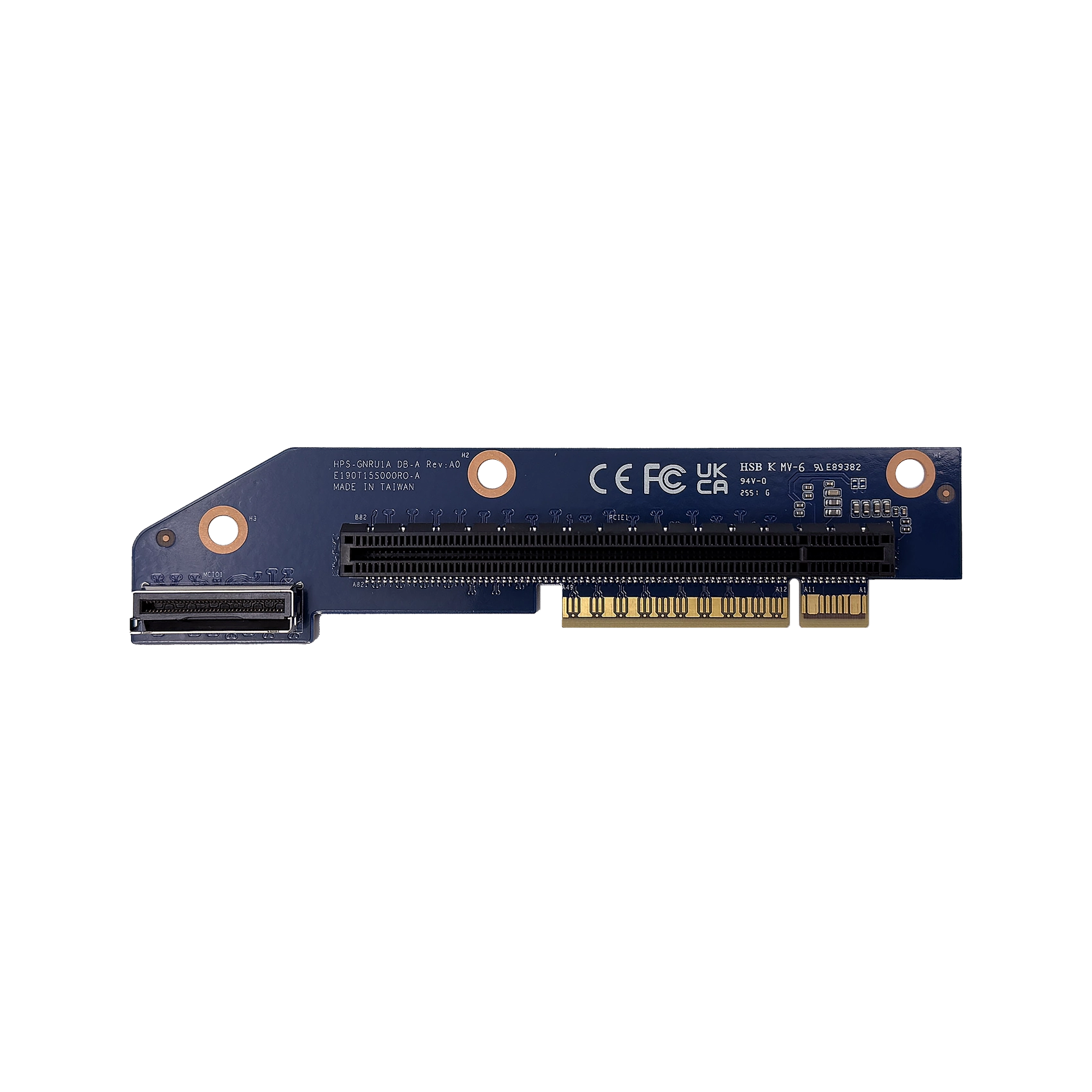

  • 1 × PCIe Gen5 x8 HHHL slot (x16 physical)
Value: Enables GPU-accelerated compute inside dense 1U system.

High-Density NVMe Storage Connectivity with Hot-Swap Support

Enterprise-class storage connectivity designed for scalable NVMe backplane integration

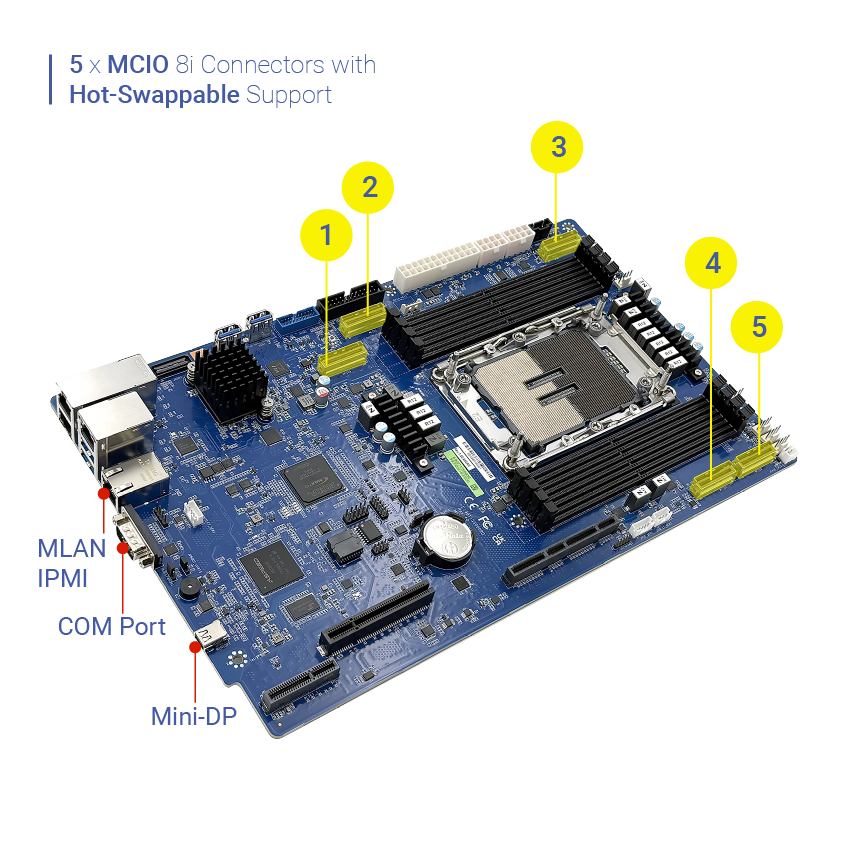

  • 5 × MCIO 8i connectors for high-speed storage connectivity
  • Supports hot-swappable NVMe drive configurations
  • Ideal for NVMe storage, HPC scratch storage, and data infrastructure
Value: Delivers high-throughput storage with enterprise serviceability.
HPM-GNR1U for 1U Rackmount System
HPM-GNR1U

Modular Storage Building Blocks for Custom 1U Chassis Integration

Backplane Kits for System Integrators

For System Integrators designing bespoke, high-density edge systems, off-the-shelf storage configurations can be a bottleneck. BCM’s proprietary Storage Expansion Backplane Kits remove that limitation. Specifically engineered for the HPM-GNR1U motherboard, these modular kits enable SIs to seamlessly integrate enterprise-grade NVMe storage into their own custom or proprietary 1U chassis.

Whether your end-use application demands ultra-dense scratch storage for AI inference or high-capacity drives for localized data logging, these kits provide the plug-and-play hardware building blocks to scale effortlessly.

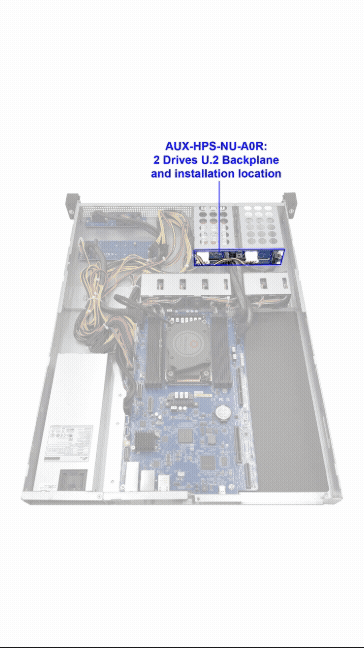

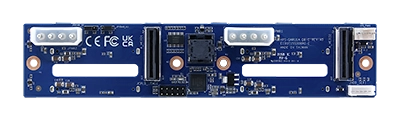

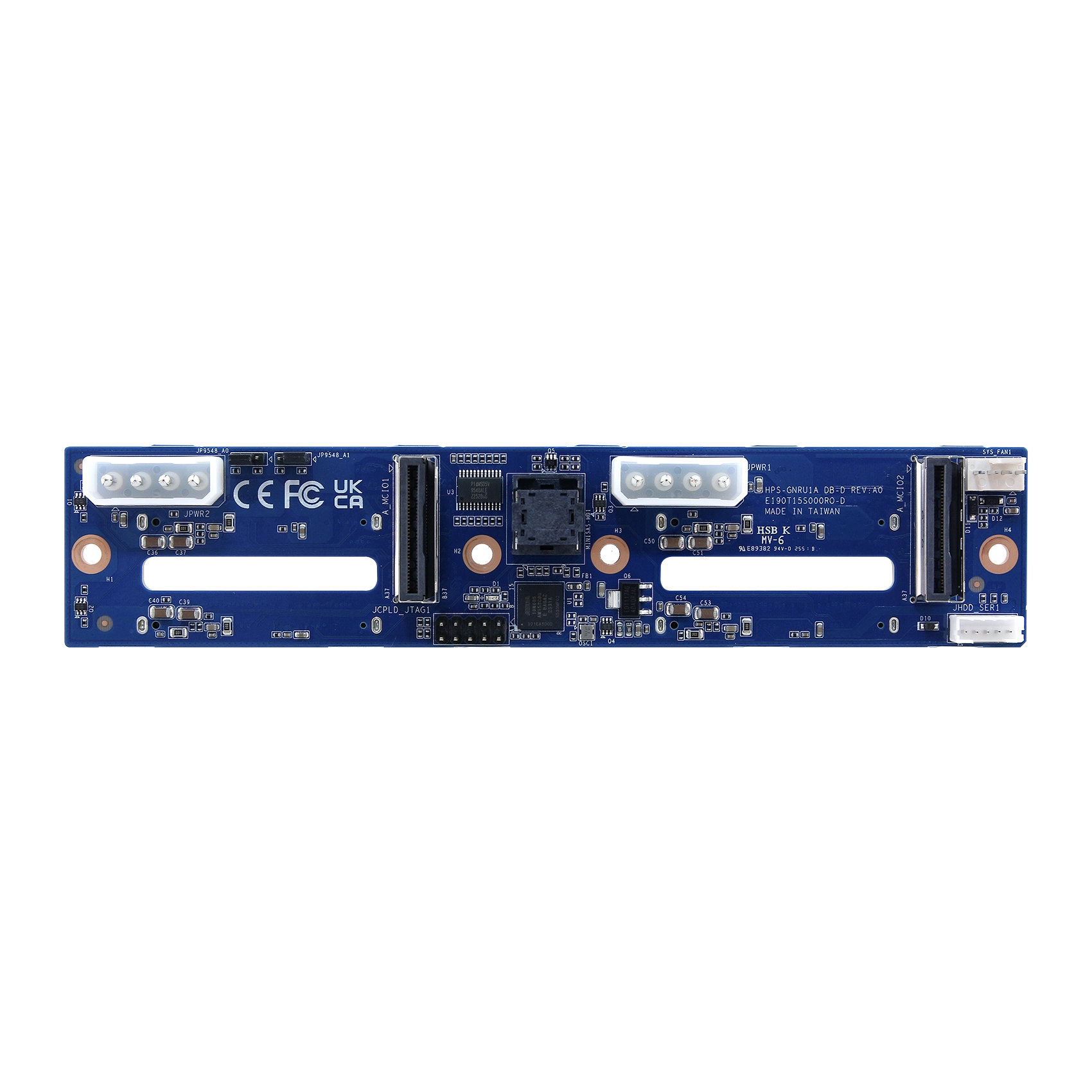

1. AUX-HPS-NU-A0R: 2-Drive U.2 Backplane Kit

  • Best For: Applications requiring high-capacity, heavy-duty enterprise storage.

  • Storage Support: Designed for up to 2x U.2 (2.5") NVMe SSDs.

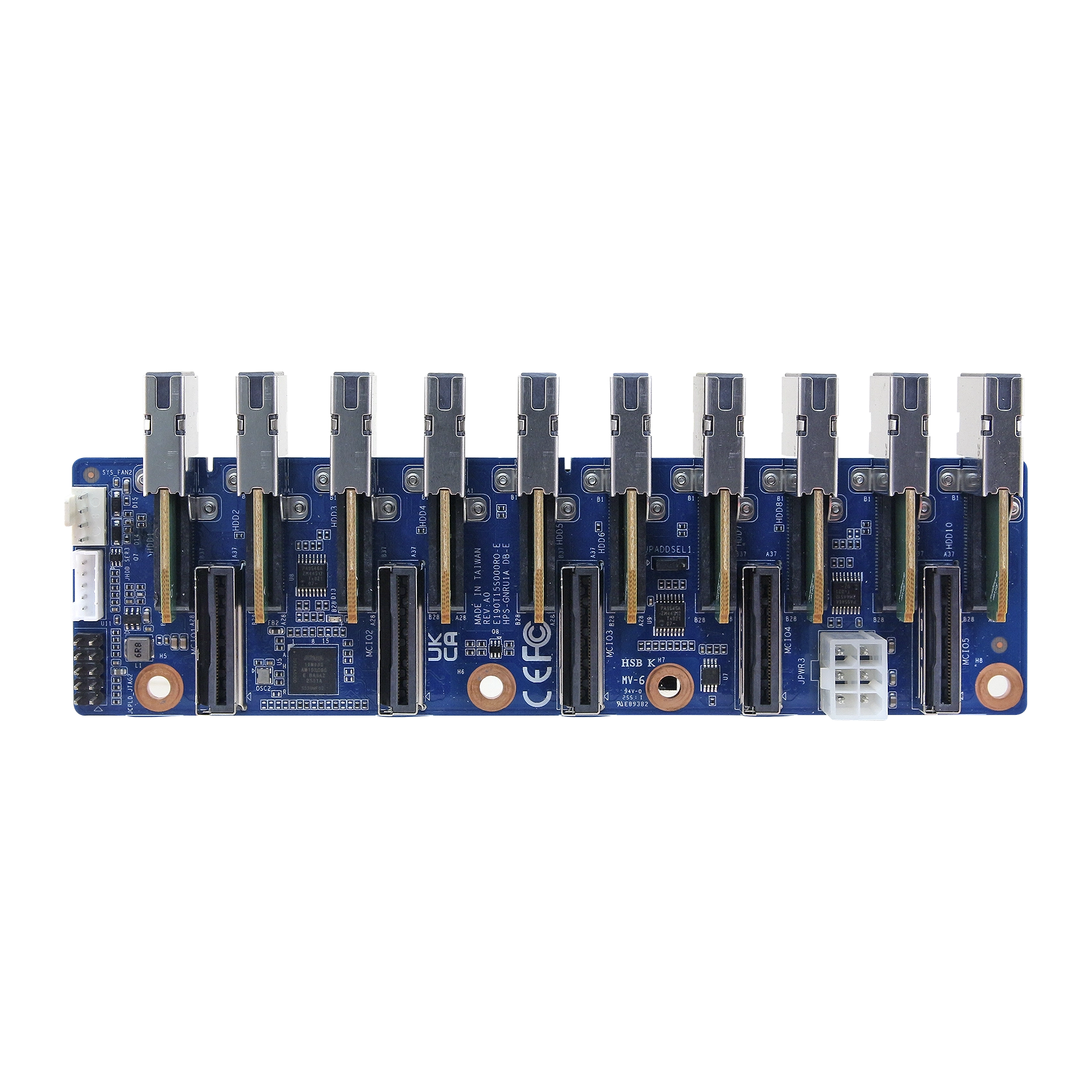

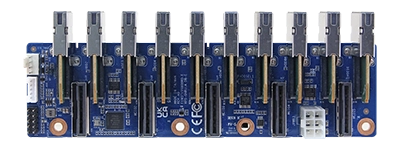

2. AUX-HPS-ES-A0R: 10-Drive E1.S Backplane Kit

  • Best For: Ultra-dense, high-throughput, and IOPS-heavy Edge AI or HPC deployments.

  • Storage Support: Designed for up to 10x E1.S NVMe SSDs.

IPMI Support

HPM-GNRDE dual sockets support 6th Gen Intel Xeon Processors

The IPMI (Intelligent Platform Management Interface) is a set of industry-standard specifications for hardware-based subsystems that provide management and monitoring capabilities independently of the host system's CPU, firmware, and operating system. Used together with a BMC (Baseboard Management Controller), IPMI allows a system administrator to perform many different monitoring and management tasks remotely without having to be physically located next to and connected to the system – such as power cycling a system, installing BIOS or firmware updates, and monitoring fan speeds and temperatures. BCM HPC solutions have built-in onboard BMC/IPMI technology with real-time system monitoring and provide preventive maintenance to minimize system downtime and field service cost.

System
CPU 1 x LGA4710 socket supports 6th Gen Intel® Xeon® 6500P/6700P/6700E series Processor, up to 350W TDP
System Memory 8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 2TB
BIOS AMI® UEFI BIOS
TPM Onboard TPM 2.0
H/W Monitor CPU Temperature
Fan Speed and Voltage Monitoring
Fan Speed Control
Case Open Detection
Watchdog Timer System Reset Event. 0 ~ 6553 seconds
IPMI/Graphics
Controller AST2600 Series BMC Controller
Interface 1 x Mini-DisplayPort
Resolution 1920 x 1200 @ 60Hz 32bpp
IPMI IPMI 2.0
Ethernet
Controller 1 x Intel® I210-AT Ethernet Controller (1GbE) shared IPMI management port
1 x Intel® E610-XAT2 Ethernet Controller supports 2-Ports (10GbE each LAN port)
LAN Interface 4 x RJ45 includes:
1 x MGMT port for dedicated IPMI access only
1 x 1GbE port shared with IPMI access
2 x 10GbE ports
Expansion Slots
PCI Express 1 x PCIe Gen5 x32 Riser Slot
1 x PCIe Gen5 x8 Riser Slot
MCIO 5 x MCIO 8i Connectors with Hot-Swappable Support (PCIe Gen5)
Supported OS
Windows Windows 11 SAC and LTSC
Windows Server 2025
Linux Ubuntu 24.04 LTS or later
Red Hat Enterprise Linux (RHEL)
External I/O Ports
Display 1 x MiniDP Connector
USB 2 x USB 3.2 Gen1 ports
LAN 4 x RJ45 includes:
1 x RJ-45 1GbE Ethernet Connector Shared with IPMI
1 x RJ-45 Connector for Console
2 x RJ-45 Connectors for 10GbE
COM Port 1 x COM Port
Internal I/O Connectors
USB 2 x Internal USB 3.2 Gen1 ports
1 x Internal USB 3.2 Gen1 type A receptacle
1 x Internal USB 2.0 ports
CMOS Battery 1 x Horizontal Socket Type CMOS Battery Holder with CR2450
Regulatory Compliance
Design to Comply with CE/FCC
Mechanical and Environment
Operating Temperature 0 ~ 55°C (32 ~ 131°F)to support up to 350W TDP CPU
0 ~ 55°C (32 ~ 131°F)to support up to 270W TDP CPU
Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Dimensions (L) x (W) 13” x 8” (330.2mm x 203.2mm), PCB thickness is 2.79 mm

* All product specifications and product images are subject to change without notice. Last update: 06/11/2026

Document
Datasheet
BIOS Version Revision Note Download
BIOS - Contact Tech Support
Driver Type Operating System Download
Drivers - Contact Tech Support
Date Description Download
Product Photo Model Name Description
HPS-GNR1U with E1.S Drive Bay HPM-GNR1U Single Intel® 6th Gen. Xeon Scalable Processors, LGA 4710, 16 x DDR5 up to 4TB, 1 x Gbit LAN, 1 x 2.5Gbit LAN, 5 x PCIe 5.0x16, 1 x PCIe 5.0x8, 4 x USB 3.2, 5 x SATA III, EATX, 2 x 10Gbit Ethernet ports

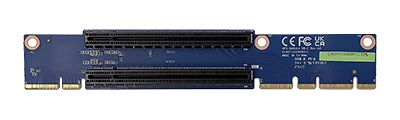

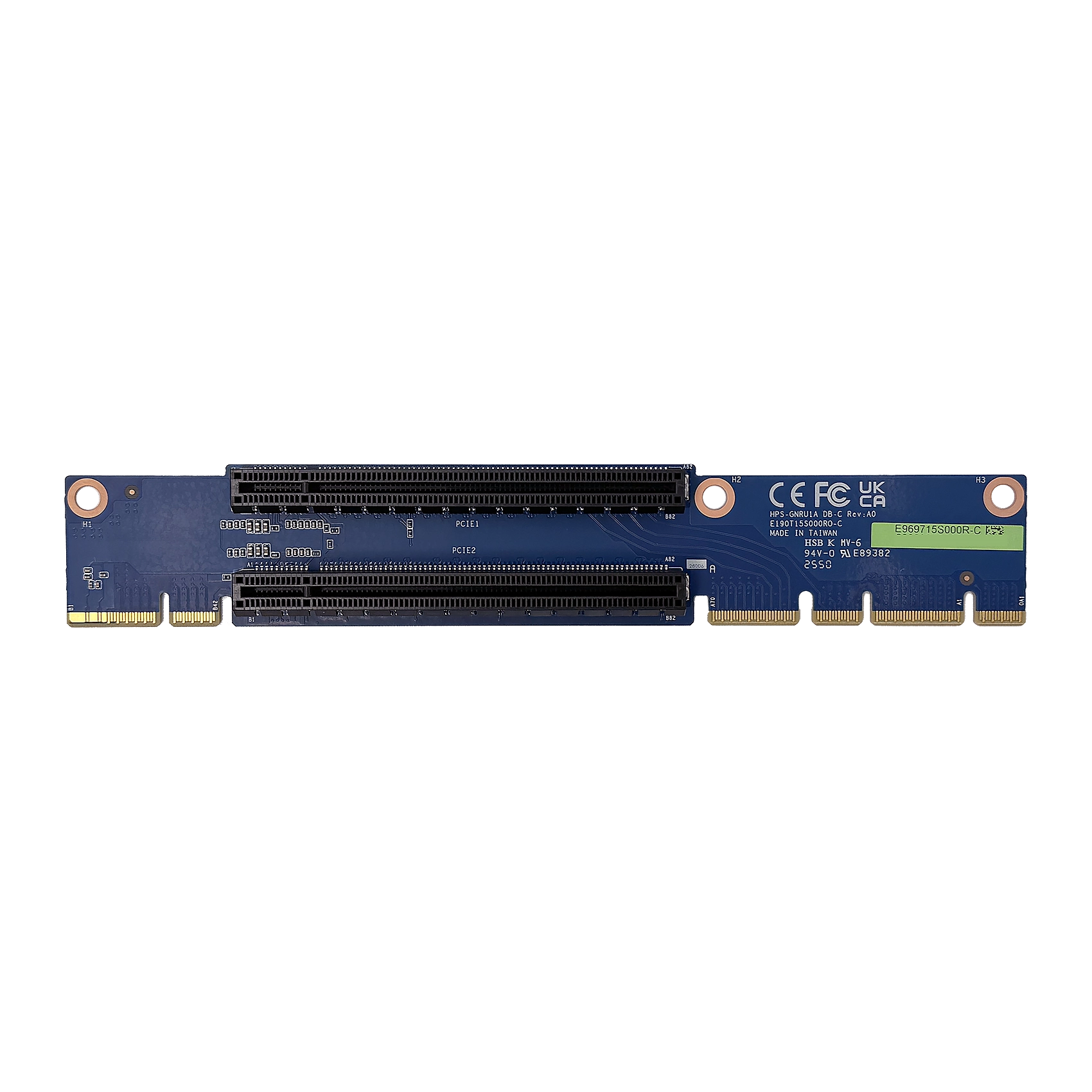

HPM-GNR1U PCIe x32 Riser Card AUX-HPS-FH-A0R Full Height Full Length 1U PCIe x32 Dual PCIe x16 Slot Riser Card

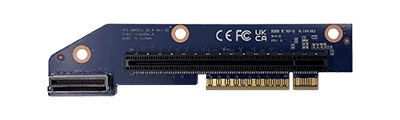

HPM-GNR1U Half Height Half Length 1U PCIe x8 Riser Card AUX-HPS-LP-A0R Half Height Half Length 1U PCIe x8 Riser Card in x16 Physical Slot with MCIO 8i
10 Drives E1.S Backplane AUX-HPS-ES-A0R 10 Drives E1.S Backplane
2 Drives U.2 Backplane AUX-HPS-NU-A0R 2 Drives U.2 Backplane
