Product End of Life (EOL) Notification

This product has reached the end of its lifecycle and is no longer available for new deployments. If you are looking for a replacement, please contact our team to explore our current lineup at BCMSales@bcmcom.com.

HID-2334 HID-2334 HID-2334 HID-2334 HID-2334

HID-2334

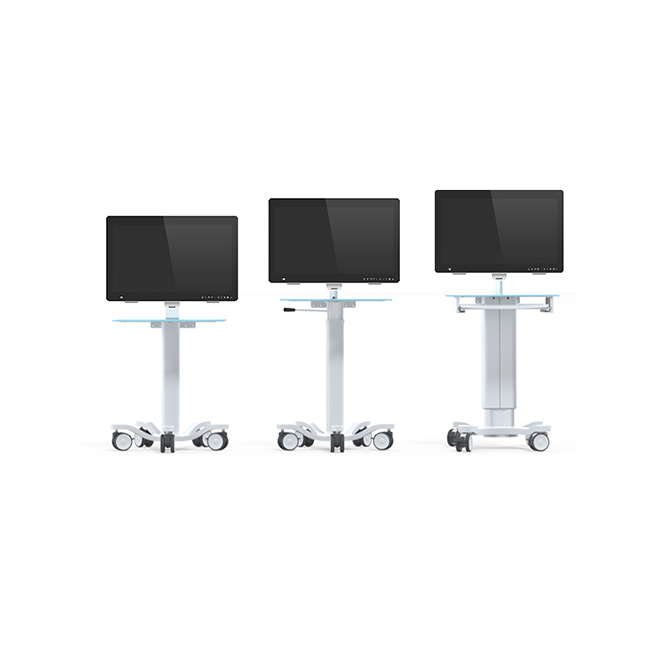

23.8” Ultra Light Medical Cart Panel PC with Multi-touch Function

  • 23.8” Full HD PCAP Multi-touch
  • 7th Generation Intel® Kaby Lake Core i5 Processor
  • LED Reading Light Bar
  • Optional Barcode Scanner
  • Optional Built-in Privacy Screen
  • Optional 5.0M Auto-focus Camera with cover
  • Opitonal 2 x 6900mAh Hot Swappable Batteries
  • Optional 4 Slots Charging Bay
  • IP65 Front Panel Protection
HID-2334 Medical Panel PC
HID-2334 Hot-Swappable Battery

Hot-Swappable Battery

  • Easy and Quick Access Side Opening Design
  • Two Hot Swappable Lithium Ion Battery
  • 13600mAh Total Capacity

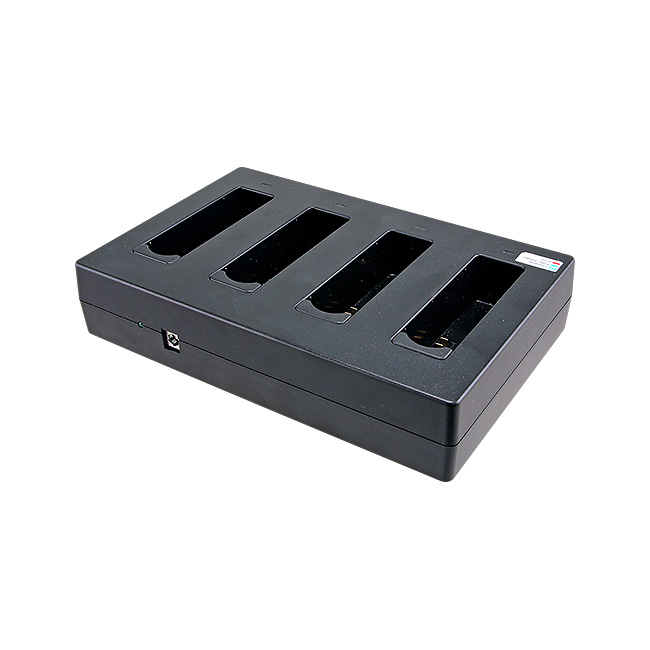

  • Battery Charging Kit charging up to 4 batteries at a time

Multi-features User Interfaces

  • 1. NFC
  • 2. 2W Stereo Speakers
  • 3. Reading Lights
  • 4. 2D Barcode Scanner
  • 5. Touch Buttons

HID-2334 Bottom View

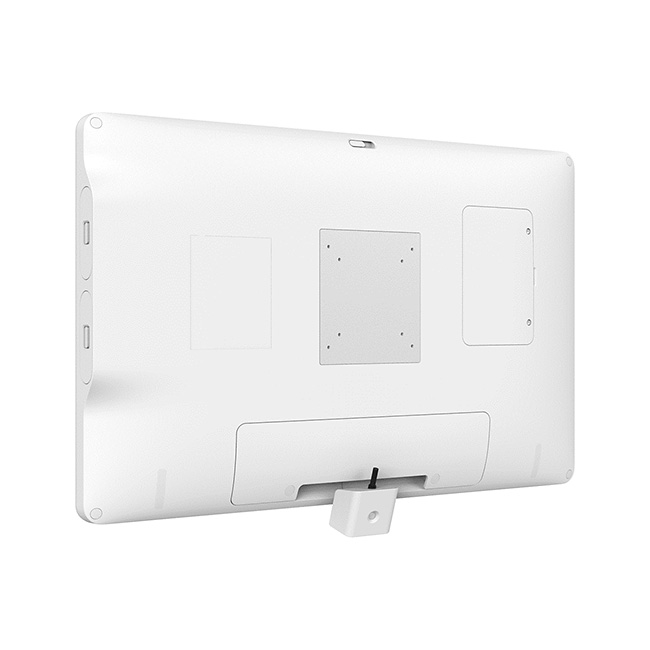

HID-2334 Back View

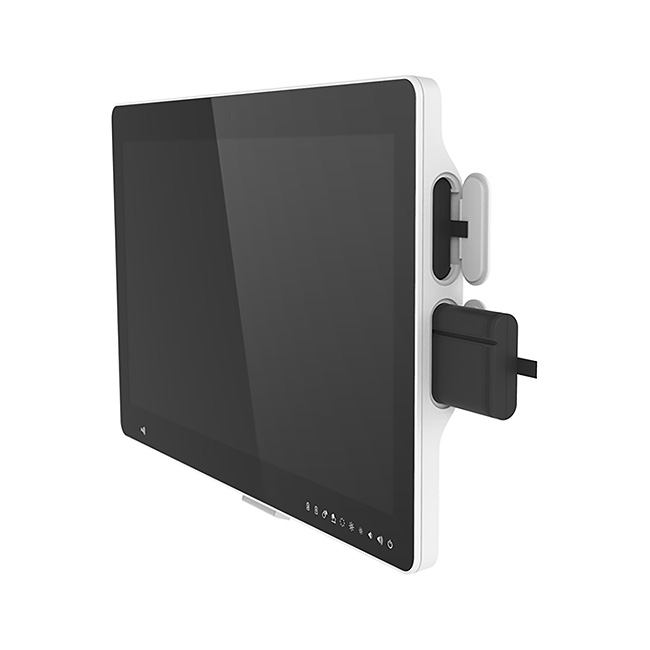

Light Weight, Sleek and Clean Design

  • 1. Side Opening For Two Built-in Batteries
  • 2. Integrated Camera Cover (Switch to Open/Close Camera)
  • 3. Optional Barcode Scanner with Bracket
  • 4. Easy Access Service Window

Touch Buttons

Touch buttons from left to right:

  • Battery Life Status
  • Touchscreen On/Off
  • Reading Light On/Off
  • Backlight On/Off
  • Brightness Adjustment
  • Volume Adjustment
  • Power Button

HID-2334 Bottom View
System
CPU 7th Generation Intel® Kaby Lake Core i5-7300U Processor
System Chipset Integrated in Processor (SOC)
System Memory 2 x 260pin SODIMM socket up to 32GB Per Slot DDR4 2400 SDRAM
Wireless Communication Optional Wi-Fi 1T1R 802.11b/g/n/ac/ BT4.0
Watchdog Timer H/W Reset, 1sec. ~ 65535sec. and 1sec./step
H/W Status Monitor Monitoring System Temperature & Voltage
Battery Optional Smart Battery Pack
14.4V 6900mAh, 99.4Wh
Expansion 1 x M.2 E Key 2230
1 x mPCIe with SATA or PCIe x1 mSATA
Storage 1 x 2.5” Drive Bay
OS Information Win10 64 bit/Linux
Panel
LCD Size 23.8”, Full HD
Resolution 1920x1080
Pixel Pitch 274.5×274.5
Contrast Ratio 3000
Viewing Angle 89(U), 89(D), 89(L), 89(R)
Response Time 16ms
Backlight LED
Touch Type Projective Capacitive
Touch Controller USB touch (EETI EXC3188)
Data Collection
Camera 5.0M CMOS with Auto-focus
NFC Built-in NFC RFID Module
Audio
Chipset Realtek ALC-series HD Codec
Speaker Output 2 x 2W
Ethernet
Chipset 1 x Intel® I211AT, 1 x Intel® I219LM
Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
I/O
USB 4 x USB 3.0
SATA 1 x SATA III
HDMI 1 x HDMI
Display Port 1 x DP
Power Requirement
Power Connector Lockable DC Jack, +12V~+26V
Power Mode AT/ATX (ATX is default setting)
Adapter Medical grade, 120W/24V
Mechanical and Environment
Power Type DC in +19V~24V
Operating Temp 0°C ~ 40°C (32°F ~ 104°F)
Storage Temp -30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Weight 6.9 kg (without Batteries and Adapter)
Dimension (L x W x H) 23.3” x 15.04” x 1.95” (592 x 382 x 49.5mm)
IP Rating Front IP65
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
System Fan Fanless
Construction - Front / Rear White Plastic / White Plastic
Finishing Anti-Microbial
Fanless Yes
Color White
Certification Information
CE IEC/EN60601-1-2
FCC Part 15 Class B
UL60601-1 AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012,C1:2009/(R)2012 and A2:2010/(R)2012
CB IEC 60601-1/A1: 2012 & EN 60601-1/A1:2013 (Ed 3.1)
EN 60601-1: 2006+A11:2011+A1:2013+A12:2014

* All product specifications and product images are subject to change without notice. Last update: 2020/11/30
