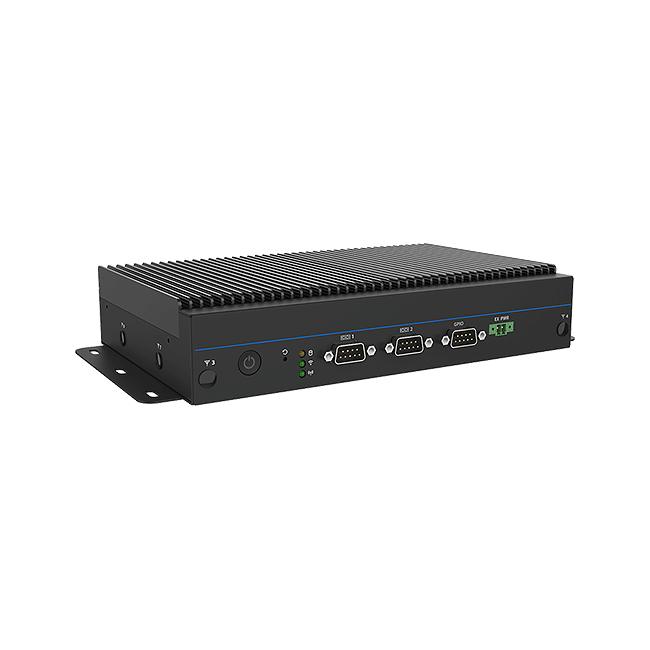

11th Gen Intel® Core™ Processor i7/i5/i3 Fanless Rugged Embedded System

  • 11th Gen. 10nm Intel® Core™ i7/i5/i3 Tiger Lake UP3 BGA Processor onboard
  • Intel® Iris Xe Graphic (Gen 12), up to 96 Execution Units (EU)
  • Supports IET expansion modules – Intelligent Expansion Technology (IET) provides high expandability and flexibility for developing or integrating with application-specific I/O requirements
  • 2 x SODIMM sockets support up to 64GB DDR4 3200MT/s
  • 2.5G Base-Tx GbE LAN - Intel® I225-LM Gigabit Ethernet Controllers
  • M.2 supports 5G (Sub-6G) module, NVMe SSD
  • 8 x Antenna Holes
  • Supports 4K Dual Display: DP++, HDMI 2.0b 4096x2304 max
  • Supports Wide Temperature (-40°C ~ 70°C)
  • Supports Standard Temperature (0°C ~ 70°C)
  • Supports Wide Range DC (+9 ~ +32 V)
  • Fanless operation, Rugged, metal chassis
  • IP-50 rating
  • Wall Mount, optional Din-Rail Mount
  • Supports HW TPM 2.0

EMS + IET modules, Flexible and Rapid I/O Customization

The Embedded Modular System (EMS) + Intelligent Expansion Technology (IET) modules = maximize the IO capabilities from the motherboard and enables the I/O customization more flexible, quick and easy!

Key Benefits

  • 10 different types of IET modules available
  • Long Product Lifecycle, 10-15+ years
  • Well Thermal Design, Fanless, Rugged, Reliable
  • Cableless Design. Shock + Vibration Protections

IET EXPANSION MODULES FOR VARIOUS APPLICATIONS

EMS-TGL is a fanless rugged low-power and high performance embedded computer supports 11th Gen Intel® Core™ i7/i5/i3 processors delivering a balance of performance and responsiveness in a low-power platform built on third-generation 10nm process technology.

EMS-TGL provides rich IO interfaces including 4-USB 3.1, 1-DP, 1-HDMI, 2-COM ports, 2-LAN ports (1 x 2.5G + 1G), 8-bit GPIO, 9-32V DC-in, 1-Ext Power Switch etc. For applications that require additional or specific IO interfaces can be achieved by the IET modules.

IET stands for Intelligent Expansion Technology. It is designed for the rugged high performance compact computer like EMS-TGL to be able to support expansion modules for some specific applications that require additional IO such as more COM/USB/LAN/HDMI ports based on the standard EMS-TGL SKU.

There are several IET expansion modules designed ready for specific applications listed below.

AUX_MX01

Fare Collection / Gate Control

AUX_MX02

Router / Workstation

AUX_M03

Fare Collection / Gate Control

AUX_M04

Surveillance System / AGV

AUX_M07

Automation / Factory

AUX_M08

Machine Vision in Factory

EBM-BYTS DB-A

General use/ Multi-display

EBM-BYTS DB-E

Inspection/ Monitoring System

EBM-BYTV DB-B

Expansion Slot/ Multi-Display

EBM-CDVS DB-A

General use/ Multi-Display

Supports 2.5G Ethernet

Supports 2.5G Ethernet

One RJ45 LAN port by Intel® I225-LM Gigabit Ethernet Controllers (up to 2.5GbE) 10/100/1000/2.5G Base-Tx GbE Compatible

Supports 5G Module

Targeting application using 5G technology include Robot, AGV/UGV, AR/VR, Video Surveillance/ Public Security, Edge Computing, Vehicle-Mounted Terminal, Telemedicine and more.

5G technology provides high speed communication, low latency and multi-connections performance. 5G module requirements for a system include:

  • M.2 B-Key 3042/3052 supports 5G modules
  • USB3.1 / PCIe 3.0 interface
  • 4-6 Antenna holes on system
  • Compatible 5G Antenna
Supports 5G Module
Supports NVMe SSD

Supports NVMe SSD

M.2 M-Key 2242/2280 supports PCIe Gen. 3 x 4 (NVMe SSD). Using NVMe (Non-Volatile Memory Express) SSD increases data communication performance and interoperability on a broad range of enterprise and client computing systems.

Applications

Industrial/Energy | Office Automation | Retail | Public Sector | Automotive | Vision Systems | Transportation

EMS-TGL is a low-power, high-performance computing rugged fanless box PC with Advanced Graphics, Media, Display Performance for 5G, IoT and AIoT applications:

Computer Vision

with inferencing capabilities, network video recorders, Machine vision and inspection systems in smart factory

Autonomous Robotic

Rugged, robotics, mobility, wireless connectivity, security

Digital Signage

Digital Signage and self-serve kiosk with AI-enhanced for analytics

Vehicle Telematic

Intelligent transportation system, license plate scanning system

For Dynamic Traffic Monitoring Devices

Dynamic Traffic Monitoring Devices are used to solve the traffic related issues during peak time. Such issues include traffic jam monitoring, object detection, behavior identification, traffic flow counting, system performance and thermal issue form long hours of non-stop operations.

EMS-TGL provides many major required features for Dynamic Traffic Monitoring Devices:

  • Outstanding CPU/GPU Performance
  • Supports 5G Communication
  • Supports DDR4 DRAM 3200 MT/s, NVMe SSD, and high graphic performance
  • DIN-RAIL Mounting Capability
Dynamic Traffic Monitoring
Packaging Inspection Machines

For Packaging Inspection Machines

Hi-speed inspection machines usually require six or more camera connections at different stages in the production line. With our IET (Intelligent Expansion Technology) capability, EMS-TGL can be easily customized to meet the requirements and faster time-to-market.

System
CPU 11th Gen. Intel® Core™ i7/i5/i3 BGA Processor Onboard. Processor options:
Intel® Core™ i7- 1185GRE (15W, 12M Cache, up to 2.80 GHz) - supports Wide Temp.
Intel® Core™ i5- 1145GRE (15W, 8M Cache, up to 2.60 GHz) - supports Wide Temp.
Intel® Core™ i3- 1115GRE (15W, 6M Cache, up to 3.00 GHz) - supports Wide Temp.
Intel® Core™ i7- 1185G7E (15W, 12M Cache, up to 2.80 GHz) - supports Standard Temp.
Intel® Core™ i5- 1145G7E (15W, 8M Cache, up to 2.60 GHz) - supports Standard Temp.
Intel® Core™ i3- 1115G4E (15W, 6M Cache, up to 3.00 GHz) - supports Standard Temp.
System Memory 2 x 260-pin SODIMM sockets suppport up to 64GB DDR4 3200MT/s
BIOS AMI uEFI BIOS 256 Mbit SPI Flash ROM
I/O Chip EC ITE IT8528E
Audio Codec Realtek HD Audio
Ethernet 1 x Intel® I225-LM Ethernet Controller, 10/100/1000/2500 Base-Tx GbE Compatible
1 x Intel® I219-LM Ethernet Controller, 10/100/1000 Base-Tx GbE Compatible
Expansion 1 x M.2 B-Key 2242/3042/3052 supports SATA III/ Gen3 PCIe x1/ USB 3.1 and SIM card slot
1 x M.2 E-Key 2230 for Wi-Fi & BT Module (CNVi)
1 x IET Interface for expansion module (1 x DDI, 2 x PCIe3 x2, 3 x USB 2.0, 1 x Line-out (R/L), 1 x SMBus, LPC)
Storage through 1 x M.2 M-Key 2242/2280, supports Gen3 PCIe x4 (NVMe SSD)
1 x M.2 B-Key 2242, supports SATA (share with expansion slot)
Watchdog Timer H/W Reset, 1sec. ~ 65535sec.
H/W Status Monitor CPU & system temperature monitoring and voltages monitoring
Supported OS Win 10 64-bit, Linux
Display
Chipset Intel® Iris® Xe Graphics (i7-1185GRE/ i5-1145GRE/ i7-1185G7E/ i5-1145G7E)
Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115GRE/ i3-1115G4E)
Resolution DP++ 1.4: 4096x2304 @ 60Hz
HDMI 2.0b : Max. Resolution 4096x2304 @ 60Hz
Multiple Display Supports Dual Display
External I/O
Display 1 x HDMI
1 x DP++
USB 2 x USB 3.1 Gen 2x1 (10Gbp/s)
2 x USB 3.1 Gen 1x1 (5Gbp/s)
LAN 2 x RJ45
Audio 1 x Line-out, 1 x Mic-in
COM Port 2 x COM RS232/422/485 (select via BIOS, auto flow control via HW)
SIM Card Slot 1 x Internal SIM Card Slot
GPIO 1 x 8-bit GPIO (DB9)
Antenna 8 x Antenna with dust cover (6 x LTE+GPS / 2 x Wi-Fi)
Wire-Control Power On/Off 2-Pin Terminal Block
Power 1 x Power Button
1 x EX Power
1 x DC-in
LED Indicators WLAN, WWAN HDD, Reset
Power Requirement
DC Input DC in 12/24V (+9V ~ +32V), wide voltage single power input
TVS component for surge protection
Reverse current/voltage protection (Max. Currency: 13A)
DC-in Connector 3-Pin Terminal Block (V+. V-, GND)
ACPI Single power ATX Support S0,S3, S4, S5
ACPI 5.0 Compliant
Power Mode AT/ATX (ATX by default)
Mechanical and Environment
Operating Temperature -40°C ~ 70°C (w/SSD) ambient w/ air flow - Wide Temp
0°C ~ 70°C (w/SSD) ambient w/ air flow, Standard Temp
Storage Temperature -40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
IP Rating IP 50
Vibration Protection With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
Shock Protection With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms
Certification CE, FCC Class B
Mounting Standard: Wall Mount Kit
Optional: Din Rail Mount Kit
Dimensions Standard: 9.45" x 5.9" x 1.89" (240 x 150 x 48mm)
Optional: 9.45" x 5.9" x 2.72" (240 x 150 x 69mm) (w/ IET Module)
Weight 2.1 kg (System only)
2.9 kg (with Package)

* All product specifications and product images are subject to change without notice. Last update:  12/27/2022

Document
Datasheet
Manual
Model Name Description
EMS-TGL-i7W Intel® Core™ i7-1185GRE Processor, 2 x DDR4 SO-DIMM, 2 x COM, 4 x USB 3.1, 2 x M.2, 1 x HDMI, 1 x DP, 2 x LAN, 9-32V DC, Fanless, Wide Temp -40 to 70C
EMS-TGL-i5W Intel® Core™ i5-1145GRE Processor, 2 x DDR4 SO-DIMM, 2 x COM, 4 x USB 3.1, 2 x M.2, 1 x HDMI, 1 x DP, 2 x LAN, 9-32V DC, Fanless, Wide Temp -40 to 70C
EMS-TGL-i3W Intel® Core™ i3-1115GRE Processor, 2 x DDR4 SO-DIMM, 2 x COM, 4 x USB 3.1, 2 x M.2, 1 x HDMI, 1 x DP, 2 x LAN, 9-32V DC, Fanless, Wide Temp -40 to 70C
EMS-TGL-i7S Intel® Core™ i7-1185G7E Processor, 2 x DDR4 SO-DIMM, 2 x COM, 4 x USB 3.1, 2 x M.2, 1 x HDMI, 1 x DP, 2 x LAN, 9-32V DC, Fanless, 0 to 40C
EMS-TGL-i5S Intel® Core™ i5-1145G7E Processor, 2 x DDR4 SO-DIMM, 2 x COM, 4 x USB 3.1, 2 x M.2, 1 x HDMI, 1 x DP, 2 x LAN, 9-32V DC, Fanless, 0 to 40C
EMS-TGL-i3S Intel® Core™ i3-1115G4E Processor, 2 x DDR4 SO-DIMM, 2 x COM, 4 x USB 3.1, 2 x M.2, 1 x HDMI, 1 x DP, 2 x LAN, 9-32V DC, Fanless, 0 to 40C
Note Please check the manual for items included in the package.
60W Adapter & power cord are optional.
