| System |
| CPU |
Intel® Processor N150 Quad-core, 6W TDP, 6M Cache, up to 3.60 GHz, Products formerly Intel® Twin Lake Platform |
| System Memory |
1 x SO-DIMM socket supports DDR5 4800MHz up to 16GB |
| BIOS |
256Mb SPI BIOS |
| Ethernet Controller |
2 x Intel® Ethernet Controller I226-LM (2.5GbE) |
| Audio Codec |
Realtek HD Audio Codec
3W Per Channel |
| Expansion Interface |
1 x M.2 E-Key 2230, CNVi Support (PCIe x1 + USB 2.0)
1 x M.2 B-Key 2242/3042 with Nano SIM Card Socket (PCIe x1, SATA III, & USB)
|
| Storage |
64GB eMMC Onboard |
| TPM |
TPM 2.0 |
| OS Support |
Win 11,
Linux |
| Display |
| Chipset |
Intel® Graphics |
| Interface |
2 x DisplayPort 1.4b 4K@60Hz
1 x LVDS/eDP |
| Multi-Display |
Support 3 Independent Displays |
| External I/O |
| Display |
2 x DisplayPort |
| USB |
3 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 USB Type-C OTG |
| LAN |
2 x RJ45 |
| Audio |
Combo Audio Jack- Line-out and Mic-in |
| Internal I/O |
| Display |
1 x LVDS Header
1 x eDP Header (Optional) |
| USB |
2 x USB 2.0 Headers (4 Ports) |
| COM |
2 x RS232
2 x RS232/422/485 |
| SATA |
1 x SATAIII, 1 x SATA Power Connector |
| GPIO |
1 x 8-bits GPIO Header |
| DC-in |
1 x 4-pin DC-in Header |
| MIO |
1 x I2C Header, 1 x SMBus Header, 1 x SPI Header |
| Mechanical and Environment |
| Power Requirement |
12V-24V Wide Range DC Power
*12VDC adapter requires 5% voltage tolerance |
| Operating Temperature |
0°C ~ 60°C (32°F ~ 140°F) |
| Storage Temperature |
-20° C ~ 80° C (-4°F ~ 176°F) |
| Operating Humidity |
5% to 90% non-condensing |
| Cooling Design |
Heatsink Cooling Design |
| Form Factor |

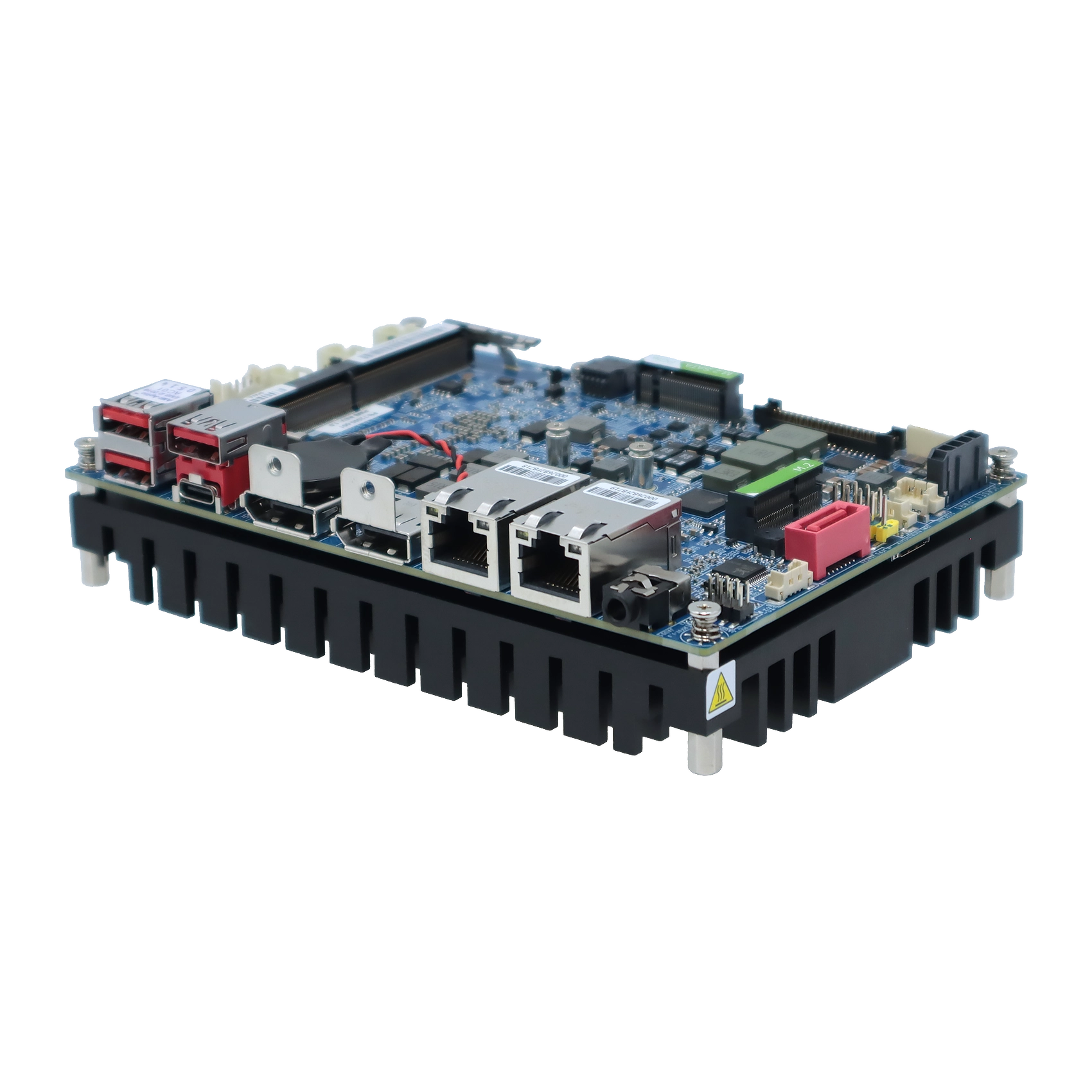

3.5" Single Board Computer (SBC) |
| Regulatory Compliance |
FCC Class B/CE/UL Second Edition, RoHS Compliant |
| Dimensions |
5.7" x 4" (146mm x 102mm) |
| Weight |
0.44lbs (0.2kg) |
