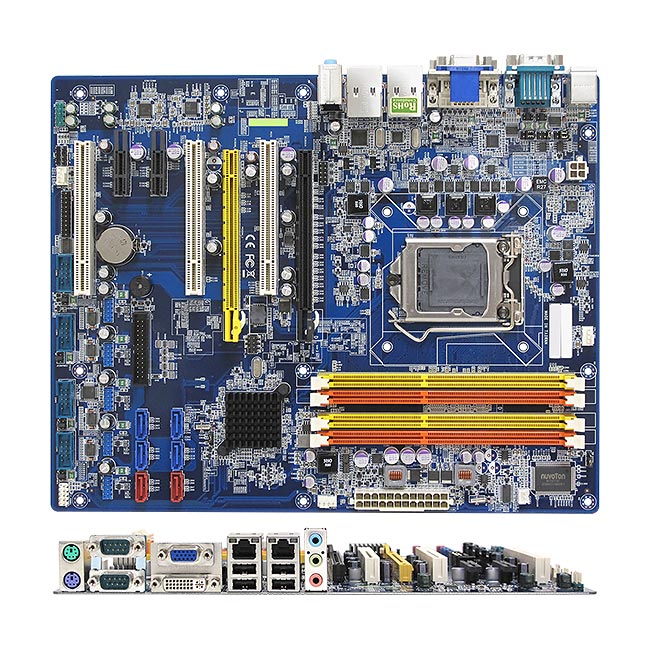

BC206C Intel C206 ATX Motherboard supports Intel Xeon and Intel Core i7/i5/i3 Processors and ECC Memory ideally for Server applications

BC206C

Intel C206 ATX Motherboard supports Intel Xeon and Intel Core i7/i5/i3 Processors and ECC Memory ideally for Server applications

  • Socket H2 LGA1155 supports 22nm/32nm Intel® Xeon, Intel® Core™ i7/i5/i3 Processors
  • Intel® C206 Chipset
  • ECC DDR3 memory support
  • 1 PCIe x16, 1 PCIe x4, 2 PCIe x1, 3 PCI
  • 6 x COM
  • 14 x USB 2.0
  • 2 x SATA III (6.0 Gb/s), 4 x SATA II w/ RAID
  • Intel® Active Management Technology 7.0
  • TPM 1.2

BC206C motherboard adopts similar schematic layout as its sister product, the BC67Q Sandy Bridge based product, but also provides greater processing power and more scalability in terms of overall system performance. In addition to providing ECC memory support critical to certain applications, the BC206C is designed to run the powerful 2nd generation Intel® Xeon® and 2nd generation Intel® Core™ i7, Core™ i5, and Core™ i3 desktop processors.

The BC206C is paired with Intel® C206 express chipset and allowing up to 64 GB DDR3 1066/1333 MHz ECC memory delivering server and workstation class performance. The Error Checking & Correction memory (ECC memory) enables the system to perform error-checking and correct internal data corruptions, a core feature for server stations, financial/banking, or scientific computing platforms where system stability and zero data corruption is a requirement.

System
CPU Socket H2 LGA1155 supports Intel® Xeon, Intel® Core™ i7/i5/i3 processors up to 95W TDP
System Chipset Intel® C206 PCH Chipset
System Memory Four 240-pin DIMM slots support up to 32 GB dual channel 1066/1333 MHz DDR3 SDRAM memory modules
BIOS AMI 64Mb SPI BIOS
I/O Chip Nuvoton NCT6776F
Expansion 1 x PCI Express x16 slot
1 x PCI Express x4 slot (x16 physical slot)
2 x PCI Express x1 slot
3 x PCI slots
LAN Controller LAN 1: Intel® 82579LM PHY Gigabit Ethernet Controller
LAN 2: Inetl® 82574L PCIe Gigabit Ethernet Controller
Audio Realtek ® ALC892 Audio Codec
Watchdog Timer Reset: 1 sec. ~ 255min. and 1sec. or 1min./step
H/W Status Monitor Monitoring System Temperature, Voltage, with Auto Throttling Control
TPM Integrated TPM 1.2
Display
Graphics Engine Intel® Integrated Graphic
Display Interfaces VGA, DVI-D
Display Capability Supports dual display
External I/O
KB/MS 1 PS/2 Keyboard, 1 PS/2 Mouse
Audio Line-in, Line-out, Mic-in, Front Audio Header
USB 4 x USB 2.0
COM 1 x RS-232, 1 x RS-232/422/485
LAN 2 x RJ-45
VGA 1 x DB-15
DVI 1 x DVI-D
Internal I/O
USB 5 x USB 2.0 Connector ( 10 USB Ports)
COM (Serial Port) 4 x RS-232 headers (with Voltage Selection)
SATA 4 x SATA II (3.0 Gbs) and 2 x SATA III (6.0 Gbs) w/ RAID
MIO 1 x 16-bits GPIO, 1 x LPT, 1 x CPU Fan, 1 x Chassis Fan, 1 x Front Panel, 1 x Front Audio, 1 x Amplifier
Mechanical and Environment
Power Type 1 x 24-pin ATX Connector, 1 x 4-pin ATX 12 Connector
Operating Temperature 0 ～ 60°C （32 ～ 140°F）
Storage Temperature -20 ～ 80°C （-4 ～ 176°F）
Operating Humidity 0 ～ 90％ Relative Humidity, Non-condensing
Storage Humidity 0 ～ 90％ Relative Humidity, Non-condensing
Form Factor ATX
Dimensions (L) x (W) 12" (L) x 9.6" (W)
Weight 1.85 lbs

* All product specifications and product images are subject to change without notice. Last update: 02/21/2014
