BCM Advanced Research, An Industry Leader Since 1990 in Industrial Motherboards & Systems June 11, 2008
Product News

BCM announces its new MX700CX series Mini ITX integrates Premium Graphics (LVDS, DVI, TV-out), Audio, Memory, Dual Gigabit LAN and Storage supports for Multimedia Applications

BCM’s new MX700CX-C15 and MX700CXD-C15 industrial Mini ITX motherboard are designed to replace the previous MX700CN series motherboards.

System
The MX700CX-C15 and MX700CXD-C15 utilizes power-efficient VIA C7 1.5G onboard CPU with VIA CX700M Chipsets supporting up to 1 GB DDR2 system memory and 400 MHz FSB. The VIA CX700M Chipset features the VIA UniChrome™ Pro II Integrated Graphics Processor (IGP) which delivers optimized performance for all multimedia, digital entertainment, and productivity applications.

Both MX700CX-C15 and MX700CXD-C15 features LVDS, DVI or TV-out output. It supports Dual Gigabit LAN, 8 channels High Definition Audio, 4 COM, 6 USB, 2 SATA and GPIO. The expansion interface includes 1 PCI, Mini PCI and Compact Flash. The difference between both boards is that MX700CX-C15 supports standard ATX power while MX700CXD-C15 supports DC 12V input power.

Applications
This product is a great solution for Point of Sales (POS) stations, multimedia Kiosks, digital signage, industrial PC and ultra compact low power desktop systems.

Samples will be available in middle of June, 2008. For more detail please contact us at (949)470-1888 or email us to BCMSales@bcmcom.com.

Features:
• VIA C7 1.5G onboard CPU
• VIA CX700M Chipset
•1 DDR2 DIMM socket supports up to 1GB DDR2 400/533 SDRAM
• VIA Unichrome Pro II Engine
• DVI
• 18/24-bit LVDS
• TV-out
• Mini PCI
• Compact Flash Socket
• 4 COM
• 6 USB
• GPIO
• HD Audio
• 2 x Gigabit LAN
• Mini ITX (6.7" x 6.7")
• RoHS Compliant

* All product specifications and product images are subject to change without notice.

VIA C7 Processor VIA UniChrome Pro

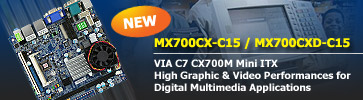

MX700CX-C15 / MX700CXD-C15 Mini ITX for multimedia appliances
MX700CX-C15 / MX700CXD-C15
MX700CX-C15 / MX700CXD-C15
Compact Flash Socket on the back

About BCM
Established in 1990, BCM Advanced Research has over 18 years experience designing and manufacturing custom and standard long-life motherboards. We offer industrial motherboards in multiple form factors - Mini ITX, Micro ATX, ATX and customized form factor. We also offer Single Board Computer & PC104, System-On-Modules (SOM), ISA motherboards and Embedded PCs. In addition to the off-the-shelf motherboards, BCM specializes in Custom Motherboards Designs especially for the Medical, Gaming/Slot machine, Lottery machine, POS, ATM, Kiosk, Digital Signage and Industrial Automation industries.
