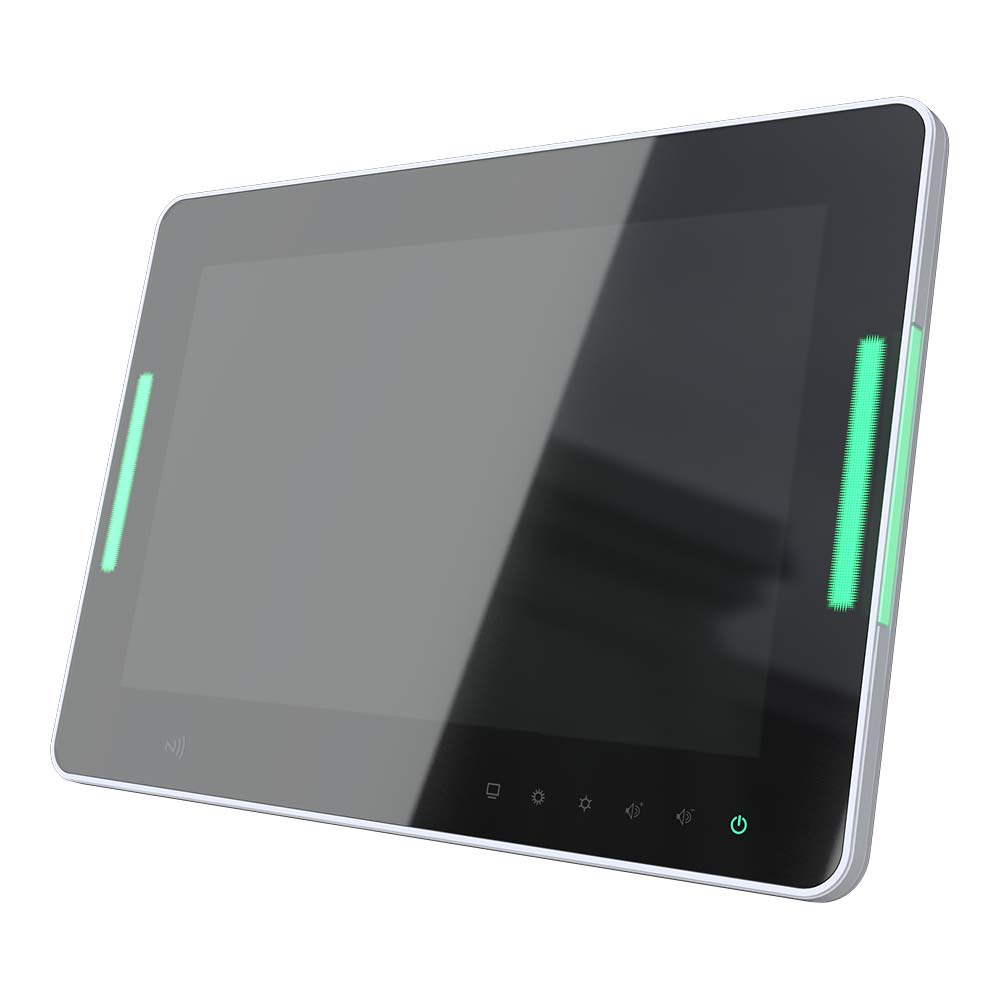

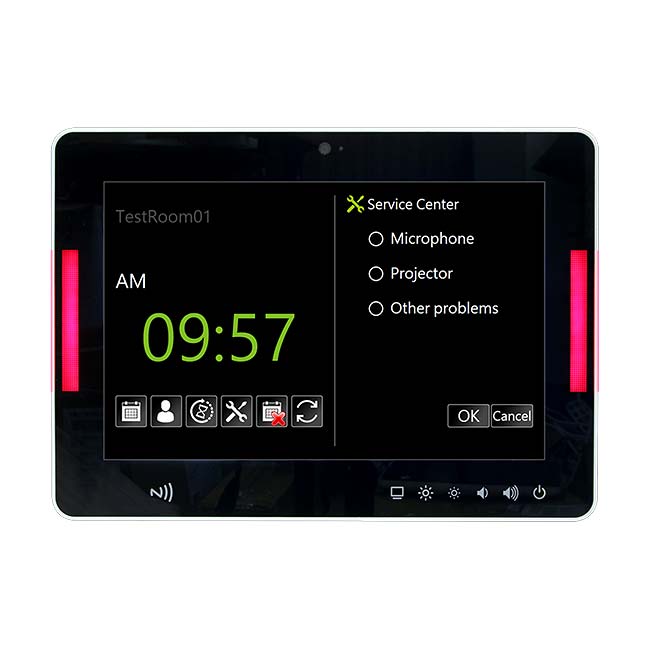

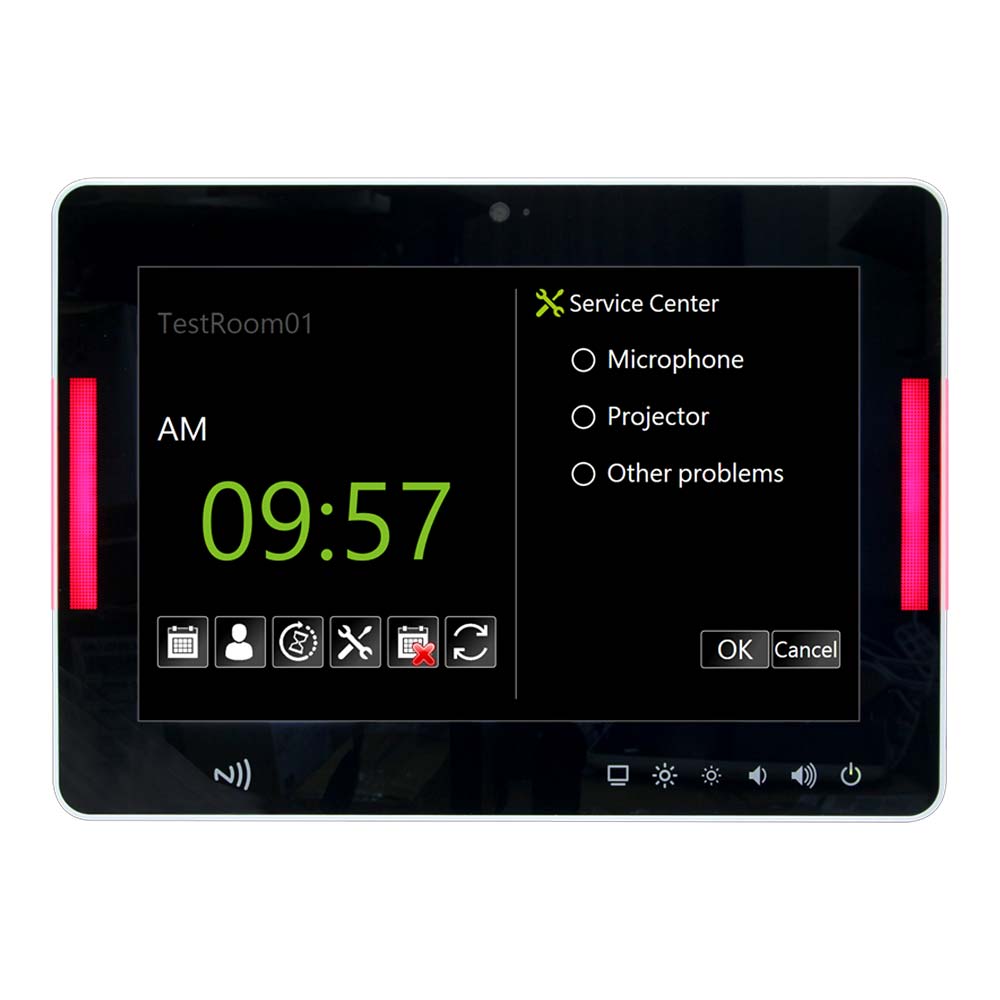

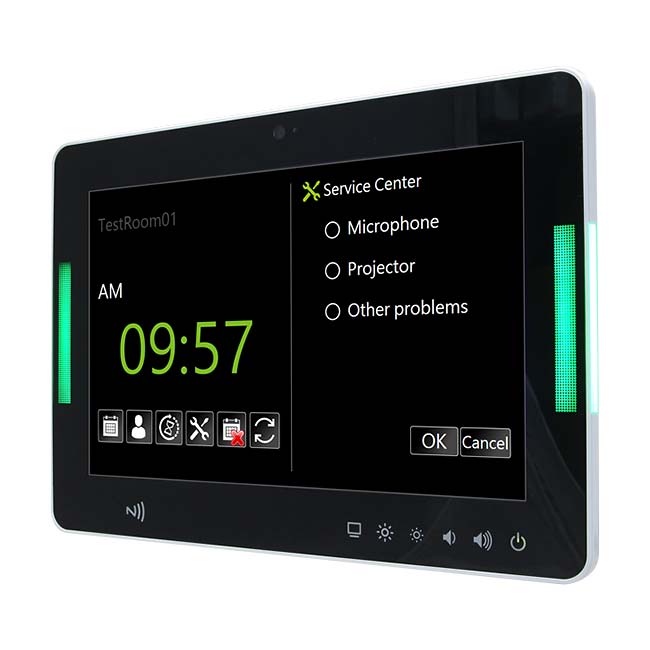

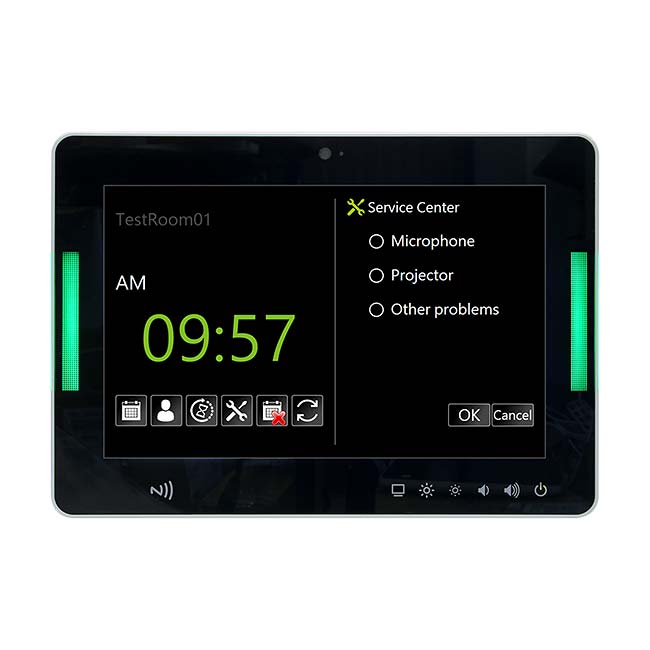

VNS-10W01 10 inch Panel PC with Intel Atom Z8350 Processor Onboard

VNS-10W01

10.1" Ultra Slim Panel PC with Intel® Atom™ x5-Z8350 Processor Onboard

Intel® Atom™ x5-Z8350 Processor: 2M Cache, up to 1.92 GHz
2GB / 4GB RAM
32GB / 64G eMMC
PCAP Touch
10/100/1000 Ethernet (PXE Boot)
Touch button (Power/ Brightness/ Volume/ LED)
RS232 or RS422 or RS485
DC 12~24V Input or Powered LAN 802.3AT
NFC Reader
A-MIC
2.0MP Camera
Speak 4Ω 2.0W/2.5W(MAX)
LED Indicating Light Bar (Light color: Green and Red, Illuminating area: 70*8mm(front),70*5mm(side))

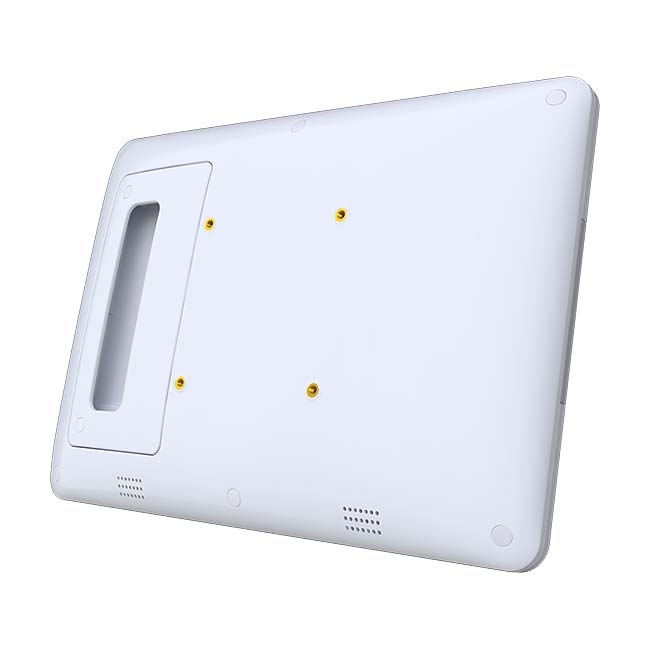

75 x 75mm VESA Mount
Antibacterial Plastic

System
CPU	Intel® Atom™ x5-Z8350: 2M Cache, up to 1.92 GHz
System Memory	2GB / 4GB DDR3L RAM
Wireless Communication	802.11 b/g/n
Storage	32GB eMMC / 64GB eMMC
OS Information	Windows 10 IoT (64 bit) Android 5.1 (64 bit) Ubuntu 19.04 (64bit)
Display
Resolution	LVDS: Max. resolution 1280x800 @ 60Hz
Multiple Display	Windows support extended mode
Data Collection
Camera	2M pixel
NFC	NFC Reader
Panel
LCD Size	10.1"
Resolution	1280x800
Luminance	350 cd/m2
Viewing angle	170° (H/V)
Touch Type	PCAP
Audio
Speaker	2 x speaker (L & R)
Speaker Output	4Ω 2.0W / 2.5W (MAX)
Ethernet
Chipset	Realtek RTL8111H(S)-CG
LAN Port	1 x RJ45
I/O
USB	2 x USB 2.0
Camera	2.0MP Camera
External I/O Connector	1 x RJ45 for RS232 or RS422 or RS485 2 x USB 2.0 Type A 1 x 10/100/1000 Ethernet 1 x 4-Pin 3.5mm Audio Jack
Internal I/O Connector	1 x Touch Button interface 1 x eDP & Dual channel 24bit LVDS 1 x I2C interface for PCAP 5 x USB interface for PCAP, Camera and others 1 x Micro USB2.0 client (reserved) 1 x Micro SD connector 2 x LED Bar interface 1 x A-MIC
Camera	2.0MP Camera
Power Requirement
Power Requirement	DC Input, 12~24V
Power Type	DC Jack
Adapter	Input: 100~240 Vac/50~60 Hz Output: 60W Adapter (12V @ 5A Adapter)
Mechanical and Environment
Operating Temp	0°C ~ 40°C (32°F ~ 104°F)
Storage Temp	-10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Weight	2.43 lbs/ 1.1 Kgs
Dimension (L x W x H)	10.63" x 7.6" x 1.1" (270 x 193 x 28 mm)
Mounting	VESA 75x75mm
Certification	CE FCC Class B
Reliability	Vibration Test, Shock Test, Drop Test: please check information in the Manual.

* All product specifications and product images are subject to change without notice. Last update: 2021/04/09

Please Note - By downloading the files from BCM website, you agree to accept the terms and conditions.

Document
Datasheet
Manual

Model Name	Description
VNS-10W01-32G-WN	10" Panel PC, Intel Atom Z8350 Processor 2GB DDR3L, 32GB eMMC, DC12~24V, Windows 10 IoT 2019
VNS-10W01-64G-WN	10" Panel PC, Intel Atom Z8350 Processor 4GB DDR3L, 64GB eMMC, DC12~24V, Windows 10 IoT 2019
VNS-10W01-32G-LX	10" Panel PC, Intel Atom Z8350 Processor 2GB DDR3L, 32GB eMMC, DC12~24V, Linux OS
VNS-10W01-32G-AN	10" Panel PC, Intel Atom Z8350 Processor 2GB DDR3L, 32GB eMMC, DC12~24V, Android 5.1 OS
