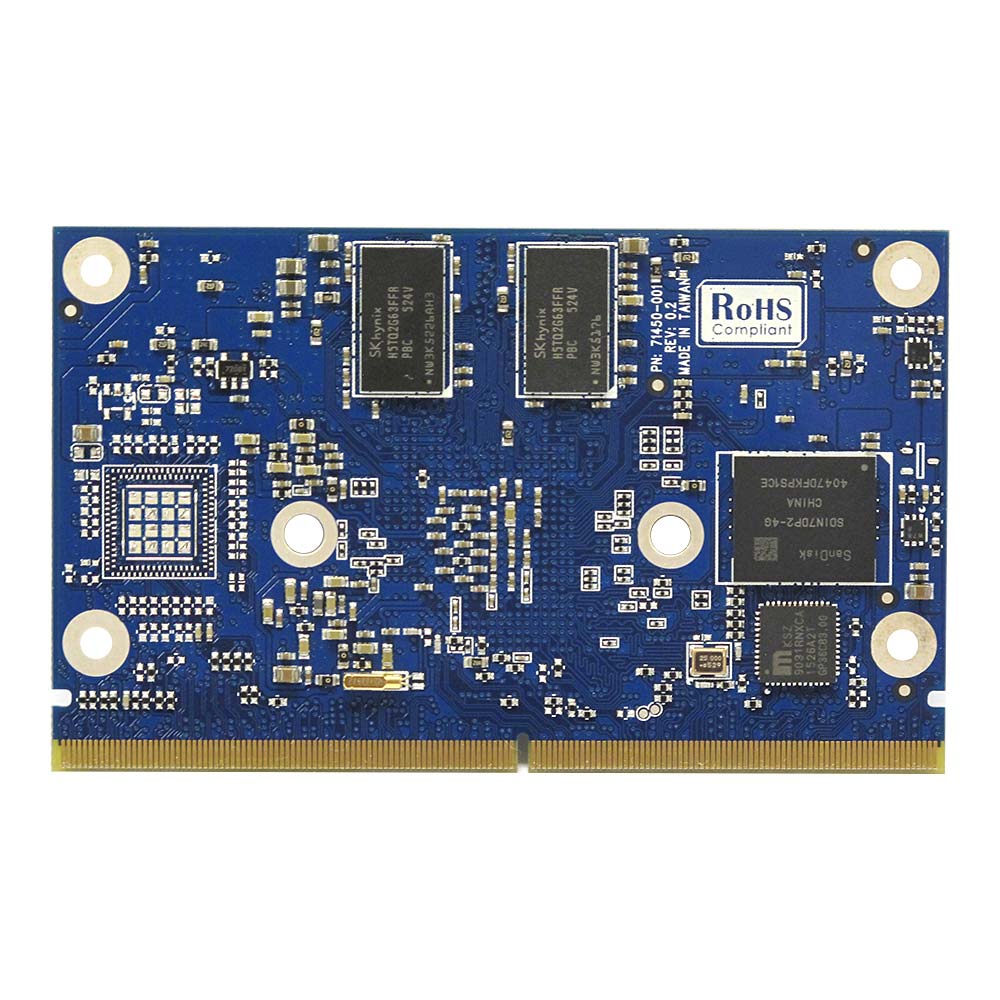

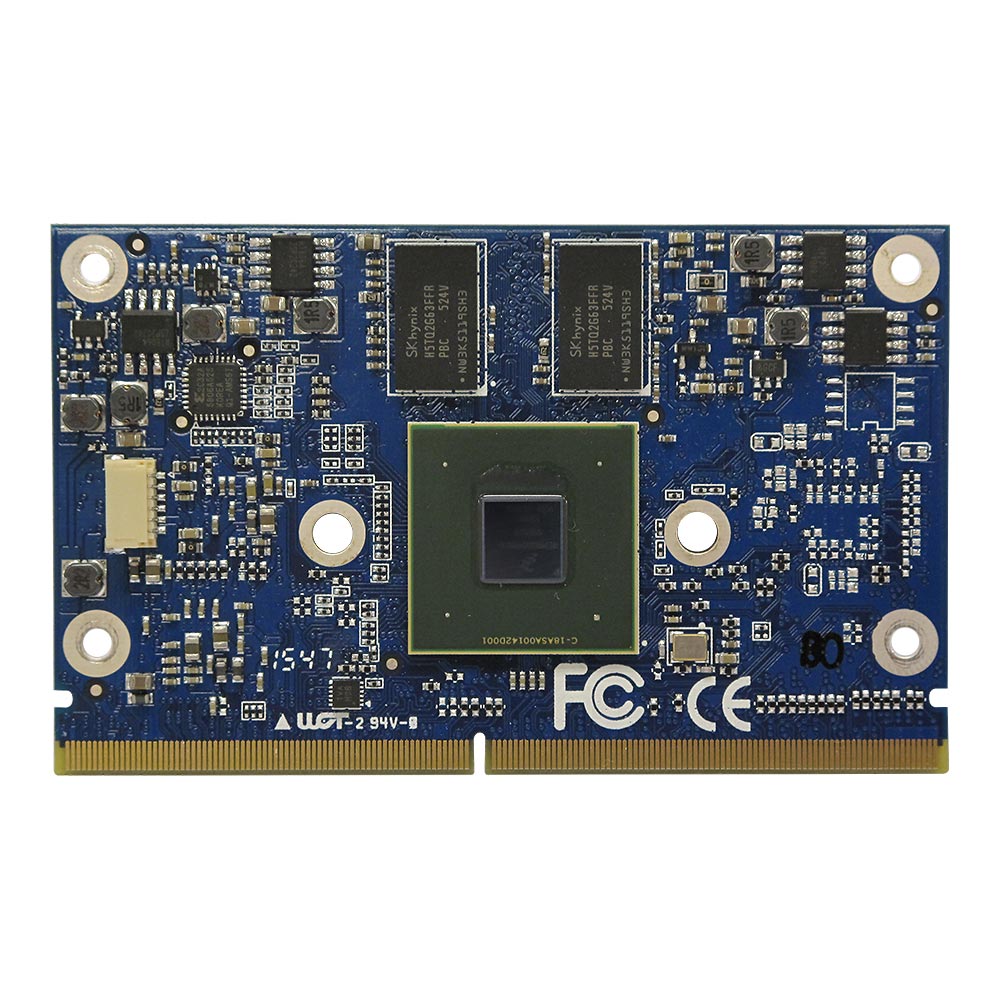

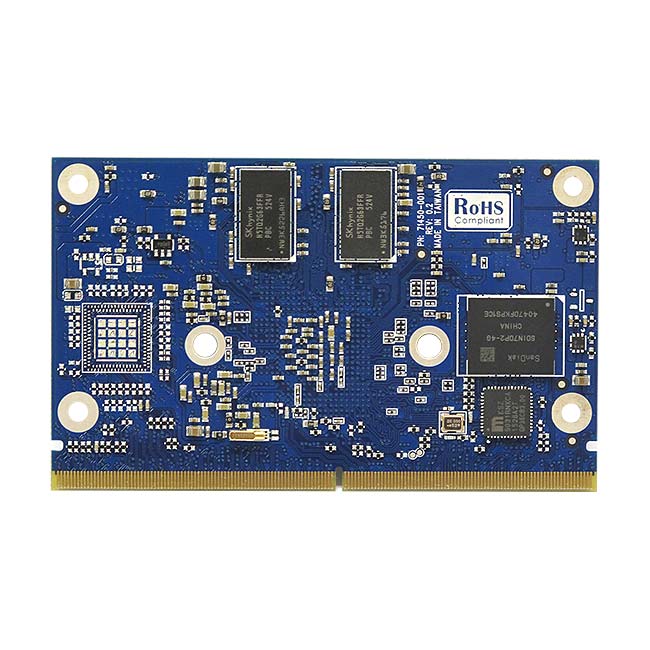

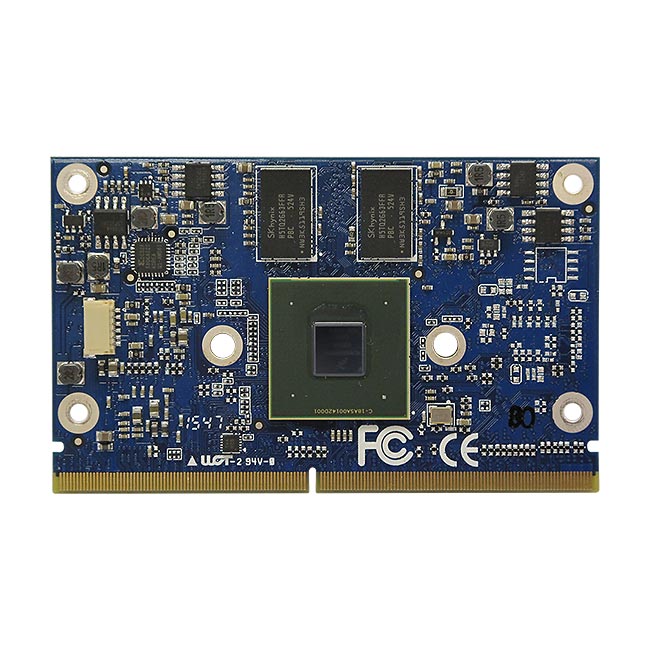

SMA-IMX6CQ and SMA-IMX6CS SMARC modules come standard with the i.MX6 i GHz Quad Core and Solo Core processor, 1 GB DDR3L, and 4 GB eMMC storage onboard. It is target to OEMs that require quick time to market with low design risk and cost effectiveness for their highly custom board design solutions.
| System |
| CPU |
SMA-IMX6CQ: NXP i.MX6 ARM Cortex A9 Quad Core 1GHz Processor Onboard
SMA-IMX6CS: NXP i.MX6 ARM Cortex A9 Solo Core 1GHz Processor Onboard |
| Graphics |
OpenGL® ES 2.0 and OpenVG™ 1.1 Hardware Accelerators & Multi-Format HD1080p Video Decoder and HD720p Video Encoder Engine |
| Memory |
1 GB Onboard DDR3 Memory (Up to 2 GB Max) |
| Flash |
4GB eMMC Onboard |
| Ethernet |
Micrel® KSZ9031 Gigabit Ethernet |
| USB |
1 x USB 2.0 Signal and 1 x USB OTG Signal |
| Display |
1 x LVDS Interface, 1 x MIPI-DSI Interface |
| Image Capture Interfaces |
1 x MIPI-CSI Interface |
| Serial Port |
2 x COM Interface |
| Additional Interfaces |
1 x Parallel LCD, 1 x Ethernet, 1 x SATA, 1 x PCIe x1 Channel, Optional 3 x PCIe x1 Channel, 1 x SPI, 2 x CAN Bus, 3 x I2C, 1 x I2S, 12 x GPiO, Module Input DC-in Power, GND Grounds |
| OS Support |
Android, Linux, Yocto |
| Mechanical and Environment |
| Thermal |
Supports Standard Temperature (Commercial Temp): 0°C ~ 60°C (32°F ~ 140°F) |
| Power Supply |
3V to 5.25V - Operates Directly from Single Level; Lithium Ion Cells, or Fixed 3.3V or 5V Power Supplies |
| Form Factor |
SMARC Module |
| Dimensions (L) x (W) |
3.23" x 1.97" (82mm x 50mm)
Compliance: SMARC (Smart Mobility Architecture), Specification by SGET |
| Weight |
0.8 oz |
* All product specifications and product images are subject to change without notice. Last update: 4/11/2018
| Model Name |
Description |
| SMA-IMX6CQ |
NXP i.MX6 1GHz Quad Core Processor Onboard, 1GB DDR3L, 4GB eMMC. Support Standard Temperture (Commercial Temp) |
| SMA-IMX6CS |
NXP i.MX6 1GHz Solo Core Processor Onboard, 1GB DDR3L, 4GB eMMC. Support Standard Temperture (Commercial Temp) |
