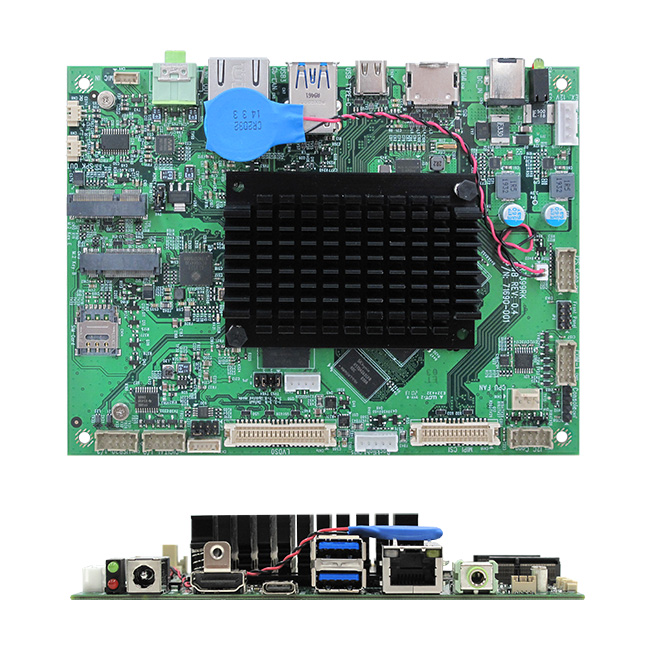

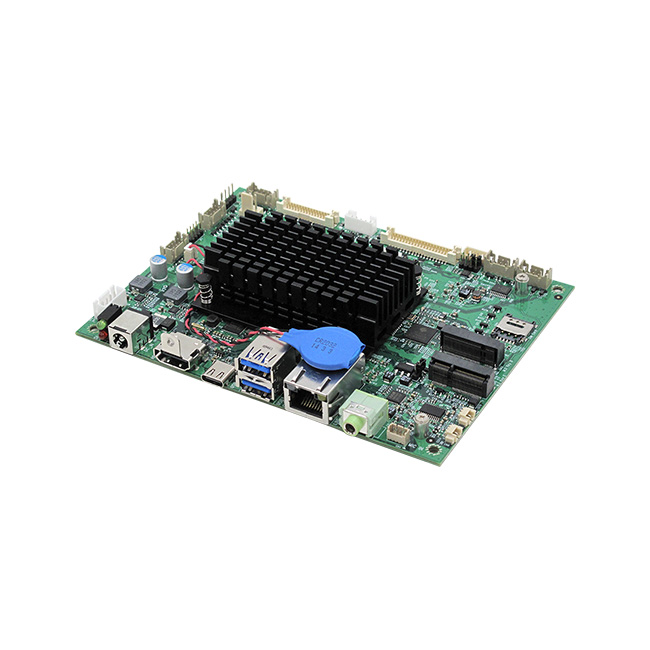

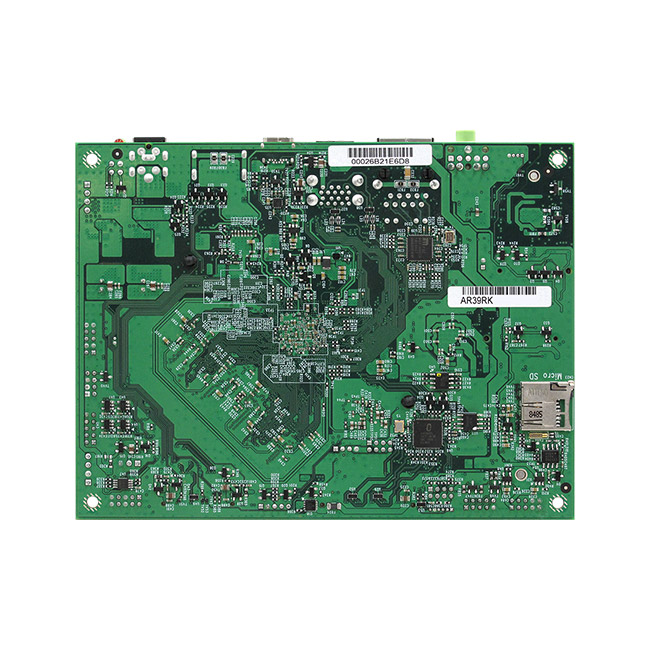

AR3399RK is ideal for a broad range of computer applications across multiple market segments, including informational or self-service kiosks, entertainment systems, retail display signage, casino gaming & lotto, or any other application requiring high definition video playback with a cost effective or low power computing device.
AR3399RK is an SBC meaning it’s ready-to-go and just requires power. As a BCM standard off-the-shelf product, it’s ready to deploy vs the typical SoM based ARM products requiring a separate and often custom carrier board. BCM’s SBC concept helps to reduced-design-risk and quicken time-to-market and more importantly time-to-revenue.
For those companies needing something special or unique, BCM provides cost effective and highly professional custom ODM/OEM design services for qualifying projects as a fraction of the cost of developing in-house.
| System |
| CPU |
Rockchip® RK3399 Dual Core Cortex-A72 + Quad Core Cortex-A53 (6-Core) SoC |
| System Memory |
2GB DDR3L Onboard (Expandable to 4GB Max) |
| Storage |
1 x uSD Card Socket
16GB eMMC Onboard |
| Audio |
Wolfson® WM8960 Ultra Low Power Audio Codec
TI® TPA2008D2 3W Stereo Class D Audio Amplifier |
| Ethernet |
Micrel® KSZ9031 Gigabit Ethernet |
| Expansion |
1 x 2230 M.2 E Key (with PCIe x1 Channel & USB Signal for WIFI/BT)
1 x 2242 M.2 B Key with Nano SIM Socket (USB 3.0 for Cellular Module) |
| OS Support |
Android 9
Linux Kernel 4.4 |
| Display |
| Video Interface |
HDMI, eDP/LVDS |
| Video Processing Unit |
ARM® Mali-T860MP4 Integrated Graphics |
| LVDS Bridge |
Chrontel® CH7511B eDP to LVDS Bridge |
| External I/O |
| HDMI |
1 x HDMI 1.4b Connector |
| USB |
2 x USB 3.0 Connectors
1 x USB 3.0 Gen 2 Type C OTG Connector |
| LAN |
1 x RJ-45 Connector |
| Audio |
1 x Line-Out Jack |
| DC-in |
1 x Barrel Type DC-In Connector |
| LED |
1 x Status LED |
| Internal I/O |
| COM |
1 x RS-232 COM |
| USB |
1 x USB 2.0 Header (2 Ports) |
| Camera Interface |
1 x MIPI-CSI Connector |
| Switch |
1 x Power/Reset Switch Header |
| GPIO |
1 x 8 bit GPIO Header |
| I2C |
1 x I2C Header |
| I2S |
1 x I2S Header |
| Audio |
1 x Stereo Speaker Header (Through Audio Amplifier)
1 x Mic-in/Line-in Header |
| Optional |
1 x Cable Type Battery, 1 x DC-In Header |
| Mechanical and Environment |
| Power |
12V DC Input |
| Operating Temperature |
0 ～ 60°C |
| Storage Temperature |
-20 ～ 80°C |
| Operating Humidity |
5 ～ 80％ Relative Humidity, Non-condensing |
| Storage Humidity |
5 ～ 90％ Relative Humidity, Non-condensing |
| Dimension |
4.4” x 5.7” (110mm x 145mm) |
| Certification Information |
CE, FCC Class B |
| Weight |
6 oz |
* All product specifications and product images are subject to change without notice. Last update: 2021/02/11
Product Change Notice (PCN)
| Date |
Description |
Download |
| Model Name |
Description |
| AR3399RK |
Rockchip® RK3399 Dual Core Cortex-A72 + Quad Core Cortex-A53 (6-Core) SoC ARM Motherboard |
